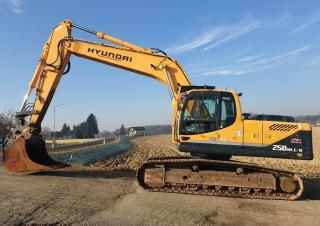

R 250 LC 9 Hyundai excavator specs & Dimensions (2010 - 2013)

Model rating
5,00 / 10

Hyundai R 250 LC 9 is a crawler excavator manufactured from 2010 to 2013. It has a weight of 25.2 tons and a track width of 600 mm…

Hyundai R 250 LC 9 is a crawler excavator manufactured from 2010 to 2013. It has a weight of 25.2 tons and a track width of 600 mm. The transport dimensions are 10 meters in length, 3.38 meters in width, and 3.59 meters in height. The machine features a tear-out force of 175 kN and comes equipped with air conditioning and an overload alert system.

Crawler Excavators Hyundai R 250 LC 9

Visit Hyundai live at

Technical specs - R 250 LC 9 Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25.2 t
Transport length
10 m
Transport width
3.38 m
Transport height
3.59 m
Bucket capacity
1.5 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.7 m
Dredging depth
7.55 m
Tear-out force
175 kN
Bucket width
1.61 m
Model series
9
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
146 kW
Displacement
6.7 l
Revolutions at max torque
1400 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hyundai R 250 LC 9 FAQ

When was the Hyundai R 250 LC 9 manufactured?

The Hyundai R 250 LC 9 was manufactured from 2010 to 2013.

How much does the Hyundai R 250 LC 9 weigh?

The Hyundai R 250 LC 9 weighs 25.2 tons.

What are the transport dimensions of the Hyundai R 250 LC 9 crawler excavator?

The Hyundai R 250 LC 9 has a transport length of 10 meters, a transport width of 3.38 meters, and a transport height of 3.59 meters.

What are the undercarriage specifications of the Hyundai R 250 LC 9?

The Hyundai R 250 LC 9 has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Hyundai R 250 LC 9?

The Hyundai R 250 LC 9 has a dredging depth of 7.55 meters, a maximum horizontal reach of 10.7 meters, and is equipped with a monobloc boom.

What are the power ratings of the Hyundai R 250 LC 9?

Power rating data is not available for the Hyundai R 250 LC 9 in the provided information.

What are the specifications of the primary work tool on the Hyundai R 250 LC 9?

The primary work tool of the Hyundai R 250 LC 9 has a bucket capacity of 1.5 cubic meters and a bucket width of 1.61 meters.

How much is a Hyundai R 250 LC 9 Crawler excavator (2010u20132013) worth?

The residual value of the Hyundai R 250 LC 9 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Reviews

Model rating
5,00 / 10
Quotation mark

Hyundai R 250 LC 9 user from Germany

+Relaiable +Very Good Equipments -High Fuel Consumption -No Senitive Joystick Steering
