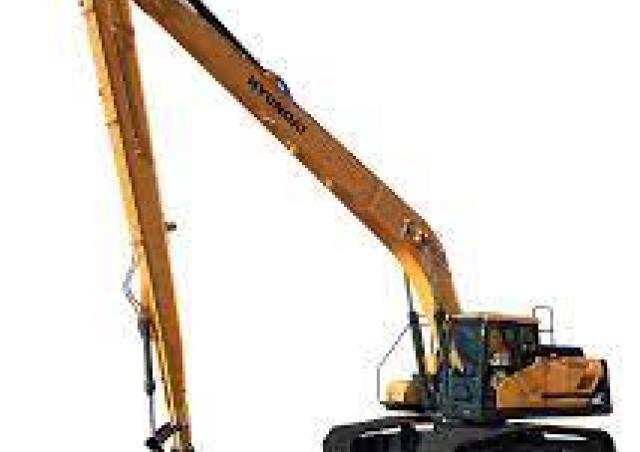

HX220LR Hyundai excavator specs & Dimensions (2016 - 2020)

Hyundai HX220LR is a Crawler Excavator manufactured from 2016 to 2020, with a weight of 24.82 t. It features a track width of 800 …

Hyundai HX220LR is a Crawler Excavator manufactured from 2016 to 2020, with a weight of 24.82 t. It features a track width of 800 mm, a transport length of 12.03 m, a transport width of 3.19 m, and a transport height of 3.21 m. The excavator has a tear-out force of 48.9 kN, a dredging depth of 11.76 m, and a maximum horizontal reach of 15.22 m. The bucket width is 0.945 m, with a bucket capacity of 0.52 m³. Special equipment includes air conditioning and an overload alert system.

Crawler Excavators Hyundai HX220LR

Visit Hyundai live at

Technical specs - HX220LR Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.82 t
Transport length
12.03 m
Transport width
3.19 m
Transport height
3.21 m
Bucket capacity
0.52 m³
Undercarriage
LC
Track width
800 mm
Boom
MB
Max. Reach horizontal
15.22 m
Dredging depth
11.76 m
Tear-out force
48.9 kN
Bucket width
0.945 m
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
136 kW
Displacement
6.7 l
Revolutions at max torque
1950 rpm
Max. torque
840/1500 Nm
No. of cylinders
6
Cylinder bore x stroke
107x124 mm
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Hyundai HX220LR FAQ

When was the Hyundai HX220LR manufactured?

The Hyundai HX220LR was manufactured from 2016 to 2020.

How much does the Hyundai HX220LR weigh?

The Hyundai HX220LR weighs 24.82 tons.

What are the transport dimensions of the Hyundai HX220LR crawler excavator?

The Hyundai HX220LR has transport dimensions of 12.03 meters in length, 3.19 meters in width, and 3.21 meters in height.

What are the undercarriage specifications of the Hyundai HX220LR?

The Hyundai HX220LR has a long undercarriage and a track width of 800 mm.

What are the excavation performance specifications of the Hyundai HX220LR?

The Hyundai HX220LR has a dredging depth of 11.76 meters, a maximum horizontal reach of 15.22 meters, and features a monobloc boom.

What are the power ratings of the Hyundai HX220LR?

The source data does not provide power rating information for the Hyundai HX220LR.

What are the bucket specifications of the Hyundai HX220LR crawler excavator?

The Hyundai HX220LR has a bucket capacity of 0.52 cubic meters and a bucket width of 0.945 meters.
