HX220AL Hyundai excavator specs & Dimensions (2020 - 2026)

Hyundai HX220AL is a Crawler Excavator manufactured since 2020, with a weight of 22.1 tons. It features a track width of 600 mm, a…

Hyundai HX220AL is a Crawler Excavator manufactured since 2020, with a weight of 22.1 tons. It features a track width of 600 mm, a transport length of 9.65 meters, a transport width of 2.99 meters, and a transport height of 3.21 meters. The excavator has a tear-out force of 144.2 kN, a dredging depth of 5.82 meters, and a maximum horizontal reach of 9.14 meters. The bucket width is 1.07 meters, with a capacity ranging from 0.8 m³ to 1.34 m³. Special equipment includes air conditioning and an overload alert system.

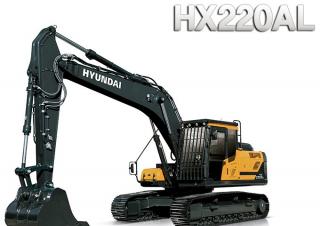

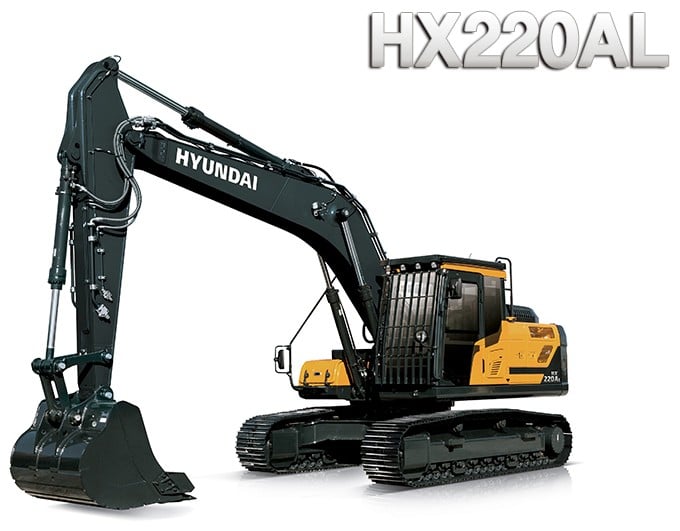

Crawler Excavators Hyundai HX220AL
Crawler Excavators Hyundai HX220AL
Crawler Excavators Hyundai HX220AL
Crawler Excavators Hyundai HX220AL
Crawler Excavators Hyundai HX220AL
Crawler Excavators Hyundai HX220AL

Visit Hyundai live at

Technical specs - HX220AL Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.1 t
Transport length
9.65 m
Transport width
2.99 m
Transport height
3.21 m
Bucket capacity
0.8 m³
Bucket capacity min.
0.8 m³
Bucket capacity max.
1.34 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.14 m
Dredging depth
5.82 m
Tear-out force
144.2 kN
Bucket width
1.07 m
Engine manuf.
Cummins
Engine type
B6.7
Engine power
130 kW
Displacement
6.7 l
Emission level
V

More technical details, like: undercarriage, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hyundai HX220AL FAQ

When was the Hyundai HX220AL manufactured?

The Hyundai HX220AL was first produced in 2020.

How much does the Hyundai HX220AL weigh?

The Hyundai HX220AL weighs 22.1 tons.

What are the transport dimensions of the Hyundai HX220AL crawler excavator?

The Hyundai HX220AL has a transport length of 9.65 meters, a transport width of 2.99 meters, and a transport height of 3.21 meters.

What is the track width of the Hyundai HX220AL's undercarriage?

The Hyundai HX220AL has a track width of 600 mm.

What are the excavation performance specifications of the Hyundai HX220AL?

The Hyundai HX220AL has a dredging depth of 5.82 meters, a maximum horizontal reach of 9.14 meters, and features a monobloc boom.

What is the tear-out force of the Hyundai HX220AL, given that no power ratings are provided?

The Hyundai HX220AL has a tear-out force of 144.2 kN. No power ratings are available in the provided data.

What are the specifications of the bucket on the Hyundai HX220AL crawler excavator?

The Hyundai HX220AL has a bucket with a capacity ranging from 0.8 to 1.34 cubic meters and a width of 1.07 meters.

How much is a Hyundai HX220AL Crawler excavator (2020u20132025) worth?

The residual value of the Hyundai HX220AL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
