HX210AL Hyundai excavator specs & Dimensions (2021 - 2026)

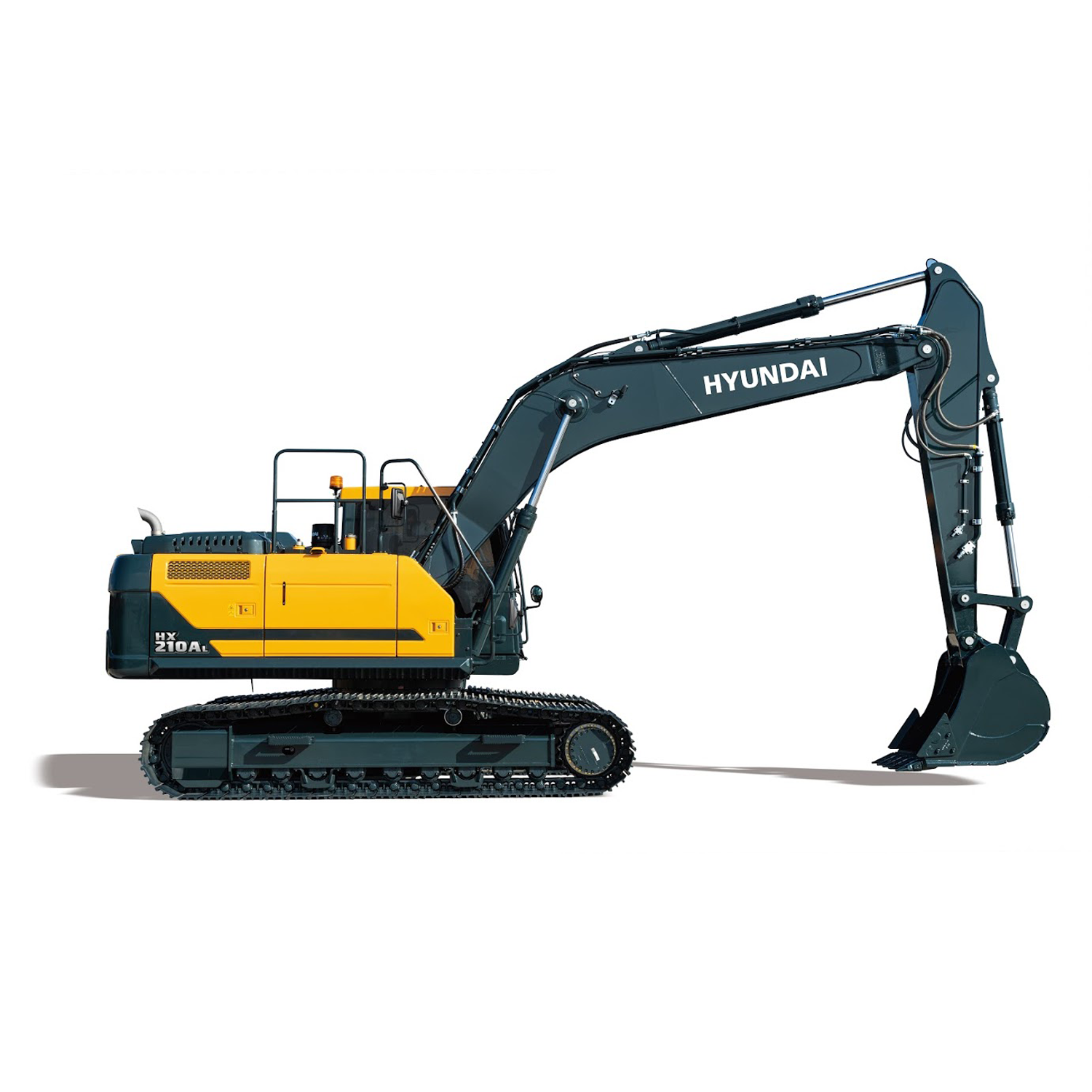

Hyundai HX210AL is a Crawler Excavator manufactured since 2021. It has a weight of 22 tons and a track width of 600 mm. The transp…

Hyundai HX210AL is a Crawler Excavator manufactured since 2021. It has a weight of 22 tons and a track width of 600 mm. The transport dimensions are 9.53 meters in length, 2.8 meters in width, and 3 meters in height. The machine features a tear-out force of 133.4 kN, a dredging depth of 6.73 meters, and a maximum horizontal reach of 9.82 meters. The bucket width is 1.08 meters with a capacity of 0.92 cubic meters.

Crawler Excavators Hyundai HX210AL
Crawler Excavators Hyundai HX210AL
Crawler Excavators Hyundai HX210AL
Crawler Excavators Hyundai HX210AL
Crawler Excavators Hyundai HX210AL
Crawler Excavators Hyundai HX210AL
Crawler Excavators Hyundai HX210AL
Crawler Excavators Hyundai HX210AL

Visit Hyundai live at

Technical specs - HX210AL Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22 t
Transport length
9.53 m
Transport width
2.8 m
Transport height
3 m
Bucket capacity
0.92 m³
Track width
600 mm
Max. Reach horizontal
9.82 m
Dredging depth
6.73 m
Tear-out force
133.4 kN
Bucket width
1.08 m

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hyundai HX210AL FAQ

When was the Hyundai HX210AL manufactured?

The Hyundai HX210AL was first produced in 2021.

How much does the Hyundai HX210AL weigh?

The Hyundai HX210AL weighs 22 tons.

What are the transport dimensions of the Hyundai HX210AL?

The Hyundai HX210AL has a transport length of 9.53 meters, a transport width of 2.8 meters, and a transport height of 3 meters.

What is the track width of the Hyundai HX210AL's undercarriage?

The Hyundai HX210AL has a track width of 600 mm.

What are the dredging depth and maximum horizontal reach of the Hyundai HX210AL?

The Hyundai HX210AL has a dredging depth of 6.73 meters and a maximum horizontal reach of 9.82 meters.

What is the tear-out force of the Hyundai HX210AL?

The Hyundai HX210AL has a tear-out force of 133.4 kN. No power rating data is available for this model.

What are the bucket specifications of the Hyundai HX210AL crawler excavator?

The Hyundai HX210AL crawler excavator has a bucket capacity of 0.92 cubic meters and a bucket width of 1.08 meters.

How much is a Hyundai HX210AL Crawler excavator (2021u20132025) worth?

The residual value of the Hyundai HX210AL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
