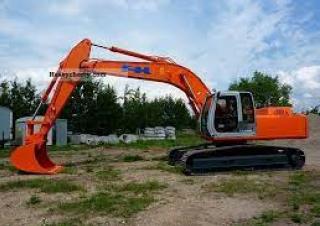

EX 255 ELM Fiat Kobelco excavator specs & Dimensions (2002 - 2002)
-
Model rating
- 9,00 / 10
Technical specs - EX 255 ELM Fiat Kobelco
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 25 t
- Transport length
- 10.17 m
- Transport width
- 2.99 m
- Transport height
- 3.09 m
- Bucket capacity
- 1.4 m³
- Track width
- 600 mm
- Boom
- MB
- Engine manuf.
- Cummins
- Engine type
- 6CT8.3
- Engine power
- 125 kW
- Displacement
- 8.3 l
- Revolutions at max torque
- 2300 rpm
More technical details, like: bucket capacity min., bucket capacity max., undercarriage, max. reach horizontal, dredging depth, tear-out force, bucket width, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket
Special equipment
- Diesel particulate filter
-
No
- Track adjustment
-
No
- Blade
-
No
- Cabin adjustment
-
No
- Overload alert
-
Yes
- Material Handling Excavator
-
No
- Aircondition
-
Yes
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
Download datasheets (PDF)
Fiat Kobelco EX 255 ELM FAQ
How much does the Fiat Kobelco EX 255 ELM weigh?
What are the transport dimensions of the Fiat Kobelco EX 255 ELM?
What is the track width of the undercarriage on the Fiat Kobelco EX 255 ELM?
What type of boom does the Fiat Kobelco EX 255 ELM use for excavation?
What is the bucket capacity of the Fiat Kobelco EX 255 ELM?
How much is a Fiat Kobelco EX 255 ELM Crawler excavator (2002u20132002) worth?
