EX 215 Fiat-Hitachi excavator specs & Dimensions (1998 - 2002)

Model rating
6,83 / 10

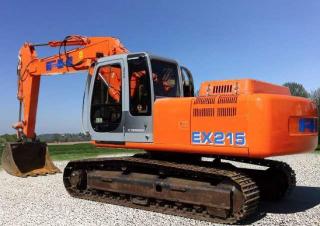

Fiat-Hitachi EX 215 is a crawler excavator manufactured from 1998 to 2002, with a weight of 21.4 tons. It features a track width o…

Fiat-Hitachi EX 215 is a crawler excavator manufactured from 1998 to 2002, with a weight of 21.4 tons. It features a track width of 600 mm, a transport length of 9.5 meters, a transport width of 2.8 meters, and a transport height of 2.97 meters.

Crawler Excavators Fiat-Hitachi EX 215

Technical specs - EX 215 Fiat-Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.4 t
Transport length
9.5 m
Transport width
2.8 m
Transport height
2.97 m
Bucket capacity
1.31 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Engine manuf.
Fiat-Iveco
Engine type
8065.25 T
Engine power
107 kW

More technical details, like: bucket capacity min., bucket capacity max., max. reach horizontal, dredging depth, tear-out force, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: bucket capacity min., bucket capacity max., max. reach horizontal, dredging depth, tear-out force, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Fiat-Hitachi EX 215 FAQ

When was the Fiat-Hitachi EX 215 manufactured?

The Fiat-Hitachi EX 215 was manufactured from 1998 to 2002.

How much does the Fiat-Hitachi EX 215 weigh?

The Fiat-Hitachi EX 215 weighs 21.4 tons.

What are the transport dimensions of the Fiat-Hitachi EX 215?

The Fiat-Hitachi EX 215 has a transport length of 9.5 meters, a transport width of 2.8 meters, and a transport height of 2.97 meters.

What are the undercarriage specifications of the Fiat-Hitachi EX 215?

The Fiat-Hitachi EX 215 has a long undercarriage with a track width of 600 mm.

What type of boom does the Fiat-Hitachi EX 215 use?

The Fiat-Hitachi EX 215 uses a monobloc boom.

What is the bucket capacity of the Fiat-Hitachi EX 215?

The bucket capacity of the Fiat-Hitachi EX 215 is 1.31 cubic meters.
