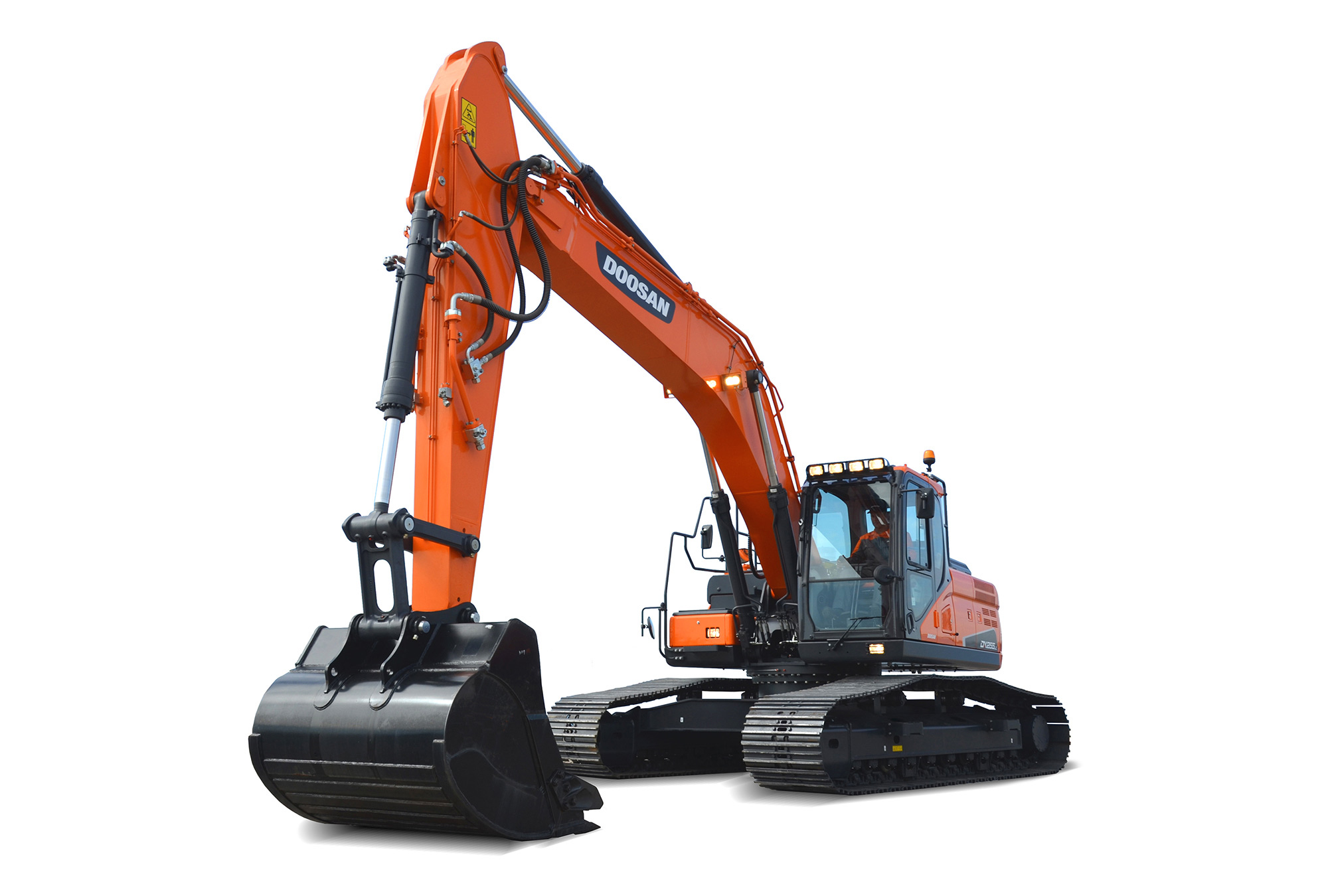

DX255LC Doosan excavator specs & Dimensions (2019 - 2021)

Doosan DX255LC is a crawler excavator manufactured from 2019 to 2021. It has a weight of 24 tons and a track width of 600 mm. The …

Doosan DX255LC is a crawler excavator manufactured from 2019 to 2021. It has a weight of 24 tons and a track width of 600 mm. The transport dimensions are 10 meters in length, 3 meters in width, and 3 meters in height. The excavator features a tear-out force of 181 kN, a dredging depth of 6 meters, and a maximum horizontal reach of 10 meters. The bucket width is 1 meter with a capacity of 1 cubic meter. Special equipment includes air conditioning.

Crawler Excavators Doosan DX255LC

Technical specs - DX255LC Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.6 t
Transport length
10.1 m
Transport width
3.2 m
Transport height
3.1 m
Bucket capacity
1.1 m³
Track width
600 mm
Max. Reach horizontal
10.01 m
Dredging depth
6.82 m
Tear-out force
181 kN
Bucket width
1.38 m
Model series
DX
Engine manuf.
Doosan
Engine type
DL06
Engine power
129 kW
Displacement
5.9 l
Revolutions at max torque
1400 rpm
Max. torque
765 Nm
No. of cylinders
6
Cylinder bore x stroke
100 x 125 mm
Emission level
T3

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX255LC FAQ

When was the Doosan DX255LC manufactured?

The Doosan DX255LC was manufactured from 2019 to 2021.

How much does the Doosan DX255LC weigh?

The Doosan DX255LC weighs 24.6 tons.

What are the transport dimensions of the Doosan DX255LC crawler excavator?

The Doosan DX255LC has a transport length of 10.1 meters, a transport width of 3.2 meters, and a transport height of 3.1 meters.

What is the track width of the Doosan DX255LC's undercarriage?

The Doosan DX255LC has a track width of 600 mm.

What are the dredging depth and maximum horizontal reach of the Doosan DX255LC?

The Doosan DX255LC has a dredging depth of 6.82 meters and a maximum horizontal reach of 10.01 meters.

What are the power ratings of the Doosan DX255LC?

The source data does not provide power rating information for the Doosan DX255LC.

What are the specifications of the primary work tool on the Doosan DX255LC?

The primary work tool of the Doosan DX255LC has a bucket capacity of 1.1 cubic meters and a bucket width of 1.38 meters.

How much is a Doosan DX255LC Crawler excavator (2019u20132021) worth?

The residual value of the Doosan DX255LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
