DX 255 LC Doosan excavator specs & Dimensions (2007 - 2013)

Doosan DX 255 LC is a crawler excavator manufactured from 2007 to 2013, with a weight of 24.6 tons. It features a track width of 6…

Doosan DX 255 LC is a crawler excavator manufactured from 2007 to 2013, with a weight of 24.6 tons. It features a track width of 600 mm, a transport length of 10.055 meters, a transport width of 3.2 meters, and a transport height of 2.97 meters. The machine has a tear-out force of 143.3 kN.

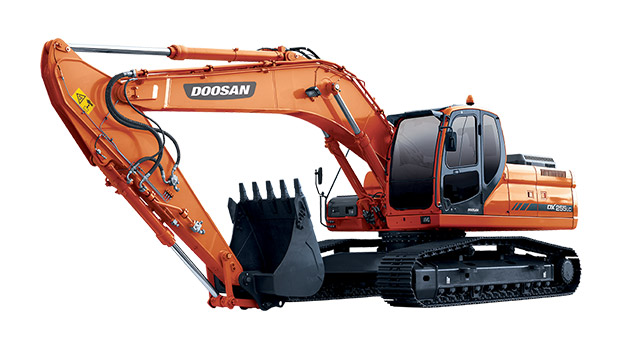

Crawler Excavators Doosan DX 255 LC
Crawler Excavators Doosan DX 255 LC
Crawler Excavators Doosan DX 255 LC
Crawler Excavators Doosan DX 255 LC

Technical specs - DX 255 LC Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.6 t
Transport length
10.055 m
Transport width
3.2 m
Transport height
2.97 m
Bucket capacity
1.1 m³
Track width
600 mm
Max. Reach horizontal
10.195 m
Dredging depth
6.815 m
Tear-out force
143.3 kN
Model series
DX
Engine manuf.
Doosan
Engine type
DL 06
Engine power
129 kW
Displacement
5.89 l
Revolutions at max torque
1900 rpm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX 255 LC FAQ

When was the Doosan DX 255 LC manufactured?

The Doosan DX 255 LC was manufactured from 2007 to 2013.

How much does the Doosan DX 255 LC weigh?

The Doosan DX 255 LC weighs 24.6 tons.

What are the transport dimensions of the Doosan DX 255 LC crawler excavator?

The Doosan DX 255 LC has a transport length of 10.06 meters, a width of 3.2 meters, and a height of 2.97 meters.

What is the track width of the Doosan DX 255 LC's undercarriage?

The Doosan DX 255 LC has a track width of 600 mm.

What are the dredging depth and maximum horizontal reach of the Doosan DX 255 LC?

The Doosan DX 255 LC has a dredging depth of 6.815 meters and a maximum horizontal reach of 10.195 meters.

What is the tear-out force of the Doosan DX 255 LC?

The Doosan DX 255 LC has a tear-out force of 143.3 kN.

What is the bucket capacity of the Doosan DX 255 LC?

The Doosan DX 255 LC has a bucket capacity of 1.1 cubic meters.
