DX 225 LC Doosan excavator specs & Dimensions (2007 - 2013)

Model rating
8,00 / 10

Doosan DX 225 LC is a crawler excavator manufactured from 2007 to 2013, with a weight of 21.5 tons. It features a track width of 6…

Doosan DX 225 LC is a crawler excavator manufactured from 2007 to 2013, with a weight of 21.5 tons. It features a track width of 600 mm, a transport length of 9.49 meters, a transport width of 2.9 meters, and a transport height of 3 meters. The excavator is equipped with air conditioning and an overload alert system.

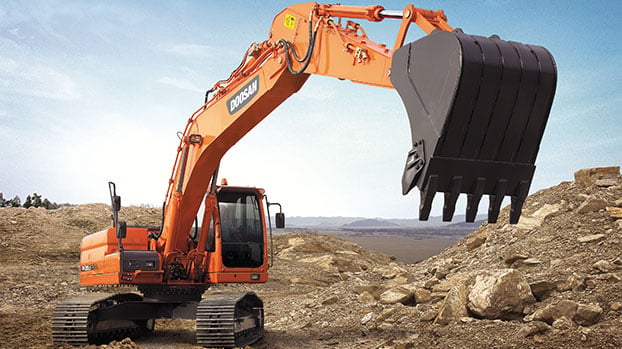

Crawler Excavators Doosan DX 225 LC
Crawler Excavators Doosan DX 225 LC
Crawler Excavators Doosan DX 225 LC
Crawler Excavators Doosan DX 225 LC
Crawler Excavators Doosan DX 225 LC
Crawler Excavators Doosan DX 225 LC
Crawler Excavators Doosan DX 225 LC
Crawler Excavators Doosan DX 225 LC

Technical specs - DX 225 LC Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.5 t
Transport length
9.49 m
Transport width
2.9 m
Transport height
3 m
Bucket capacity
1.28 m³
Undercarriage
LC
Track width
600 mm
Boom
MB/VA
Max. Reach horizontal
10.34 m
Dredging depth
6.6 m
Tear-out force
15.2 kN
Model series
DX
Engine manuf.
Doosan
Engine type
DL 06
Engine power
110 kW
Displacement
5.89 l
Revolutions at max torque
1900 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX 225 LC FAQ

When was the Doosan DX 225 LC manufactured?

The Doosan DX 225 LC was manufactured from 2007 to 2013.

How much does the Doosan DX 225 LC weigh?

The Doosan DX 225 LC weighs 21.5 tons.

What are the transport dimensions of the Doosan DX 225 LC?

The Doosan DX 225 LC has a transport length of 9.49 meters, a width of 2.9 meters, and a height of 3 meters.

What are the undercarriage specifications of the Doosan DX 225 LC?

The Doosan DX 225 LC has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Doosan DX 225 LC?

The Doosan DX 225 LC has a dredging depth of 6.6 meters, a maximum horizontal reach of 10.34 meters, and features a Monobloc boom and an Adjustable boom.

What is the tear-out force of the Doosan DX 225 LC?

The Doosan DX 225 LC has a tear-out force of 15.2 kN.

What is the bucket capacity of the Doosan DX 225 LC?

The Doosan DX 225 LC has a bucket capacity of 1.28 cubic meters.

How much is a Doosan DX 225 LC Crawler excavator (2007u20132013) worth?

The residual value of the Doosan DX 225 LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
