DX235LCR Doosan excavator specs & Dimensions (2010 - 2017)

Model rating
8,00 / 10

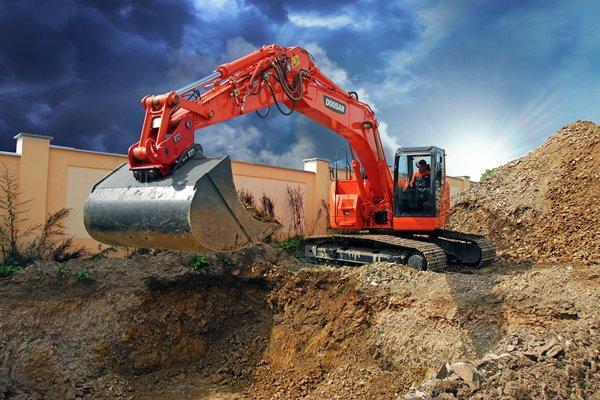

Doosan DX235LCR is a Crawler Excavator manufactured from 2010 to 2017, with a weight of 23.7 tons. It features a track width of 60…

Doosan DX235LCR is a Crawler Excavator manufactured from 2010 to 2017, with a weight of 23.7 tons. It features a track width of 600 mm, a transport length of 8.96 meters, a transport width of 2.99 meters, and a transport height of 3.08 meters. The machine has a tear-out force of 149 kN and comes equipped with air conditioning and an overload alert system.

Crawler Excavators Doosan DX235LCR
Crawler Excavators Doosan DX235LCR
Crawler Excavators Doosan DX235LCR
Crawler Excavators Doosan DX235LCR
Crawler Excavators Doosan DX235LCR
Crawler Excavators Doosan DX235LCR
Crawler Excavators Doosan DX235LCR
Crawler Excavators Doosan DX235LCR
Crawler Excavators Doosan DX235LCR
Crawler Excavators Doosan DX235LCR
Crawler Excavators Doosan DX235LCR
Crawler Excavators Doosan DX235LCR

Technical specs - DX235LCR Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.7 t
Transport length
8.96 m
Transport width
2.99 m
Transport height
3.08 m
Bucket capacity
1.4 m³
Undercarriage
LC
Track width
600 mm
Boom
MB/VA
Max. Reach horizontal
10.67 m
Dredging depth
8.01 m
Tear-out force
149 kN
Model series
DX
Engine manuf.
Doosan
Engine type
DL 06
Engine power
125 kW
Displacement
5.89 l
Revolutions at max torque
1900 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX235LCR FAQ

When was the Doosan DX235LCR manufactured?

The Doosan DX235LCR was manufactured from 2010 to 2017.

How much does the Doosan DX235LCR weigh?

The Doosan DX235LCR weighs 23.7 tons.

What are the transport dimensions of the Doosan DX235LCR crawler excavator?

The Doosan DX235LCR has a transport length of 8.96 meters, a transport width of 2.99 meters, and a transport height of 3.08 meters.

What are the undercarriage specifications of the Doosan DX235LCR?

The Doosan DX235LCR has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Doosan DX235LCR?

The Doosan DX235LCR has a dredging depth of 8.01 meters, a maximum horizontal reach of 10.67 meters, and features a monobloc boom and an adjustable boom.

What is the power rating of the Doosan DX235LCR?

The source data does not provide any power rating information for the Doosan DX235LCR.

What is the bucket capacity of the Doosan DX235LCR excavator?

The Doosan DX235LCR excavator has a bucket capacity of 1.4 cubic meters.

How much is a Doosan DX235LCR Crawler excavator (2010u20132017) worth?

The residual value of the Doosan DX235LCR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
