DX235LC-7 Doosan excavator specs & Dimensions (2021 - 2023)

Doosan DX235LC-7 is a Crawler Excavator manufactured since 2021, with a weight of 23.2 tons. It features a track width of 600 mm, …

Doosan DX235LC-7 is a Crawler Excavator manufactured since 2021, with a weight of 23.2 tons. It features a track width of 600 mm, a transport length of 9.532 meters, a transport width of 2.99 meters, and a transport height of 2.854 meters. The machine has a dredging depth of 6.095 meters and a maximum horizontal reach of 9.465 meters. The bucket width is 1.309 meters, with a capacity ranging from 0.51 m³ to 1.32 m³, and a standard capacity of 1.05 m³. Special equipment includes air conditioning and an overload alert system.

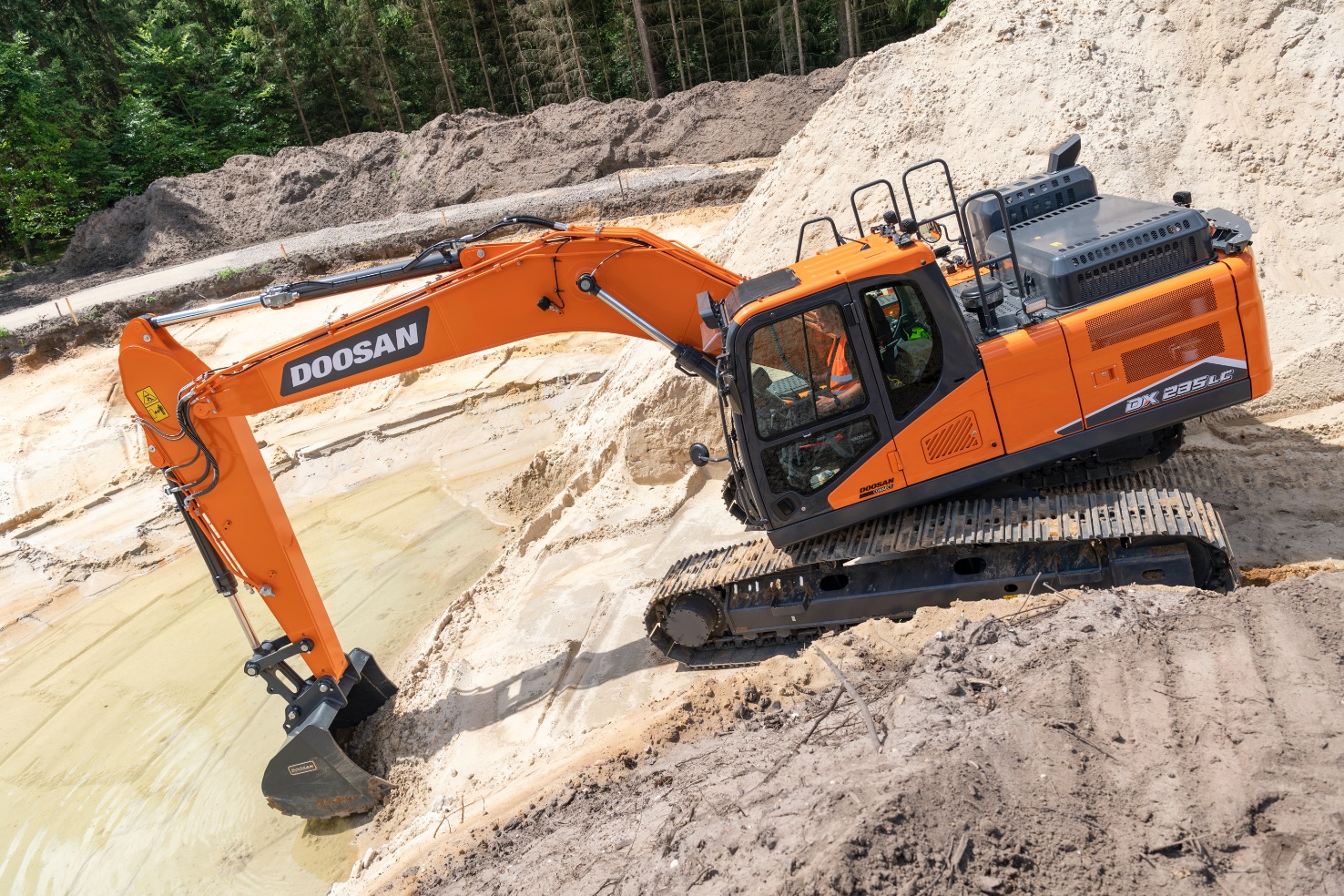

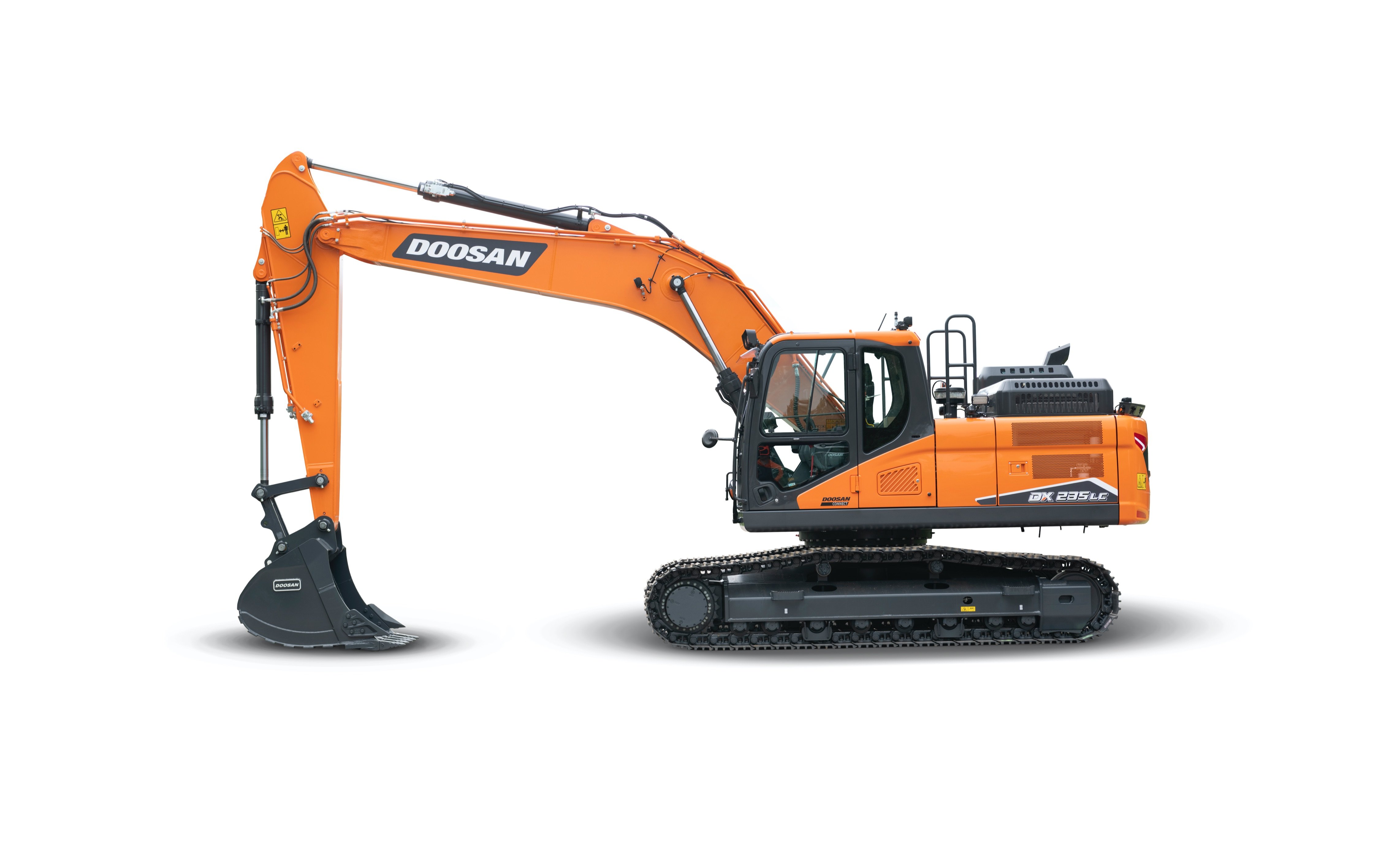

Crawler Excavators Doosan DX235LC-7
Crawler Excavators Doosan DX235LC-7
Crawler Excavators Doosan DX235LC-7
Crawler Excavators Doosan DX235LC-7
Crawler Excavators Doosan DX235LC-7
Crawler Excavators Doosan DX235LC-7
Crawler Excavators Doosan DX235LC-7
Crawler Excavators Doosan DX235LC-7
Crawler Excavators Doosan DX235LC-7
Crawler Excavators Doosan DX235LC-7

Technical specs - DX235LC-7 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.2 t
Transport length
9.53 m
Transport width
2.99 m
Transport height
2.85 m
Bucket capacity
1.05 m³
Bucket capacity min.
0.51 m³
Bucket capacity max.
1.32 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.465 m
Dredging depth
6.095 m
Bucket width
1.309 m
Model series
DX
Engine manuf.
Doosan
Engine type
DL06P
Engine power
124 kW
Displacement
5.89 l
No. of cylinders
6
Cylinder bore x stroke
100x125 mm
Emission level
V

More technical details, like: tear-out force, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX235LC-7 FAQ

When was the Doosan DX235LC-7 manufactured?

The Doosan DX235LC-7 was manufactured from 2021 to 2023.

How much does the Doosan DX235LC-7 weigh?

The Doosan DX235LC-7 weighs 23.2 tons.

What are the transport dimensions of the Doosan DX235LC-7?

The Doosan DX235LC-7 has a transport length of 9.53 meters, a transport width of 2.99 meters, and a transport height of 2.85 meters.

What are the undercarriage specifications of the Doosan DX235LC-7?

The Doosan DX235LC-7 has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Doosan DX235LC-7?

The Doosan DX235LC-7 has a dredging depth of 6.095 meters, a maximum horizontal reach of 9.465 meters, and is equipped with a monobloc boom.

What are the specifications of the primary work tool bucket on the Doosan DX235LC-7?

The Doosan DX235LC-7's primary work tool bucket has a capacity of 1.05 mu00b3, with a maximum capacity of 1.32 mu00b3, a minimum capacity of 0.51 mu00b3, and a bucket width of 1.309 meters.
