DX200LC-7 Develon excavator specs & Dimensions (2024 - 2026)

Weight: 23t – Transport length: 9.6m – Transport width: 3.19m – Transport height: 3.105m – Bucket capacity: 1.05m³ – Undercarriage…

Weight: 23t – Transport length: 9.6m – Transport width: 3.19m – Transport height: 3.105m – Bucket capacity: 1.05m³ – Undercarriage: LC

Check out detailed specifications, information and technical data for Develon DX200LC-7 excavator manufactured between 2024 - 2026. Get more in-depth insight with Develon DX200LC-7 digger specifications. See information, like: Weight: 23t – Transport length: 9.6m – Transport width: 3.19m – Transport height: 3.105m – Bucket capacity: 1.05m³ – Undercarriage: LC and more.

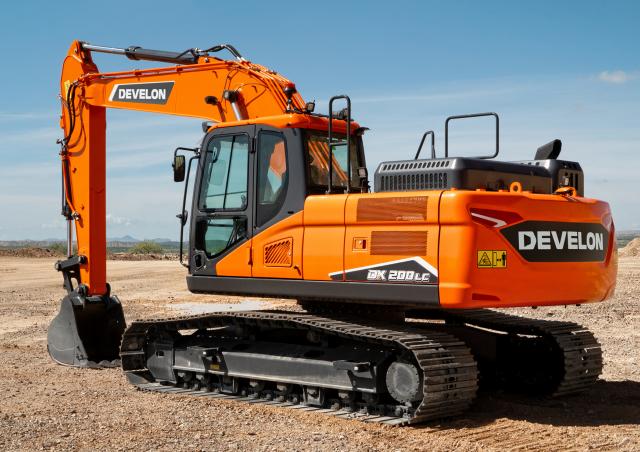

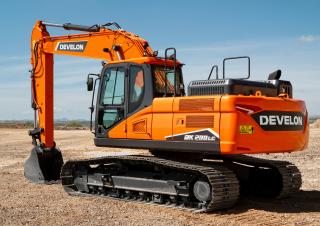

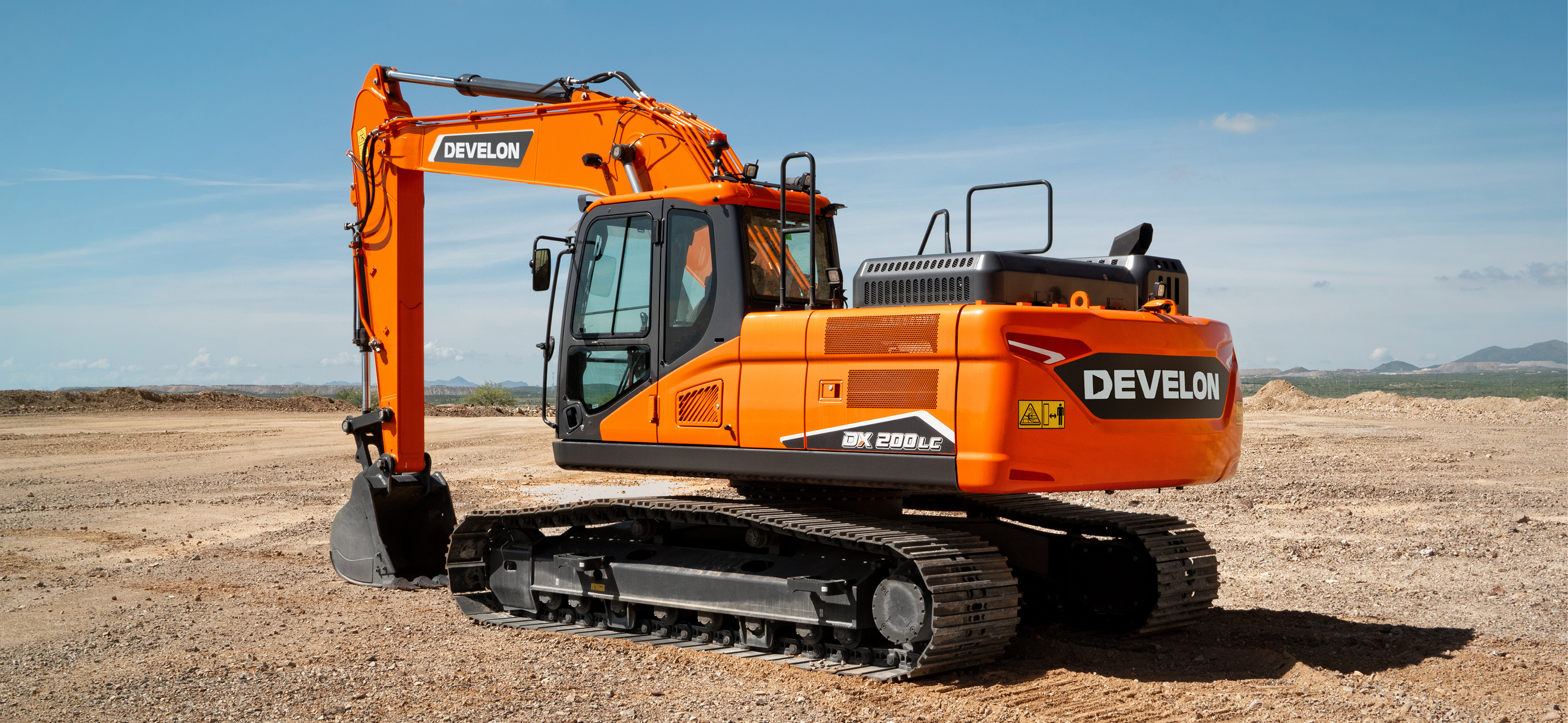

Crawler Excavators Develon DX200LC-7

Visit Develon live at

Technical specs - DX200LC-7 Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23 t
Transport length
9.6 m
Transport width
3.19 m
Transport height
3.105 m
Bucket capacity
1.05 m³
Undercarriage
LC
Track width
800 mm
Boom
MB
Max. Reach horizontal
9.28 m
Dredging depth
6.105 m
Model series
DX
Engine manuf.
Perkins
Engine type
1204J
Engine power
110 kW
Displacement
4.4 l
Revolutions at max torque
1400 rpm
Max. torque
560 Nm
No. of cylinders
4
Cylinder bore x stroke
105x127 mm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, bucket width, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No
