ZG3235-9C Changlin excavator specs & Dimensions (2017 - 2026)

Changlin ZG3235-9C is a Crawler Excavator manufactured since 2017. It has a weight of 23 tons and a track width of 600 mm. The tra…

Changlin ZG3235-9C is a Crawler Excavator manufactured since 2017. It has a weight of 23 tons and a track width of 600 mm. The transport dimensions are 9.84 meters in length, 2.98 meters in width, and 3.16 meters in height. The dredging depth is 6.92 meters, with a maximum horizontal reach of 10.18 meters. The bucket capacity is 1.2 cubic meters.

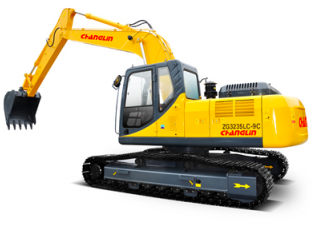

Crawler Excavators Changlin ZG3235-9C

Technical specs - ZG3235-9C Changlin

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23 t
Transport length
9.84 m
Transport width
2.98 m
Transport height
3.16 m
Bucket capacity
1.2 m³
Undercarriage
SL
Track width
600 mm
Max. Reach horizontal
10.18 m
Dredging depth
6.92 m
Model series
ZG
Engine manuf.
Cummins
Engine type
6BTAA5.9
Engine power
133 kW
Displacement
5.88 l
Revolutions at max torque
1500 rpm
Max. torque
708 Nm
No. of cylinders
6

More technical details, like: bucket capacity min., bucket capacity max., boom, tear-out force, bucket width, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Changlin ZG3235-9C FAQ

When was the Changlin ZG3235-9C manufactured?

The Changlin ZG3235-9C was first produced in 2017.

How much does the Changlin ZG3235-9C weigh?

The Changlin ZG3235-9C weighs 23 tons.

What are the transport dimensions of the Changlin ZG3235-9C crawler excavator?

The Changlin ZG3235-9C has a transport length of 9.84 meters, a transport width of 2.98 meters, and a transport height of 3.16 meters.

What are the undercarriage specifications of the Changlin ZG3235-9C?

The Changlin ZG3235-9C has a standard undercarriage with a track width of 600 mm.

What is the excavation performance of the Changlin ZG3235-9C?

The Changlin ZG3235-9C has a dredging depth of 6.92 meters and a maximum horizontal reach of 10.18 meters.

What is the bucket capacity of the Changlin ZG3235-9C?

The bucket capacity of the Changlin ZG3235-9C is 1.2 cubic meters.

How much is a Changlin ZG3235-9C Crawler excavator (2017u20132025) worth?

The residual value of the Changlin ZG3235-9C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
