324E LN Caterpillar excavator specs & Dimensions (2012 - 2018)

Model rating
10,00 / 10

Caterpillar 324E LN is a crawler excavator manufactured from 2012 to 2018. It has a weight of 25.13 tons and a track width of 600 …

Caterpillar 324E LN is a crawler excavator manufactured from 2012 to 2018. It has a weight of 25.13 tons and a track width of 600 mm. The transport dimensions are 10.06 meters in length, 2.99 meters in width, and 3.19 meters in height. The tear-out force is 137 kN. Special equipment includes air conditioning and track adjustment.

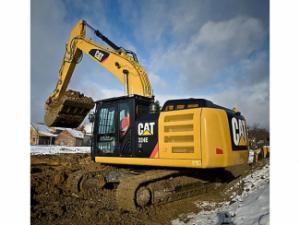

Crawler Excavators Caterpillar 324E LN
Crawler Excavators Caterpillar 324E LN
Crawler Excavators Caterpillar 324E LN
Crawler Excavators Caterpillar 324E LN

Technical specs - 324E LN Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25.13 t
Transport length
10.06 m
Transport width
2.99 m
Transport height
3.19 m
Bucket capacity
1.4 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.11 m
Dredging depth
6.81 m
Tear-out force
137 kN
Engine manuf.
Caterpillar
Engine type
C7.1 Acert
Engine power
151 kW
Displacement
7 l
Revolutions at max torque
1800 rpm

Find other specs and information for Caterpillar 324E LN here. The full specification list contains additional data such as: Bucket capacity min., Bucket capacity max., Bucket width, Model series, Engine power, Dimension lxwxh, Max. torque, No. of cylinders, Cylinder bore x stroke, Weight, Emission level, Dipper Length - Standard, Telematics Available, Emission Rating, Engine Manufacturer, Engine Model, Aspiration, Engine Output - Net, Engine Output - Gross, Number Of Track Rollers - Each Side, Track Shoe Width, Transport Length Mono Boom, Transport Height - Maximum, Overall Undercarriage Width, Overall Width - Maximum, Track Length On Ground, Tailswing Radius, Zero Tailswing?, Ground Clearance, Heaped Bucket Capacity - Standard, Bucket Capacity - Smallest, Bucket Capacity - Largest, Overall Bucket Width - Standard, Overall Bucket Width - Smallest, Overall Bucket Width - Largest, Bucket Weight - Standard, Bucket Weight - Smallest, Bucket Weight - Largest, Width over fixed tracks, Track Gauge - Standard, Variable Track Width, Ground Level Reach - Mono Boom, Dig Height - Mono Boom, Dump Height - Mono Boom, Vertical Wall - Mono Boom, Dig Depth - Mono Boom, Mono Boom - Size, Standard Dipper, Longest Dipper, Fuel Tank, Hydraulic Tank, Ground Bearing Pressure, Standard Shoe Width, Dipper Tearout, Bucket Breakout, End lift - Max Reach, Side lift - Max Reach, Main Pump, Number Of Main Pumps, Total Flow, Boom Pressure, Operating Weight.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 324E LN FAQ

When was the Caterpillar 324E LN manufactured?

The Caterpillar 324E LN was manufactured from 2012 to 2018.

How much does the Caterpillar 324E LN weigh?

The Caterpillar 324E LN weighs 25.13 tons.

What are the transport dimensions of the Caterpillar 324E LN?

The Caterpillar 324E LN has a transport length of 10.06 meters, a transport width of 2.99 meters, and a transport height of 3.19 meters.

What is the fuel consumption range of the Caterpillar 324E LN?

The Caterpillar 324E LN has a fuel consumption range of 12 to 24 liters per hour.

What are the undercarriage specifications of the Caterpillar 324E LN?

The Caterpillar 324E LN has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Caterpillar 324E LN?

The Caterpillar 324E LN has a dredging depth of 6.81 meters, a maximum horizontal reach of 10.11 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Caterpillar 324E LN?

The Caterpillar 324E LN has a tear-out force of 137 kN.

What is the bucket capacity of the Caterpillar 324E LN excavator?

The bucket capacity of the Caterpillar 324E LN excavator is 1.4 cubic meters.

How much is a Caterpillar 324E LN Crawler excavator (2012u20132018) worth?

The residual value of the Caterpillar 324E LN depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
