349F L Caterpillar excavator specs & Dimensions (2017 - 2019)

Caterpillar 349F L is a Crawler Excavator manufactured from 2017 to 2019. It has a weight of 48.6 tons and a track width of 600 mm…

Caterpillar 349F L is a Crawler Excavator manufactured from 2017 to 2019. It has a weight of 48.6 tons and a track width of 600 mm. The transport dimensions are 12.5 meters in length, 3.34 meters in width, and 3.71 meters in height. The machine features a tear-out force of 267 kN, a dredging depth of 7.66 meters, and a maximum horizontal reach of 11.73 meters. The bucket capacity is 3.1 cubic meters.

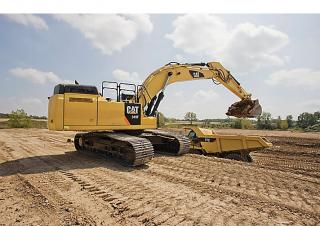

Crawler Excavators Caterpillar 349F L
Crawler Excavators Caterpillar 349F L
Crawler Excavators Caterpillar 349F L
Crawler Excavators Caterpillar 349F L
Crawler Excavators Caterpillar 349F L
Crawler Excavators Caterpillar 349F L
Crawler Excavators Caterpillar 349F L
Crawler Excavators Caterpillar 349F L

Technical specs - 349F L Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
48.6 t
Transport length
12.5 m
Transport width
3.34 m
Transport height
3.71 m
Bucket capacity
3.1 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
11.73 m
Dredging depth
7.66 m
Tear-out force
267 kN
Engine manuf.
Caterpillar
Engine type
C13 Acert
Engine power
311 kW
Displacement
12.5 l
Cylinder bore x stroke
130x157 mm
Emission level
U.S. EPA Tier 4 Final / EU IV

More technical details, like: bucket capacity min., bucket capacity max., bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 349F L FAQ

When was the Caterpillar 349F L manufactured?

The Caterpillar 349F L was manufactured from 2017 to 2019.

How much does the Caterpillar 349F L weigh?

The Caterpillar 349F L weighs 48.6 tons.

What are the transport dimensions of the Caterpillar 349F L crawler excavator?

The Caterpillar 349F L has a transport length of 12.5 meters, a transport width of 3.34 meters, and a transport height of 3.71 meters.

What are the undercarriage specifications of the Caterpillar 349F L?

The Caterpillar 349F L has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Caterpillar 349F L?

The Caterpillar 349F L has a dredging depth of 7.66 meters, a maximum horizontal reach of 11.73 meters, and features a monobloc boom.

What is the tear-out force of the Caterpillar 349F L?

The Caterpillar 349F L has a tear-out force of 267 kN.

What is the bucket capacity of the Caterpillar 349F L excavator?

The bucket capacity of the Caterpillar 349F L excavator is 3.1 cubic meters.
