318 B L Caterpillar excavator specs & Dimensions (2000 - 2002)

Model rating
3,33 / 10

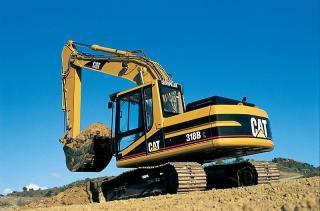

Caterpillar 318 B L is a crawler excavator manufactured from 2000 to 2002, with a weight of 19.2 tons. It features a track width o…

Caterpillar 318 B L is a crawler excavator manufactured from 2000 to 2002, with a weight of 19.2 tons. It features a track width of 600 mm, a transport length of 8.68 meters, a transport width of 2.8 meters, and a transport height of 3.04 meters. The excavator is equipped with air conditioning.

Crawler Excavators Caterpillar 318 B L

Technical specs - 318 B L Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.2 t
Transport length
8.68 m
Transport width
2.8 m
Transport height
3.04 m
Bucket capacity
1.16 m³
Track width
600 mm
Boom
MB
Engine manuf.
Caterpillar
Engine type
3046 T
Engine power
86 kW

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, max. reach horizontal, dredging depth, tear-out force, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, max. reach horizontal, dredging depth, tear-out force, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 318 B L FAQ

When was the Caterpillar 318 B L manufactured?

The Caterpillar 318 B L was manufactured from 2000 to 2002.

How much does the Caterpillar 318 B L weigh?

The Caterpillar 318 B L weighs 19.2 tons.

What are the transport dimensions of the Caterpillar 318 B L crawler excavator?

The Caterpillar 318 B L has a transport length of 8.68 meters, a transport width of 2.8 meters, and a transport height of 3.04 meters.

What is the track width of the Caterpillar 318 B L's undercarriage?

The Caterpillar 318 B L has a track width of 600 mm.

What type of boom does the Caterpillar 318 B L use for excavation?

The Caterpillar 318 B L uses a monobloc boom for excavation.

What is the bucket capacity of the Caterpillar 318 B L excavator?

The Caterpillar 318 B L excavator has a bucket capacity of 1.16 cubic meters.

How much is a Caterpillar 318 B L Crawler excavator (2000u20132002) worth?

The residual value of the Caterpillar 318 B L depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
