328D Caterpillar excavator specs & Dimensions (2007 - 2026)

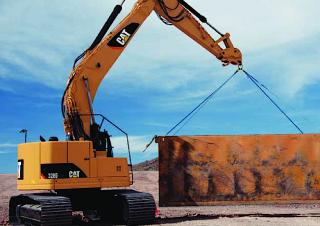

Caterpillar 328D is a Crawler Excavator manufactured since 2007, with a weight of 34.7 tons. It features a track width of 600 mm, …

Caterpillar 328D is a Crawler Excavator manufactured since 2007, with a weight of 34.7 tons. It features a track width of 600 mm, a transport length of 9.82 meters, a transport width of 3.19 meters, and a transport height of 3.37 meters. The dredging depth is 6.92 meters, and the maximum horizontal reach is 10.56 meters.

Crawler Excavators Caterpillar 328D

Technical specs - 328D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
34.7 t
Transport length
9.82 m
Transport width
3.19 m
Transport height
3.37 m
Track width
600 mm
Max. Reach horizontal
10.56 m
Dredging depth
6.92 m
Engine manuf.
Caterpillar
Engine type
C7 Acert
Engine power
152 kW
Displacement
7.2 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 328D FAQ

When was the Caterpillar 328D manufactured?

The Caterpillar 328D was first produced in 2007.

How much does the Caterpillar 328D weigh?

The Caterpillar 328D weighs 34.7 tons.

What are the transport dimensions of the Caterpillar 328D crawler excavator?

The Caterpillar 328D has a transport length of 9.82 meters, a transport width of 3.19 meters, and a transport height of 3.37 meters.

What is the track width of the Caterpillar 328D's undercarriage?

The Caterpillar 328D has a track width of 600 mm.

What are the excavation performance specifications of the Caterpillar 328D?

The Caterpillar 328D has a dredging depth of 6.92 meters and a maximum horizontal reach of 10.56 meters.
