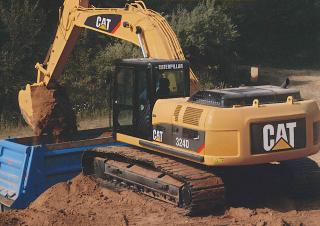

324D Caterpillar excavator specs & Dimensions (2007 - 2011)

Caterpillar 324D is a crawler excavator manufactured from 2007 to 2011. It has a weight of 24.8 tons and a track width of 600 mm. …

Caterpillar 324D is a crawler excavator manufactured from 2007 to 2011. It has a weight of 24.8 tons and a track width of 600 mm. The transport dimensions are 10.05 meters in length, 3.19 meters in width, and 2.98 meters in height. The dredging depth is 7.32 meters, and the maximum horizontal reach is 10.54 meters.

Crawler Excavators Caterpillar 324D

Technical specs - 324D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.8 t
Transport length
10.05 m
Transport width
3.19 m
Transport height
2.98 m
Track width
600 mm
Max. Reach horizontal
10.54 m
Dredging depth
7.32 m
Engine manuf.
Caterpillar
Engine type
C7 Acert
Engine power
140 kW
Displacement
7.2 l

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 324D FAQ

When was the Caterpillar 324D manufactured?

The Caterpillar 324D was manufactured from 2007 to 2011.

How much does the Caterpillar 324D weigh?

The Caterpillar 324D weighs 24.8 tons.

What are the transport dimensions of the Caterpillar 324D crawler excavator?

The Caterpillar 324D crawler excavator has a transport length of 10.05 meters, a transport width of 3.19 meters, and a transport height of 2.98 meters.

What is the track width of the Caterpillar 324D's undercarriage?

The Caterpillar 324D has a track width of 600 mm on its undercarriage.

What are the excavation performance specifications of the Caterpillar 324D?

The Caterpillar 324D has a dredging depth of 7.32 meters and a maximum horizontal reach of 10.54 meters.
