323E L Caterpillar excavator specs & Dimensions (2012 - 2016)

Model rating
6,00 / 10

Caterpillar 323E L is a crawler excavator manufactured from 2012 to 2016, with a weight of 22.6 tons. It features a track width of…

Caterpillar 323E L is a crawler excavator manufactured from 2012 to 2016, with a weight of 22.6 tons. It features a track width of 600 mm, a transport length of 9.54 meters, a transport width of 2.98 meters, and a transport height of 3.15 meters. The excavator is equipped with air conditioning, cabin adjustment, and track adjustment.

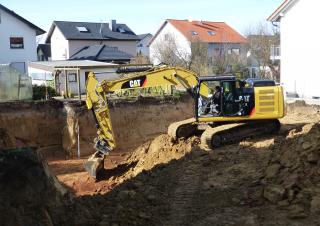

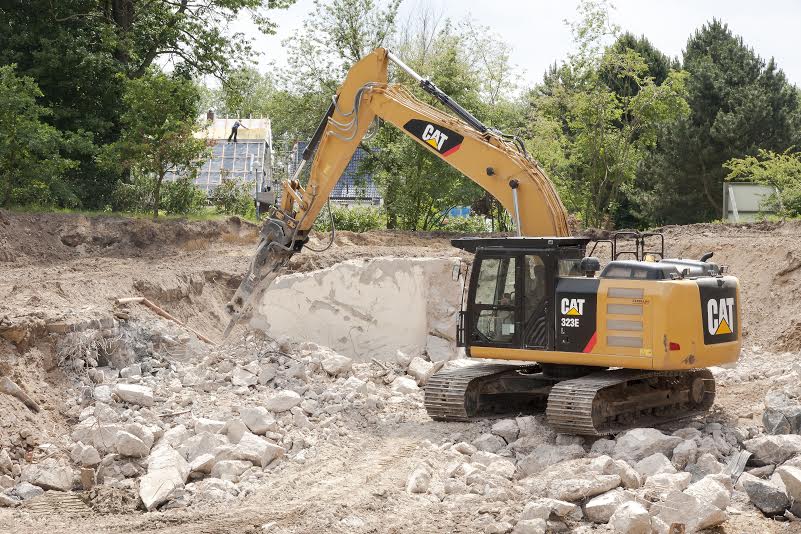

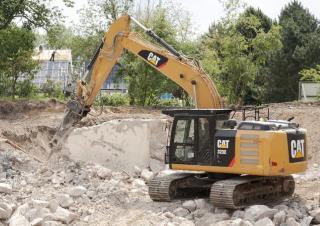

Crawler Excavators Caterpillar 323E L
Crawler Excavators Caterpillar 323E L
Crawler Excavators Caterpillar 323E L
Crawler Excavators Caterpillar 323E L
Crawler Excavators Caterpillar 323E L
Crawler Excavators Caterpillar 323E L

Technical specs - 323E L Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.6 t
Transport length
9.54 m
Transport width
2.98 m
Transport height
3.15 m
Bucket capacity
1.19 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.86 m
Dredging depth
6.72 m
Tear-out force
106.7 kN
Bucket width
1.2 m
Engine manuf.
Caterpillar
Engine type
C6.6 Acert
Engine power
121 kW
Displacement
6.6 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 323E L FAQ

When was the Caterpillar 323E L manufactured?

The Caterpillar 323E L was manufactured from 2012 to 2016.

How much does the Caterpillar 323E L weigh?

The Caterpillar 323E L weighs 22.6 tons.

What are the transport dimensions of the Caterpillar 323E L crawler excavator?

The Caterpillar 323E L has a transport length of 9.54 meters, a transport width of 2.98 meters, and a transport height of 3.15 meters.

What is the track width of the Caterpillar 323E L's undercarriage?

The Caterpillar 323E L has a track width of 600 mm.

What are the excavation performance specifications of the Caterpillar 323E L?

The Caterpillar 323E L has a dredging depth of 6.72 meters, a maximum horizontal reach of 9.86 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Caterpillar 323E L?

The Caterpillar 323E L has a tear-out force of 106.7 kN.

What are the bucket specifications of the Caterpillar 323E L crawler excavator?

The Caterpillar 323E L crawler excavator has a bucket capacity of 1.19 cubic meters and a bucket width of 1.2 meters.
