320E LN Caterpillar excavator specs & Dimensions (2012 - 2018)

Caterpillar 320E LN is a crawler excavator manufactured from 2012 to 2018, with a weight of 22.46 tons. It features a track width …

Caterpillar 320E LN is a crawler excavator manufactured from 2012 to 2018, with a weight of 22.46 tons. It features a track width of 500 mm, a transport length of 9.574 meters, a transport width of 2.54 meters, and a transport height of 3.15 meters. The bucket width is 1 meter.

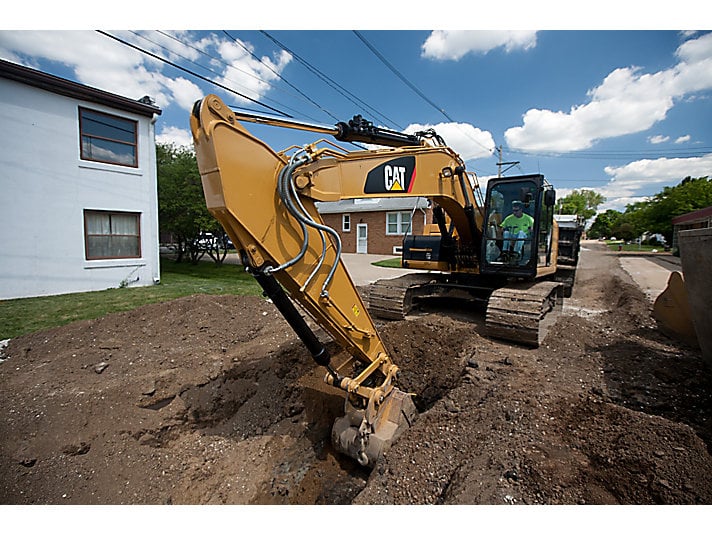

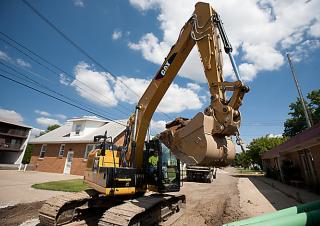

Crawler Excavators Caterpillar 320E LN
Crawler Excavators Caterpillar 320E LN
Crawler Excavators Caterpillar 320E LN
Crawler Excavators Caterpillar 320E LN
Crawler Excavators Caterpillar 320E LN
Crawler Excavators Caterpillar 320E LN

Technical specs - 320E LN Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.46 t
Transport length
9.574 m
Transport width
2.54 m
Transport height
3.15 m
Bucket capacity
0.81 m³
Track width
500 mm
Boom
MB
Max. Reach horizontal
9.45 m
Dredging depth
6.29 m
Tear-out force
118.2 kN
Bucket width
1 m
Engine manuf.
Caterpillar
Engine type
C6.6 Acert
Engine power
112 kW
Displacement
6.6 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 320E LN FAQ

When was the Caterpillar 320E LN manufactured?

The Caterpillar 320E LN was manufactured from 2012 to 2018.

How much does the Caterpillar 320E LN weigh?

The Caterpillar 320E LN weighs 22.46 tons.

What are the transport dimensions of the Caterpillar 320E LN?

The Caterpillar 320E LN has a transport length of 9.57 meters, a transport width of 2.54 meters, and a transport height of 3.15 meters.

What is the fuel consumption range of the Caterpillar 320E LN?

The Caterpillar 320E LN has a fuel consumption range of 10 to 19 liters per hour.

What is the track width of the Caterpillar 320E LN's undercarriage?

The Caterpillar 320E LN has a track width of 500 mm.

What are the excavation performance specifications of the Caterpillar 320E LN?

The Caterpillar 320E LN has a dredging depth of 6.29 meters, a maximum horizontal reach of 9.45 meters, and is equipped with a Monobloc boom.

What is the tear-out force of the Caterpillar 320E LN?

The Caterpillar 320E LN has a tear-out force of 118.2 kN.

What are the specifications of the primary work tool bucket on the Caterpillar 320E LN?

The primary work tool bucket of the Caterpillar 320E LN has a capacity of 0.81 cubic meters and a width of 1 meter.
