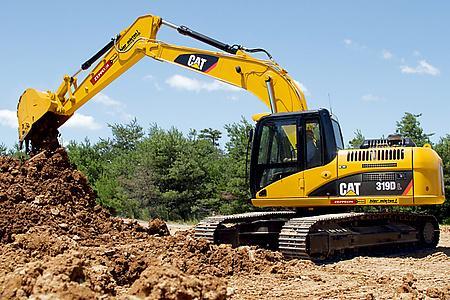

319D L Caterpillar excavator specs & Dimensions (2008 - 2015)

Model rating
9,00 / 10

Caterpillar 319D L is a crawler excavator manufactured from 2008 to 2015. It has a weight of 19.48 tons and a track width of 600 m…

Caterpillar 319D L is a crawler excavator manufactured from 2008 to 2015. It has a weight of 19.48 tons and a track width of 600 mm. The transport dimensions are 9 meters in length, 2.8 meters in width, and 3.075 meters in height. The machine features a tear-out force of 125 kN and a dredging depth of 4 meters.

Crawler Excavators Caterpillar 319D L

Technical specs - 319D L Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.48 t
Transport length
9 m
Transport width
2.8 m
Transport height
3.075 m
Bucket capacity
0.94 m³
Undercarriage
SL
Track width
600 mm
Max. Reach horizontal
8.41 m
Dredging depth
4 m
Tear-out force
125 kN
Bucket width
1.1 m
Engine manuf.
Caterpillar
Engine type
C4.2 Acert
Engine power
93 kW
Displacement
4.2 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., boom, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 319D L FAQ

When was the Caterpillar 319D L manufactured?

The Caterpillar 319D L was manufactured from 2008 to 2015.

How much does the Caterpillar 319D L weigh?

The Caterpillar 319D L weighs 19.48 tons.

What are the transport dimensions of the Caterpillar 319D L crawler excavator?

The Caterpillar 319D L has a transport length of 9 meters, a transport width of 2.8 meters, and a transport height of 3.08 meters.

What are the undercarriage specifications of the Caterpillar 319D L?

The Caterpillar 319D L has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Caterpillar 319D L?

The Caterpillar 319D L has a dredging depth of 4 meters and a maximum horizontal reach of 8.41 meters.

What is the tear-out force of the Caterpillar 319D L?

The Caterpillar 319D L has a tear-out force of 125 kN.

What are the bucket specifications of the Caterpillar 319D L crawler excavator?

The Caterpillar 319D L has a bucket capacity of 0.94 cubic meters and a bucket width of 1.1 meters.

How much is a Caterpillar 319D L Crawler excavator (2008u20132015) worth?

The residual value of the Caterpillar 319D L depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
