CX245D SR  Case excavator specs & Dimensions (2017 - 2019)

Case CX245D SR is a crawler excavator manufactured from 2017 to 2019. It has a weight of 24.4 tons and a track width of 600 mm. Th…

Case CX245D SR is a crawler excavator manufactured from 2017 to 2019. It has a weight of 24.4 tons and a track width of 600 mm. The transport dimensions are 8.92 meters in length, 2.99 meters in width, and 3.29 meters in height. The machine features a tear-out force of 142 kN, a dredging depth of 6.12 meters, and a maximum horizontal reach of 9.18 meters. The bucket width is 1 meter with a capacity of 0.85 cubic meters. Special equipment includes air conditioning, a blade, an overload alert system, and a hydraulic quick hitch.

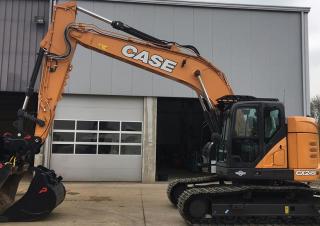

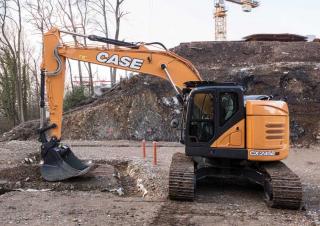

Crawler Excavators Case CX245D SR
Crawler Excavators Case CX245D SR
Crawler Excavators Case CX245D SR
Crawler Excavators Case CX245D SR
Crawler Excavators Case CX245D SR
Crawler Excavators Case CX245D SR
Crawler Excavators Case CX245D SR
Crawler Excavators Case CX245D SR

Technical specs - CX245D SR  Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.4 t
Transport length
8.92 m
Transport width
2.99 m
Transport height
3.29 m
Bucket capacity
0.85 m³
Undercarriage
SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.18 m
Dredging depth
6.12 m
Tear-out force
142 kN
Bucket width
1 m
Model series
D
Engine manuf.
Isuzu
Engine type
AR 4HK1X
Engine power
119.3 kW
Displacement
5.2 l
Revolutions at max torque
1600 rpm
Max. torque
620 Nm
No. of cylinders
4
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Case CX245D SR  FAQ

When was the Case CX245D SR manufactured?

The Case CX245D SR was manufactured from 2017 to 2019.

How much does the Case CX245D SR crawler excavator weigh?

The Case CX245D SR crawler excavator weighs 24.4 tons.

What are the transport dimensions of the Case CX245D SR?

The Case CX245D SR has a transport length of 8.92 meters, a transport width of 2.99 meters, and a transport height of 3.29 meters.

What are the undercarriage specifications of the Case CX245D SR?

The Case CX245D SR has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Case CX245D SR?

The Case CX245D SR has a dredging depth of 6.12 meters, a maximum horizontal reach of 9.18 meters, and is equipped with a monobloc boom.

What power rating information is available for the Case CX245D SR?

The source data does not provide power rating information for the Case CX245D SR.

What are the specifications of the primary work tool on the Case CX245D SR?

The primary work tool of the Case CX245D SR has a bucket capacity of 0.85 cubic meters and a bucket width of 1 meter.
