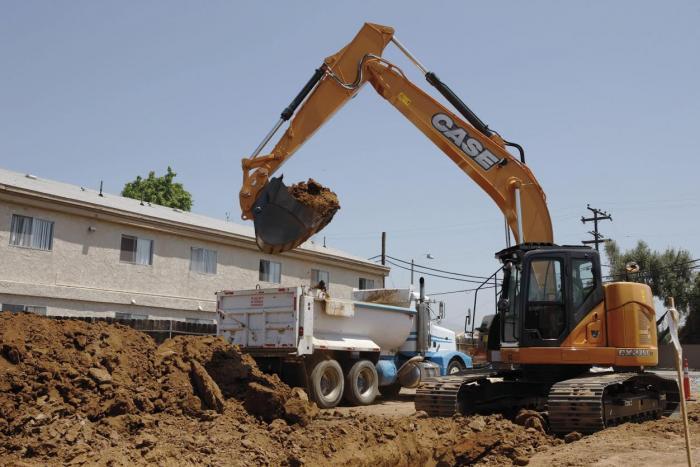

CX235CSR Case excavator specs & Dimensions (2012 - 2017)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - CX235CSR Case
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 25.8 t
- Transport length
- 8.9 m
- Transport width
- 2.99 m
- Transport height
- 3.1 m
- Bucket capacity
- 1.15 m³
- Undercarriage
- SL
- Track width
- 600 mm
- Boom
- MB
- Max. Reach horizontal
- 10.79 m
- Dredging depth
- 7.42 m
- Tear-out force
- 107 kN
- Bucket width
- 1.3 m
- Model series
- CSR
- Engine manuf.
- Isuzu
- Engine type
- AM 4 HK 1 X
- Engine power
- 119 kW
- Displacement
- 5.2 l
- Revolutions at max torque
- 2000 rpm
More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket
Special equipment
- Diesel particulate filter
-
Yes
- Track adjustment
-
No
- Blade
-
Yes
- Cabin adjustment
-
No
- Overload alert
-
Yes
- Material Handling Excavator
-
No
- Aircondition
-
Yes
- Quick hitch hydr.
-
Yes
- Quick hitch mech.
-
No
Download datasheets (PDF)
