    Lectura specs Construction machinery Crawler Excavators Crawler Excavators Case Case CX 240 B LC LR specifications

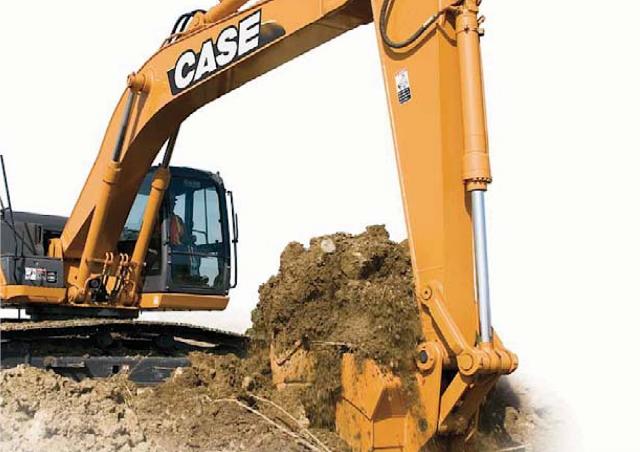

    Case CX 240 B LC LR excavator specs (2007 - 2012)

    Rate this machine now!

    Manufactured by case, this is the CX 240 B LC LR crawler excavator. Find and download detailed specs and data sheets for this mach... Read more

    Manufactured by case, this is the CX 240 B LC LR crawler excavator. Find and download detailed specs and data sheets for this machine here.

    Equipped with a powerful Isuzu engine, this CX 240 B LC LR 25t machine can provide 132kW or 177 horse power for the crawler excavator. The case CX 240 B LC LR can be grouped in the medium sized machine segment in the crawler excavators category. The CX 240 B LC LR’s size is 3.19m x 9.88m x 3.08m. The bucket of CX 240 B LC LR has a capacity of 1,53m³ which is average for this type of machine.

    Since 2007, this model has included Overload alert and Aircondition. It has been sold without air Quick hitch mech., Material Handling Excavator and Cabin adjustment as of 2012. There are more detailed specifications and machine descriptions available in the original case CX 240 B LC LR specs data sheet. Download a free data sheet in Italian, French, Spanish, English and Chinese from LECTURA Specs.

    The production stopped in 2012, where this CX 240 B LC LR was available at a new list price between €232000 and €296000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

    Case currently produces 47 other crawler excavators, which range from 7.9t up to 72t - the most visited on LECTURA Specs are CX 235 C SR LC Mono, CX 145 C SR Blade, CX 80 C-MSR. Want more detailed specifications? Download the latest case CX 240 B LC LR specs data sheet on LECTURA Specs today!

    Technical specs - CX 240 B LC LR Case

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 25 t
    • Transport length 9.88 m
    • Transport width 3.19 m
    • Transport height 3.08 m
    • Bucket capacity 1,53 m³
    • Undercarriage LC
    • Track width 800 mm
    • Max. Reach horizontal 10,79 m
    • Dredging depth 7,42 m
    • Tear-out force 107 kN
    • Engine manuf. Isuzu
    • Engine type 4 HK 1 X
    • Engine power 132 kW
    • Displacement 5.193 l
    • Revolutions at max torque 2000 rpm
    • Bucket capacity min. ###
    • Bucket capacity max. ###
    • Boom ###
    • Bucket width ###
    • Dimension lxwxh ###
    • Max. torque ###
    • No. of cylinders ###
    • Cylinder bore x stroke ###
    • Emission level ###

    Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

    Special equipment

    • Diesel particulate filter
    • Track adjustment
    • Blade
    • Cabin adjustment
    • Overload alert
    • Material Handling Excavator
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.

    Carbon footprint calculation

    Calculate the carbon footprint of the Case CX 240 B LC LR per hour of use:

    Or go directly to ERA Equipment CO2 Calculator

    service provided by ERA

    The auction format is a winner in today's market

    When the market for new equipment is tight, the market for used equipment is booming. As the supply is low and the demand high - it is a win/win situation for both buyers and sellers on auction sites.

    Learn more about the benefits of trading via auction and discover all the auctions to place a bid on right now!

    Blinto
    Find out more
    Service provided by: Blinto

    Used Case Crawler Excavators for sale

    We analyze attractive deals from many sources about Crawler Excavators.
    Find current offers on often visited classified websites showing second hand Crawler Excavators to buy in many countries.

    Get in touch for more details:

    Compare Case CX 240 B LC LR with similar Crawler Excavators

    Press 1 image

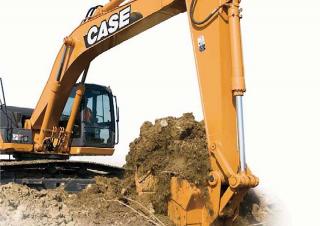

    Case CX 240 B LC LR
