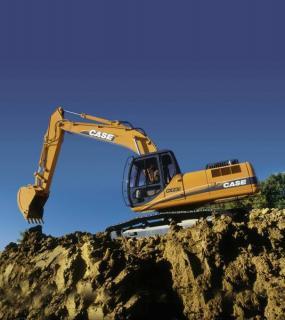

CX 230 Case excavator specs & Dimensions (2005 - 2008)
Technical specs - CX 230 Case
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 22.4 t
- Bucket capacity
- 1.2 m³
- Undercarriage
- NLC
- Track width
- 550 mm
- Boom
- MB
- Dredging depth
- 6.65 m
- Tear-out force
- 110 kN
- Engine manuf.
- Isuzu
- Engine type
- BB-6BG1T
- Engine power
- 105 kW
- Displacement
- 6.494 l
- Revolutions at max torque
- 1950 rpm
More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., max. reach horizontal, bucket width, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket
Special equipment
- Diesel particulate filter
-
No
- Track adjustment
-
No
- Blade
-
No
- Cabin adjustment
-
No
- Overload alert
-
Yes
- Material Handling Excavator
-
No
- Aircondition
-
Yes
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
