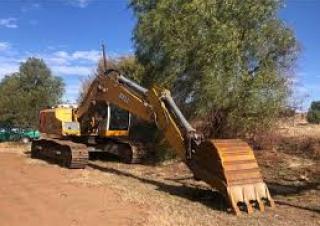

HX230E Bell excavator specs & Dimensions (2012 - 2026)

Bell HX230E is a crawler excavator manufactured since 2012, with a weight of 22 tons. It features a track width of 600 mm, a trans…

Bell HX230E is a crawler excavator manufactured since 2012, with a weight of 22 tons. It features a track width of 600 mm, a transport length of 9 meters, a transport width of 2 meters, and a transport height of 3.047 meters. The excavator has a maximum horizontal reach of 9 meters and a minimum bucket capacity of 1 cubic meter. It is equipped with air conditioning and a diesel particulate filter.

Crawler Excavators Bell HX230E

Technical specs - HX230E Bell

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22 t
Transport length
9 m
Transport width
2 m
Transport height
3.047 m
Bucket capacity
1.15 m³
Bucket capacity min.
1 m³
Track width
600 mm
Max. Reach horizontal
9 m
Dredging depth
5.8 m
Engine manuf.
Liebherr
Engine type
D 934 S
Engine power
105 kW
Displacement
6.36 l
Revolutions at max torque
1800 rpm
No. of cylinders
4
Cylinder bore x stroke
122 x 136 mm
Emission level
Tier 3/Stage IIIA

More technical details, like: bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Bell HX230E FAQ

When was the Bell HX230E manufactured?

The Bell HX230E was first produced in 2012.

How much does the Bell HX230E weigh?

The Bell HX230E weighs 22 tons.

What are the transport dimensions of the Bell HX230E crawler excavator?

The Bell HX230E has a transport length of 9 meters, a transport width of 2 meters, and a transport height of 3.05 meters.

What is the track width of the Bell HX230E crawler excavator?

The Bell HX230E crawler excavator has a track width of 600 mm.

What is the excavation performance of the Bell HX230E crawler excavator?

The Bell HX230E has a dredging depth of 5.8 meters and a maximum horizontal reach of 9 meters.

What are the bucket capacity specifications of the Bell HX230E excavator?

The Bell HX230E excavator has a bucket capacity ranging from 1 to 1.15 cubic meters.
