240 LC Atlas excavator specs & Dimensions (2021 - 2026)

Atlas 240 LC is a Crawler Excavator manufactured since 2021. It has a weight of 25.1 tons, a track width of 600 mm, a transport le…

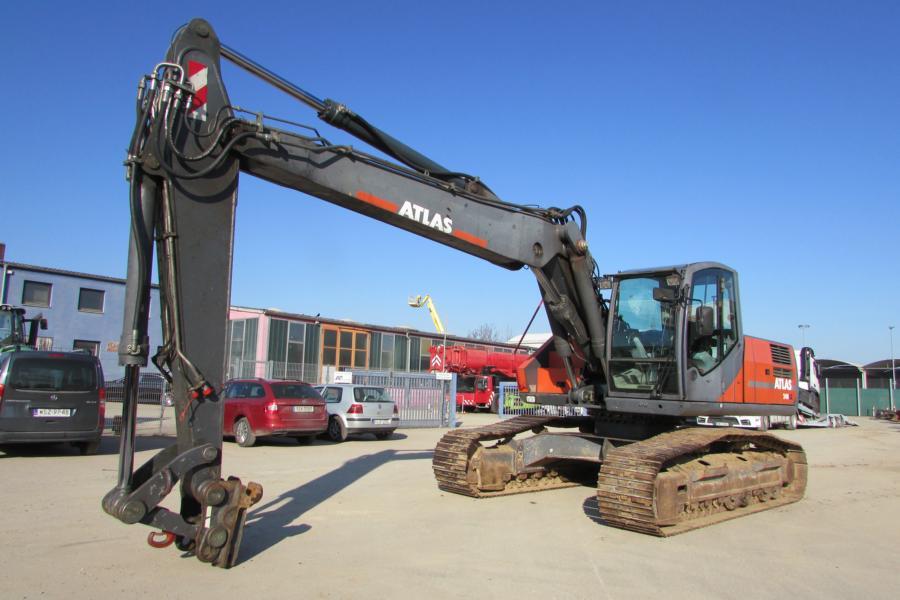

Atlas 240 LC is a Crawler Excavator manufactured since 2021. It has a weight of 25.1 tons, a track width of 600 mm, a transport length of 10.12 meters, a transport width of 3 meters, and a transport height of 3.01 meters. The machine features a tear-out force of 161 kN and comes equipped with air conditioning and an overload alert system.

Crawler Excavators Atlas 240 LC

Visit Atlas live at

Technical specs - 240 LC Atlas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25.1 t
Transport length
10.12 m
Transport width
3 m
Transport height
3.01 m
Bucket capacity
1.16 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.92 m
Dredging depth
6.13 m
Tear-out force
161 kN
Bucket width
1.2 m
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
129 kW
Displacement
6.7 l
Revolutions at max torque
2200 rpm
Max. torque
881/1300 Nm
No. of cylinders
6
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Atlas 240 LC FAQ

When was the Atlas 240 LC manufactured?

The Atlas 240 LC was first produced in 2021.

How much does the Atlas 240 LC weigh?

The Atlas 240 LC weighs 25.1 tons.

What are the transport dimensions of the Atlas 240 LC crawler excavator?

The Atlas 240 LC crawler excavator has a transport length of 10.12 meters, a transport width of 3 meters, and a transport height of 3.01 meters.

What are the undercarriage specifications of the Atlas 240 LC?

The Atlas 240 LC has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Atlas 240 LC?

The Atlas 240 LC has a dredging depth of 6.13 meters, a maximum horizontal reach of 9.92 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Atlas 240 LC?

The Atlas 240 LC has a tear-out force of 161 kN.

What are the specifications of the primary work tool bucket on the Atlas 240 LC?

The primary work tool bucket on the Atlas 240 LC has a capacity of 1.16 cubic meters and a width of 1.2 meters.

How much is a Atlas 240 LC Crawler excavator (2021u20132025) worth?

The residual value of the Atlas 240 LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
