240 LC Atlas excavator specs & Dimensions (2010 - 2019)

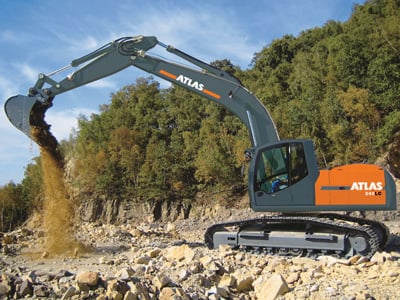

Atlas 240 LC is a Crawler Excavator manufactured from 2010 to 2019, with a weight of 25.1 t. It features a track width of 600 mm, …

Atlas 240 LC is a Crawler Excavator manufactured from 2010 to 2019, with a weight of 25.1 t. It features a track width of 600 mm, a transport length of 10.12 m, a transport width of 3 m, and a transport height of 3.01 m. The machine has a tear-out force of 161 kN and comes equipped with air conditioning and an overload alert system.

Crawler Excavators Atlas 240 LC
Crawler Excavators Atlas 240 LC
Crawler Excavators Atlas 240 LC
Crawler Excavators Atlas 240 LC
Crawler Excavators Atlas 240 LC
Crawler Excavators Atlas 240 LC

Visit Atlas live at

Technical specs - 240 LC Atlas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25.1 t
Transport length
10.12 m
Transport width
3 m
Transport height
3.01 m
Bucket capacity
1.16 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.92 m
Dredging depth
6.13 m
Tear-out force
161 kN
Bucket width
1.2 m
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
129 kW
Displacement
6.7 l
Revolutions at max torque
1800 rpm
No. of cylinders
6
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Atlas 240 LC FAQ

When was the Atlas 240 LC manufactured?

The Atlas 240 LC was manufactured from 2010 to 2019.

How much does the Atlas 240 LC weigh?

The Atlas 240 LC weighs 25.1 tons.

What are the transport dimensions of the Atlas 240 LC crawler excavator?

The Atlas 240 LC has a transport length of 10.12 meters, a transport width of 3 meters, and a transport height of 3.01 meters.

What are the undercarriage specifications of the Atlas 240 LC?

The Atlas 240 LC has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Atlas 240 LC?

The Atlas 240 LC has a dredging depth of 6.13 meters, a maximum horizontal reach of 9.92 meters, and is equipped with a monobloc boom.

What power rating information is available for the Atlas 240 LC?

The source data does not provide any power rating information for the Atlas 240 LC.

What are the bucket specifications of the Atlas 240 LC excavator?

The Atlas 240 LC excavator has a bucket capacity of 1.16 cubic meters and a bucket width of 1.2 meters.

How much is a Atlas 240 LC Crawler excavator (2010u20132019) worth?

The residual value of the Atlas 240 LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
