EC 200 Akerman-Volvo excavator specs & Dimensions (1995 - 2000)

Model rating
7,50 / 10

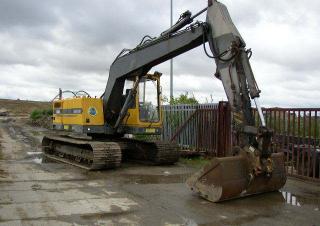

Akerman-Volvo EC 200 is a crawler excavator manufactured from 1995 to 2000, with a weight of 19.2 tons. It features a track width …

Akerman-Volvo EC 200 is a crawler excavator manufactured from 1995 to 2000, with a weight of 19.2 tons. It features a track width of 600 mm, a transport length of 8.81 meters, a transport width of 3.2 meters, and a transport height of 3.3 meters. The machine has a tear-out force of 94 kN.

Crawler Excavators Akerman-Volvo EC 200

Technical specs - EC 200 Akerman-Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.2 t
Transport length
8.81 m
Transport width
3.2 m
Transport height
3.3 m
Bucket capacity
1.1 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.7 m
Dredging depth
6.4 m
Tear-out force
94 kN
Bucket width
1.25 m
Model series
EC
Engine manuf.
Volvo
Engine type
TD61GE
Engine power
107 kW
Displacement
5.48 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Akerman-Volvo EC 200 FAQ

When was the Akerman-Volvo EC 200 manufactured?

The Akerman-Volvo EC 200 was manufactured from 1995 to 2000.

How much does the Akerman-Volvo EC 200 weigh?

The Akerman-Volvo EC 200 weighs 19.2 tons.

What are the transport dimensions of the Akerman-Volvo EC 200?

The Akerman-Volvo EC 200 has a transport length of 8.81 meters, a transport width of 3.2 meters, and a transport height of 3.3 meters.

What is the track width of the Akerman-Volvo EC 200's undercarriage?

The Akerman-Volvo EC 200 has a track width of 600 mm.

What are the excavation performance specifications of the Akerman-Volvo EC 200?

The Akerman-Volvo EC 200 has a dredging depth of 6.4 meters, a maximum horizontal reach of 9.7 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Akerman-Volvo EC 200?

The Akerman-Volvo EC 200 has a tear-out force of 94 kN. No power rating data is available for this model in the provided information.

What are the bucket specifications of the Akerman-Volvo EC 200 crawler excavator?

The Akerman-Volvo EC 200 has a bucket capacity of 1.1 cubic meters and a bucket width of 1.25 meters.

How much is a Akerman-Volvo EC 200 Crawler excavator (1995u20132000) worth?

The residual value of the Akerman-Volvo EC 200 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
