YC55SR Yuchai excavator specs & dimensions (2017 - 2026)

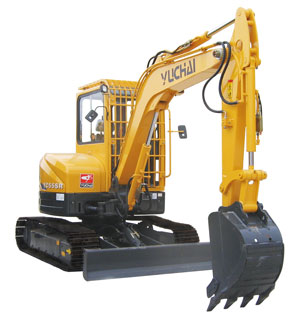

Yuchai YC55SR is a mini excavator manufactured since 2017, with a weight of 5.75 tons. It features a track width of 400 mm, a tran…

Yuchai YC55SR is a mini excavator manufactured since 2017, with a weight of 5.75 tons. It features a track width of 400 mm, a transport length of 5.715 meters, a transport width of 2 meters, and a transport height of 2.715 meters. The machine has a tear-out force of 37.5 kN, a dredging depth of 3.79 meters, and a maximum horizontal reach of 6.227 meters. The bucket width is 0.74 meters with a capacity of 0.2 cubic meters. It is equipped with a blade as special equipment.

Mini Excavators Yuchai YC55SR

Technical specs - YC55SR Yuchai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.75 t
Transport length
5.715 m
Transport width
2 m
Transport height
2.715 m
Bucket capacity
0.2 m³
Bucket width
0.74 m
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
6.227 m
Dredging depth
3.79 m
Tear-out force
37.5 kN
Engine manuf.
Yanmar
Engine type
4TNV94L
Engine power
36.9 kW

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yuchai YC55SR FAQ

When was the Yuchai YC55SR manufactured?

The Yuchai YC55SR was first produced in 2017.

How much does the Yuchai YC55SR mini excavator weigh?

The Yuchai YC55SR mini excavator weighs 5.75 tons.

What are the transport dimensions of the Yuchai YC55SR mini excavator?

The Yuchai YC55SR has a transport length of 5.72 meters, a transport width of 2 meters, and a transport height of 2.72 meters.

What is the track width of the Yuchai YC55SR mini excavator?

The Yuchai YC55SR mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Yuchai YC55SR mini excavator?

The Yuchai YC55SR mini excavator has a dredging depth of 3.79 meters and a maximum horizontal reach of 6.227 meters.

What is the tear-out force of the Yuchai YC55SR mini excavator?

The Yuchai YC55SR mini excavator has a tear-out force of 37.5 kN.

What are the specifications of the primary work tool bucket on the Yuchai YC55SR mini excavator?

The primary work tool bucket of the Yuchai YC55SR has a capacity of 0.2 cubic meters and a width of 0.74 meters.

What operator safety feature does the Yuchai YC55SR have?

The Yuchai YC55SR is equipped with a driver protection cabin.
