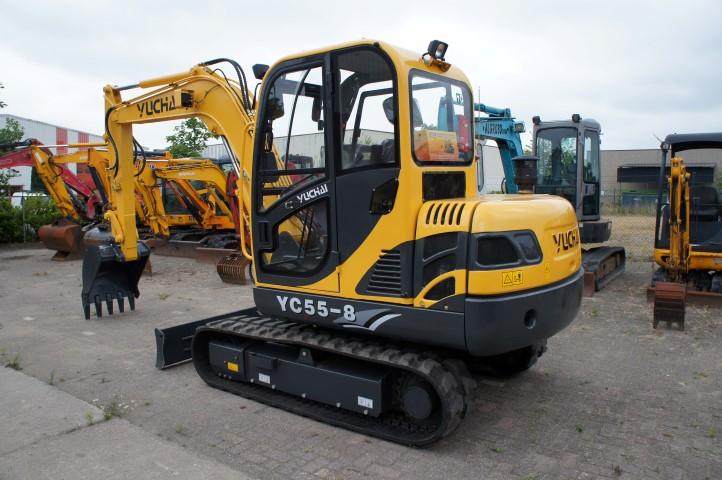

YC55-8 Yuchai excavator specs & dimensions (2017 - 2026)

Yuchai YC55-8 is a mini excavator manufactured since 2017. It has a weight of 5.71 tons and a track width of 400 mm. The transport…

Yuchai YC55-8 is a mini excavator manufactured since 2017. It has a weight of 5.71 tons and a track width of 400 mm. The transport dimensions are 6.035 meters in length, 1.865 meters in width, and 2.57 meters in height. The machine features a tear-out force of 37.4 kN and a dredging depth of 3.935 meters. The bucket width is 0.775 meters with a capacity of 0.22 cubic meters. Special equipment includes a blade.

Mini Excavators Yuchai YC55-8

Technical specs - YC55-8 Yuchai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.71 t
Transport length
6.035 m
Transport width
1.865 m
Transport height
2.57 m
Bucket capacity
0.22 m³
Bucket width
0.775 m
Track width
400 mm
Driver protection
Kb
Dredging depth
3.935 m
Tear-out force
37.4 kN
Engine manuf.
Yanmar
Engine type
4TNV94L
Engine power
36.9 kW

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, max. reach horizontal, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yuchai YC55-8 FAQ

When was the Yuchai YC55-8 manufactured?

The Yuchai YC55-8 was first produced in 2017.

How much does the Yuchai YC55-8 weigh?

The Yuchai YC55-8 weighs 5.71 tons.

What are the transport dimensions of the Yuchai YC55-8 mini excavator?

The Yuchai YC55-8 has a transport length of 6.04 meters, a transport width of 1.87 meters, and a transport height of 2.57 meters.

What is the track width of the Yuchai YC55-8 mini excavator's undercarriage?

The Yuchai YC55-8 mini excavator has a track width of 400 mm.

What is the dredging depth of the Yuchai YC55-8 mini excavator?

The Yuchai YC55-8 mini excavator has a dredging depth of 3.935 meters.

What is the tear-out force of the Yuchai YC55-8 mini excavator?

The Yuchai YC55-8 has a tear-out force of 37.4 kN.

What are the bucket specifications of the Yuchai YC55-8 mini excavator?

The Yuchai YC55-8 mini excavator has a bucket capacity of 0.22 cubic meters and a bucket width of 0.775 meters.

What driver protection feature does the Yuchai YC55-8 have?

The Yuchai YC55-8 has a driver protection cabin.
