YC25SR Yuchai excavator specs & dimensions (2017 - 2026)

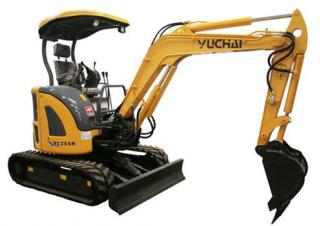

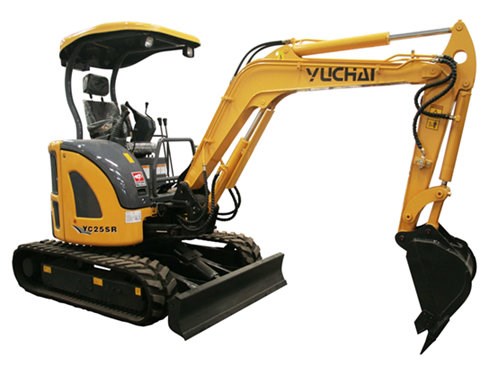

Yuchai YC25SR is a Mini Excavator manufactured since 2017. It has a weight of 2.8 tons and a track width of 300 mm. The transport …

Yuchai YC25SR is a Mini Excavator manufactured since 2017. It has a weight of 2.8 tons and a track width of 300 mm. The transport dimensions are 4.43 meters in length, 1.55 meters in width, and 2.53 meters in height. The machine features a tear-out force of 21.5 kN and a dredging depth of 2.63 meters. The bucket width is 0.517 meters with a capacity of 0.08 cubic meters. Special equipment includes a blade.

Mini Excavators Yuchai YC25SR

Technical specs - YC25SR Yuchai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.8 t
Transport length
4.43 m
Transport width
1.55 m
Transport height
2.53 m
Bucket capacity
0.08 m³
Bucket width
0.517 m
Track width
300 mm
Driver protection
FD
Dredging depth
2.63 m
Tear-out force
21.5 kN
Engine manuf.
Perkins
Engine type
403D-15
Engine power
20.7 kW

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, max. reach horizontal, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Yuchai YC25SR FAQ

When was the Yuchai YC25SR manufactured?

The Yuchai YC25SR was first produced in 2017.

How much does the Yuchai YC25SR weigh?

The Yuchai YC25SR weighs 2.8 tons.

What are the transport dimensions of the Yuchai YC25SR mini excavator?

The Yuchai YC25SR has a transport length of 4.43 meters, a transport width of 1.55 meters, and a transport height of 2.53 meters.

What is the track width of the Yuchai YC25SR mini excavator's undercarriage?

The Yuchai YC25SR mini excavator has a track width of 300 mm.

What is the dredging depth of the Yuchai YC25SR mini excavator?

The Yuchai YC25SR mini excavator has a dredging depth of 2.63 meters.

What is the tear-out force of the Yuchai YC25SR mini excavator?

The Yuchai YC25SR mini excavator has a tear-out force of 21.5 kN.

What are the bucket specifications of the Yuchai YC25SR mini excavator?

The Yuchai YC25SR has a bucket capacity of 0.08 cubic meters and a bucket width of 0.517 meters.

What operator safety and support features does the Yuchai YC25SR have?

The Yuchai YC25SR is equipped with a canopy for driver protection.

How much is a Yuchai YC25SR Mini excavator (2017u20132025) worth?

The residual value of the Yuchai YC25SR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
