YC25-8 Yuchai excavator specs & dimensions (2017 - 2026)

Yuchai YC25-8 is a mini excavator manufactured since 2017. It has a weight of 3.08 tons and a track width of 300 mm. The transport…

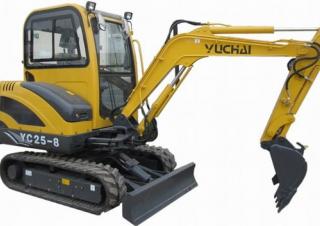

Yuchai YC25-8 is a mini excavator manufactured since 2017. It has a weight of 3.08 tons and a track width of 300 mm. The transport dimensions are 4.51 meters in length, 1.45 meters in width, and 2.465 meters in height. The machine features a tear-out force of 17.5 kN, a dredging depth of 2.105 meters, and a maximum horizontal reach of 4.18 meters. The bucket width is 0.517 meters with a capacity of 0.07 cubic meters. Special equipment includes a blade and rubber tracks.

Mini Excavators Yuchai YC25-8

Technical specs - YC25-8 Yuchai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.08 t
Transport length
4.51 m
Transport width
1.45 m
Transport height
2.465 m
Bucket capacity
0.07 m³
Bucket width
0.517 m
Track width
300 mm
Driver protection
FD/Kb
Max. Reach horizontal
4.18 m
Dredging depth
2.105 m
Tear-out force
17.5 kN
Engine manuf.
Perkins
Engine type
N/A
Engine power
24 kW

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yuchai YC25-8 FAQ

When was the Yuchai YC25-8 manufactured?

The Yuchai YC25-8 was first produced in 2017.

How much does the Yuchai YC25-8 mini excavator weigh?

The Yuchai YC25-8 mini excavator weighs 3.08 tons.

What are the transport dimensions of the Yuchai YC25-8 mini excavator?

The Yuchai YC25-8 has a transport length of 4.51 meters, a transport width of 1.45 meters, and a transport height of 2.47 meters.

What is the track width of the Yuchai YC25-8 mini excavator's undercarriage?

The Yuchai YC25-8 mini excavator has a track width of 300 mm.

What are the dredging depth and maximum horizontal reach of the Yuchai YC25-8 mini excavator?

The Yuchai YC25-8 mini excavator has a dredging depth of 2.105 meters and a maximum horizontal reach of 4.18 meters.

What is the tear-out force of the Yuchai YC25-8 mini excavator?

The Yuchai YC25-8 mini excavator has a tear-out force of 17.5 kN.

What are the specifications of the bucket on the Yuchai YC25-8 mini excavator?

The bucket of the Yuchai YC25-8 has a capacity of 0.07 cubic meters and a width of 0.517 meters.

What operator safety and support features does the Yuchai YC25-8 have?

The Yuchai YC25-8 provides operator safety and support through a canopy and a cabin.
