YC08-9 Yuchai excavator specs & dimensions (2020 - 2026)

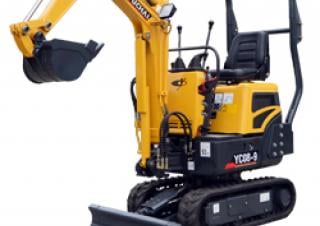

Yuchai YC08-9 is a mini excavator manufactured since 2020. It has a weight of 1 ton and features a track width of 180 mm. The tran…

Yuchai YC08-9 is a mini excavator manufactured since 2020. It has a weight of 1 ton and features a track width of 180 mm. The transport dimensions are 2.82 m in length, 0.8 m in width, and 2.3 m in height. The dredging depth is 1.41 m, and the maximum horizontal reach is 2.73 m. The bucket width is 0.35 m with a capacity of 0.02 m³. Special equipment includes a blade and rubber track.

Mini Excavators Yuchai YC08-9

Technical specs - YC08-9 Yuchai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1 t
Transport length
2.82 m
Transport width
0.8 m
Transport height
2.3 m
Bucket capacity
0.02 m³
Bucket width
0.35 m
Track width
180 mm
Driver protection
FD
Max. Reach horizontal
2.73 m
Dredging depth
1.41 m
Engine manuf.
Yanmar
Engine type
2TNV70
Engine power
7.3 kW
Displacement
0.569 l
Revolutions at max torque
2400 rpm

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, tear-out force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Yuchai YC08-9 FAQ

When was the Yuchai YC08-9 manufactured?

The Yuchai YC08-9 was first produced in 2020.

How much does the Yuchai YC08-9 weigh?

The Yuchai YC08-9 weighs 1 ton.

What are the transport dimensions of the Yuchai YC08-9 mini excavator?

The Yuchai YC08-9 has a transport length of 2.82 meters, a transport width of 0.8 meters, and a transport height of 2.3 meters.

What is the track width of the Yuchai YC08-9 mini excavator?

The Yuchai YC08-9 mini excavator has a track width of 180 mm.

What are the excavation performance specifications of the Yuchai YC08-9 mini excavator?

The Yuchai YC08-9 mini excavator has a dredging depth of 1.41 meters and a maximum horizontal reach of 2.73 meters.

What are the specifications of the bucket on the Yuchai YC08-9 mini excavator?

The bucket of the Yuchai YC08-9 has a capacity of 0.02 cubic meters and a width of 0.35 meters.

What operator safety and support features does the Yuchai YC08-9 have?

The Yuchai YC08-9 is equipped with a canopy for driver protection.
