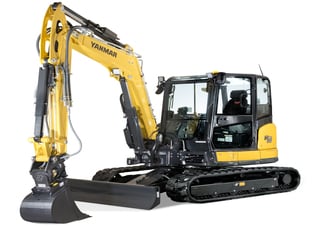

SV 60-B Yanmar excavator specs & dimensions (2018 - 2024)

Yanmar SV 60-B is a mini excavator manufactured since 2018, with a weight of 5.63 tons. It features a track width of 400 mm, a tra…

Yanmar SV 60-B is a mini excavator manufactured since 2018, with a weight of 5.63 tons. It features a track width of 400 mm, a transport length of 5.6 meters, a transport width of 1.99 meters, and a transport height of 2.54 meters. The machine has a tear-out force of 41.9 kN, a dredging depth of 3.91 meters, and a maximum horizontal reach of 4.28 meters. Special equipment includes air conditioning, a blade, a diesel particulate filter, an overload alert, and both hydraulic and mechanical quick hitches.

Mini Excavators Yanmar SV 60-B

Technical specs - SV 60-B Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.63 t
Transport length
5.6 m
Transport width
1.99 m
Transport height
2.54 m
Track width
400 mm
Max. Reach horizontal
4.28 m
Dredging depth
3.91 m
Tear-out force
41.9 kN
Model series
SV
Engine manuf.
Yanmar
Engine type
4TNV86CT-PBV
Engine power
33.5 kW
Displacement
2.091 l
Max. torque
176.6 Nm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Yanmar SV 60-B FAQ

When was the Yanmar SV 60-B manufactured?

The Yanmar SV 60-B was manufactured from 2018 to 2024.

How much does the Yanmar SV 60-B weigh?

The Yanmar SV 60-B weighs 5.63 tons.

What are the transport dimensions of the Yanmar SV 60-B mini excavator?

The Yanmar SV 60-B has a transport length of 5.6 meters, a transport width of 1.99 meters, and a transport height of 2.54 meters.

What is the track width of the Yanmar SV 60-B mini excavator?

The Yanmar SV 60-B mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Yanmar SV 60-B mini excavator?

The Yanmar SV 60-B mini excavator has a dredging depth of 3.91 meters and a maximum horizontal reach of 4.28 meters.

What is the tear-out force of the Yanmar SV 60-B mini excavator?

The Yanmar SV 60-B mini excavator has a tear-out force of 41.9 kN.
