XGMA XG806F
- Weight:
- 5.85 t
- Transport length:
- 5.9 m
- Transport width:
- 2 m
- Transport height:
- 2.68 m
XG806F XGMA excavator specs & dimensions (2025 - 2026)
Technical specs - XG806F XGMA
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 5.85 t
- Transport length
- 5.9 m
- Transport width
- 2 m
- Transport height
- 2.68 m
- Bucket capacity
- 0.21 m³
- Driver protection
- Kb
- Max. Reach horizontal
- 6.1 m
- Dredging depth
- 3.82 m
- Tear-out force
- 33.8 kN
- Model series
- F
- Engine manuf.
- Kubota
- Engine type
- V2607-DI-T-E3B
- Engine power
- 43 kW
- Displacement
- 2.615 l
- Revolutions at max torque
- 1600 rpm
- Max. torque
- 225.8 Nm
More technical details, like: bucket capacity min., bucket capacity max., bucket width, track width, standard tyres, dimension lxwxh, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with standard bucket
Special equipment
- Track adjustment
-
No
- Rubber track
-
No
- Blade
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
Machine inspection
Ask for inspection of your XGMA XG806F from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Mini Excavator Buyers Guide - price ranges of new and used models
At LECTURA we collect price information since 40 years and based on this data, we can support sellers with price information of used mini excavators, such as XGMA XG806F.
Check what new and used models of mini excavators you can get in each price range:
Data provided by
Compare XGMA XG806F with similar Mini Excavators
.jpg)
Mecalac 6MCR
- Weight:
- 5.7 t
- Transport length:
- 2.76 m
- Transport width:
- 2.03 m
- Transport height:
- 2.59 m
Hyundai R 55-3
- Weight:
- 5.25 t
- Transport width:
- 1.87 m
Terex TC 50
- Weight:
- 4.82 t
- Transport length:
- 5.39 m
- Transport width:
- 1.99 m
- Transport height:
- 2.55 m
Zeppelin ZM 6 B
- Weight:
- 5.3 t
Check other popular models from Mini Excavators
Kubota U35
- Weight:
- 3.4 t
Kubota KX121-3 GL
- Weight:
- 3.9 t
Kubota KX057-4
- Weight:
- 5.54 t
New Holland E30C
- Weight:
- 3 t
.jpg)
Kubota KX71-3S
- Weight:
- 2.97 t
Kubota U17
- Weight:
- 1.73 t
Kubota K008-3
- Weight:
- 1 t
John Deere Construction 260
- Weight:
- 3.584 t
John Deere Construction 50
- Weight:
- 4.3 t
Yanmar SV40
- Weight:
- 4.32 t
Spare parts & Components
Get spare parts for XGMA XG806F easily from our partners
Do your lookup for high quality parts for XGMA XG806F online!
With a few, easy steps, you will find generic and genuine parts and replacements in well-catalogued lists. Wether you are dealer or an owner, LECTURA can lead you to the right direction.
Check the best offers from our partners and order the Mini Excavators spare parts easily today - worldwide.
Transport
Mini Excavators Transport & Shipping Services
In case you look into transport options for your machine, apply our services. Search for the ideal transport quotes for Mini Excavators formed on transport dimensions and weights. Our partners provide large-scale options to meet your wishes.
Data provided by
News
Construction News by LECTURA 10.09.2026
.jpg)

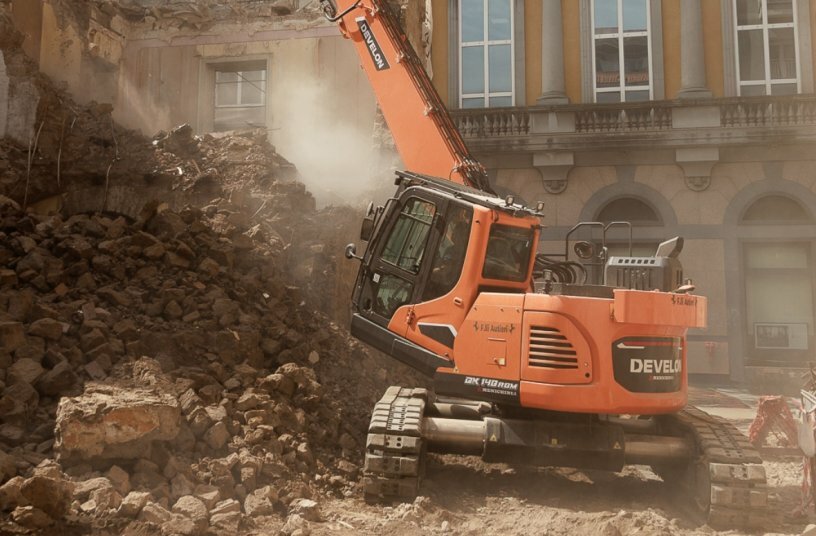

Develon DX140RDM-7 Demolition Excavator Takes Down Historic Tuff Building Next to the Royal Palace of Caserta
