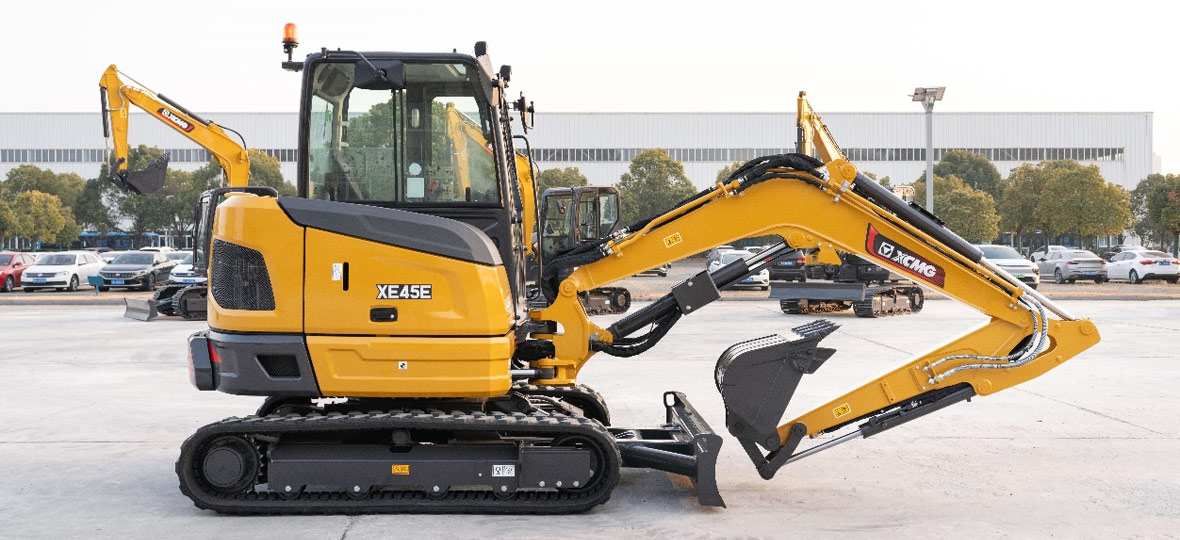

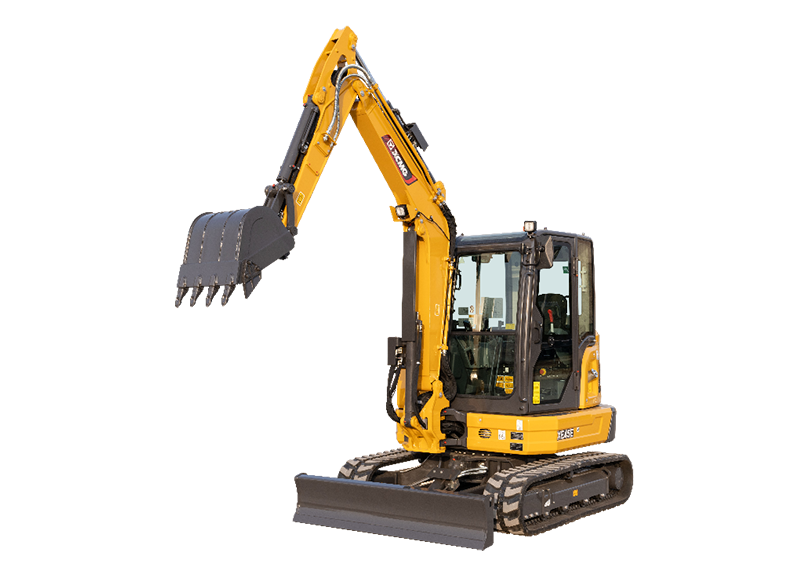

XE45E XCMG excavator specs & dimensions (2025 - 2026)
.jpg)
.jpg)
Visit XCMG live at
Technical specs - XE45E XCMG
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 4.8 t
- Transport length
- 5.25 m
- Transport width
- 1.85 m
- Transport height
- 2.649 m
- Bucket capacity
- 0.12 m³
- Bucket capacity min.
- 0.05 m³
- Bucket capacity max.
- 0.18 m³
- Track width
- 350 mm
- Driver protection
- Kb
- Max. Reach horizontal
- 5.74 m
- Dredging depth
- 3.342 m
- Tear-out force
- 37 kN
- Model series
- XE
- Engine manuf.
- Kubota
- Engine type
- D1803-CR-T-E5
- Engine power
- 29.7 kW
- Displacement
- 1.826 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 150.5/1500 Nm
- No. of cylinders
- 3
- Cylinder bore x stroke
- 87x102,4 mm
- Emission level
- V
More technical details, like: bucket width, standard tyres, dimension lxwxh are available in the full technical specs.
Basic model with standard bucket
Special equipment
- Track adjustment
-
No
- Rubber track
-
No
- Blade
-
Yes
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
