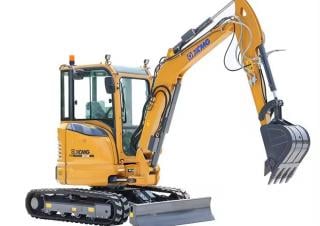

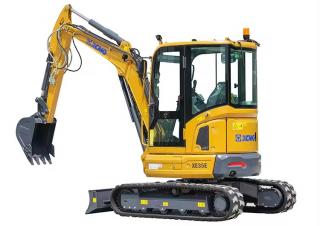

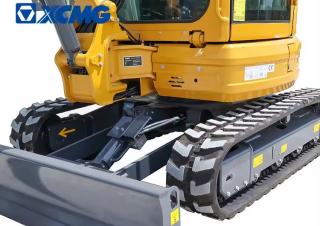

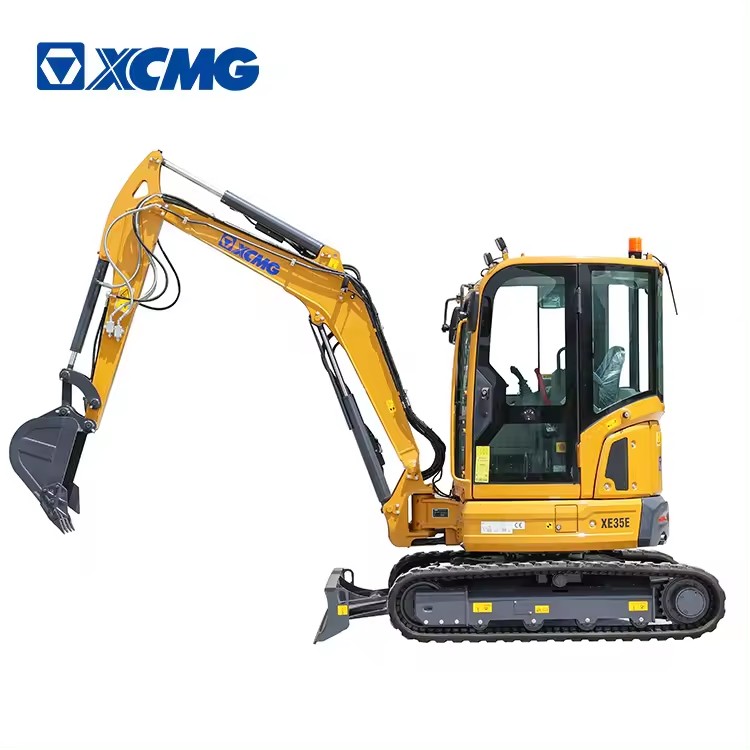

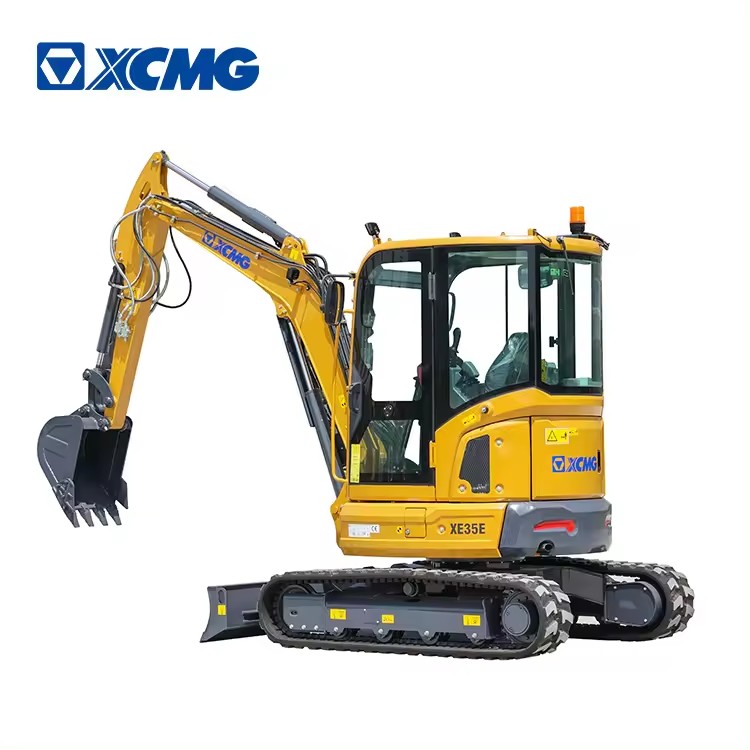

XE35E Cabin XCMG excavator specs & dimensions (2026 - 2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit XCMG live at
Technical specs - XE35E Cabin XCMG
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 4.2 t
- Transport length
- 4.19 m
- Transport width
- 1.5 m
- Transport height
- 2.58 m
- Bucket capacity
- 0.12 m³
- Track width
- 300 mm
- Driver protection
- Kb
- Max. Reach horizontal
- 5.3 m
- Dredging depth
- 3.06 m
- Tear-out force
- 28.6 kN
- Model series
- XE
- Engine manuf.
- Yanmar
- Engine type
- 3TNV88F
- Engine power
- 18.2 kW
- Displacement
- 1.642 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 94,2/1320 Nm
- No. of cylinders
- 3
- Cylinder bore x stroke
- 88x90 mm
- Emission level
- V
More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh are available in the full technical specs.
Basic model with standard bucket
Special equipment
- Track adjustment
-
No
- Rubber track
-
No
- Blade
-
Yes
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
