EZ53 Wacker Neuson excavator specs & dimensions (2016 - 2019)

Wacker Neuson EZ53 is a mini excavator manufactured from 2016 to 2019. It has a weight of 5.24 tons and a track width of 400 mm. T…

Wacker Neuson EZ53 is a mini excavator manufactured from 2016 to 2019. It has a weight of 5.24 tons and a track width of 400 mm. The transport dimensions are 5.5 meters in length, 1.99 meters in width, and 2.57 meters in height. The machine features a tear-out force of 28 kN and a dredging depth of 3.5 meters. Special equipment includes a blade and rubber track.

Visit Wacker Neuson live at

EZ53

Years of manufacture: 2016—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - EZ53 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.24 t

Transport length: 5.5 m

Transport width: 1.99 m

Transport height: 2.57 m

Track width: 400 mm

Driver protection: FD

Max. Reach horizontal: 5.86 m

Dredging depth: 3.5 m

Tear-out force: 28 kN

Model series: EZ

Engine manuf.: Perkins

Engine type: 404D-22T

Engine power: 35.9 kW

Displacement: 2.216 l

Revolutions at max torque: 1900 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Wacker Neuson EZ53 FAQ

When was the Wacker Neuson EZ53 manufactured?

The Wacker Neuson EZ53 was manufactured from 2016 to 2019.

How much does the Wacker Neuson EZ53 weigh?

The Wacker Neuson EZ53 weighs 5.24 tons.

What are the transport dimensions of the Wacker Neuson EZ53 mini excavator?

The Wacker Neuson EZ53 has a transport length of 5.5 meters, a transport width of 1.99 meters, and a transport height of 2.57 meters.

What is the track width of the Wacker Neuson EZ53's undercarriage?

The Wacker Neuson EZ53 has a track width of 400 mm on its undercarriage.

What are the dredging depth and maximum horizontal reach of the Wacker Neuson EZ53 mini excavator?

The Wacker Neuson EZ53 mini excavator has a dredging depth of 3.5 meters and a maximum horizontal reach of 5.86 meters.

What is the tear-out force of the Wacker Neuson EZ53, given that no power ratings are provided?

The Wacker Neuson EZ53 has a tear-out force of 28 kN. No power ratings are available in the provided data.

What operator safety and support features does the Wacker Neuson EZ53 have?

The Wacker Neuson EZ53 is equipped with a canopy for driver protection.

How much is a Wacker Neuson EZ53 Mini excavator (2016u20132019) worth?

The residual value of the Wacker Neuson EZ53 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Wacker Neuson EZ53 overview

Wacker Neuson EZ53 features overview

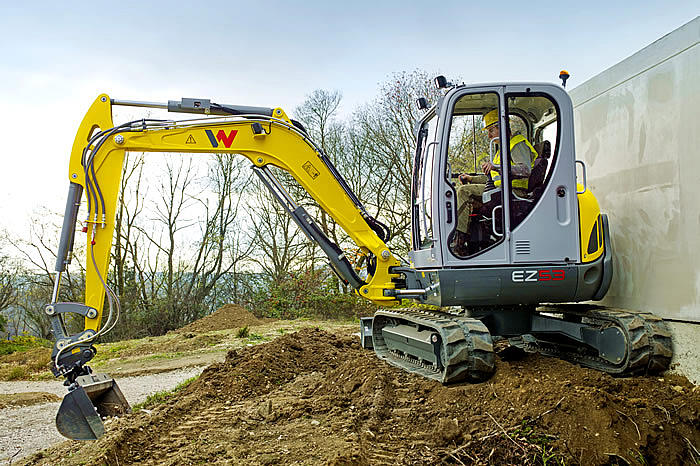

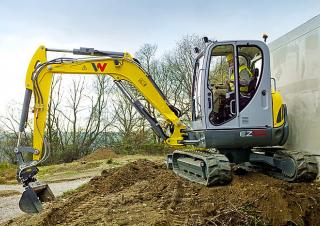

zero tail – compact all around
Zero Tail Excavator for safe operation even in confined spaces. Ideal for digging near walls, roads, buildings or other surrounding boundaries such as inner cities or busy streets. Optional counterweights improve stability. wackerneuson.com compiled on 29.06.2018 Page: 2

Engine / Driveline and transmission

Tracked Zero Tail Excavators

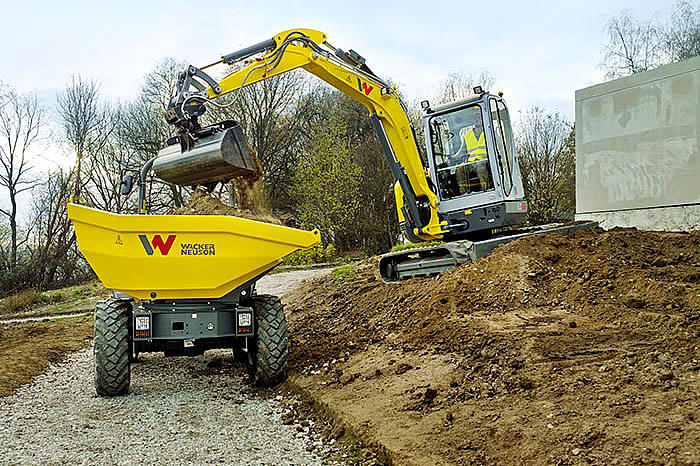

Best performance in its class High excavation capacity even in hard-to-reach areas. The EZ53 is the perfect equipment for operations close to walls or buildings. The rear of the EZ53 does not reach the undercarriage at all times in no operating position over the ground. Minimized space requirements are extremely practical on job sites in busy city centres or road construction sites with ongoing traffic. But not only its operating dimensions convince, but also its material handling and digging performances impressive. Remarkably higher engine and hydraulic performances plus reduced fuel consumption at the same time. Maintenance made easy: tiltable cab and removable chassis lid provide quick and easy access providing diagnostic tools further support. Perfectly equipped for multifunctional attachment tools: up to five additional control circuits available with unpressurised reflux. Numerous options ex factory such as overload valves, idle speed automatics and much more.
Engine for highest performance
Remarkably higher engine and hydraulic performances, as well as reduced fuel consumption. Improved digging performance and more powerful turbodiesel engine provide better material handling results.

Environment

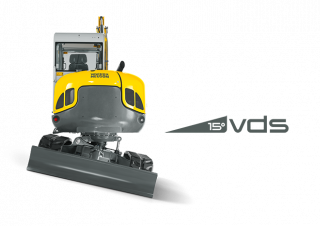

The first smart solution for the highest efficiency of excavation work on sloping terrain. VDS is available as an option for the EZ53, VDS makes excavating particularly economical and therefore receives the ECO seal. More information about VDS at: wackerneuson.com compiled on 29.06.2018 Page: 3

Dimensions and weight

Hydraulic system
Duty pump	Double variable- & two-gear pump
Flow rate	146.4 l/min
Operating pressure for working and traction hydraulics	230 bar
Hydraulic oil tank	80 l
Undercarriage
Travel speed max.	4.7 km/h
Chain width	400 mm
Ground clearance	322 mm
Dozer Blade
Width	1	990 mm"
Height	380 mm
Stroke above ground 415 mm
Stroke below ground	455 mm

		VDS
A,Height,"2,572 mm	2,672 mm"
B,Width,"1,990 mm	1,990 mm"
B,Width of the revolving superstructure,"1,843 mm	1,843 mm"
C,Transport length (short dipper stick),"5,498 mm	5,490 mm"
C,Transport length (long dipper stick),"5,477 mm	5,496 mm"
D,Digging depth max. (short dipper stick),"3,501 mm	3,394 mm"
D,Digging depth max. (long dipper stick),"3,751 mm	3,644 mm"
E,Insertion depth max. vertical (short dipper stick),"2,667 mm	2,542 mm"
E,Insertion depth max. vertical (long dipper stick),"2,906 mm	2,781 mm"

F,Insertion height max. (short dipper stick),"5,299 mm	5,405 mm"
F,Insertion height max. (long dipper stick),"5,459 mm	5,564 mm"
G,Dump height max. (short dipper stick),"3,678 mm	3,784 mm"
G,Dump height max. (long dipper stick),"3,837 mm	3,943 mm"
H,Digging radius max. (short dipper stick),"5,987 mm	5,994 mm"
H,Digging radius max. (long dipper stick),"6,225 mm	6,233 mm"
I,Range max. ground coverage (short dipper stick),"5,860 mm	5,823 mm"
I,Range max. ground coverage (long dipper stick),"6,104 mm	6,071 mm"
J	Rear swivel radius	995 mm	995 mm
J,Rear swivel radius with counterweight,"1,055 mm	1,055 mm"
K	Arm displacement max. boom offset to center of bucket	left side"	958 mm	958 mm
K	Arm displacement max. boom offset to center of bucket	left side"	853 mm	853 mm
L	Lift height max. of the dozer blade above subgrade	415 mm	415 mm
M	Scraping depth max. of the dozer blade below subgrade	453 mm	453 mm
N,Length,"2,524 mm	2,524 mm"
O	Turning angle max. of the arm system to the right	61 °	61 °
P	Turning angle max. of the arm system to the left	65 °	65 °
Q	Chain width	400 mm	400 mm
R,Boom slewing radius center,"2,692 mm	2,692 mm"
R,Boom slewing radius right,"2,431 mm	2,431 mm"
R,Boom slewing radius left,"2,289 mm	2,289 mm"

Other features

Comfortable cabin
Spacious cabin for sufficient room for movement. Sliding windows on both sides. Front windshield is split into two. The lower screen slides up behind the top, both screens can be moved under the cab ceiling. wackerneuson.com compiled on 29.06.2018 Page: 1

Tables

Sound level (LwA) acc. to 2000/14/EC	94 dB(A)
Cabin - specified sound pressure level LpA acc. to ISO 6394	78 dB(A)
