EZ53 Wacker Neuson excavator specs & dimensions (2016 - 2019)

Model rating: 5,00 / 10

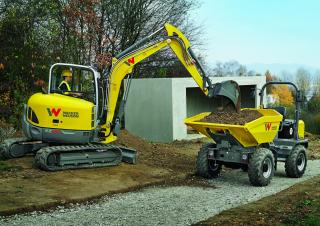

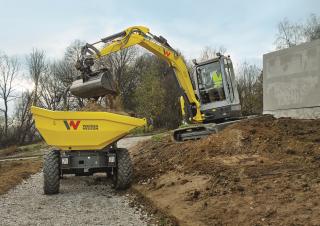

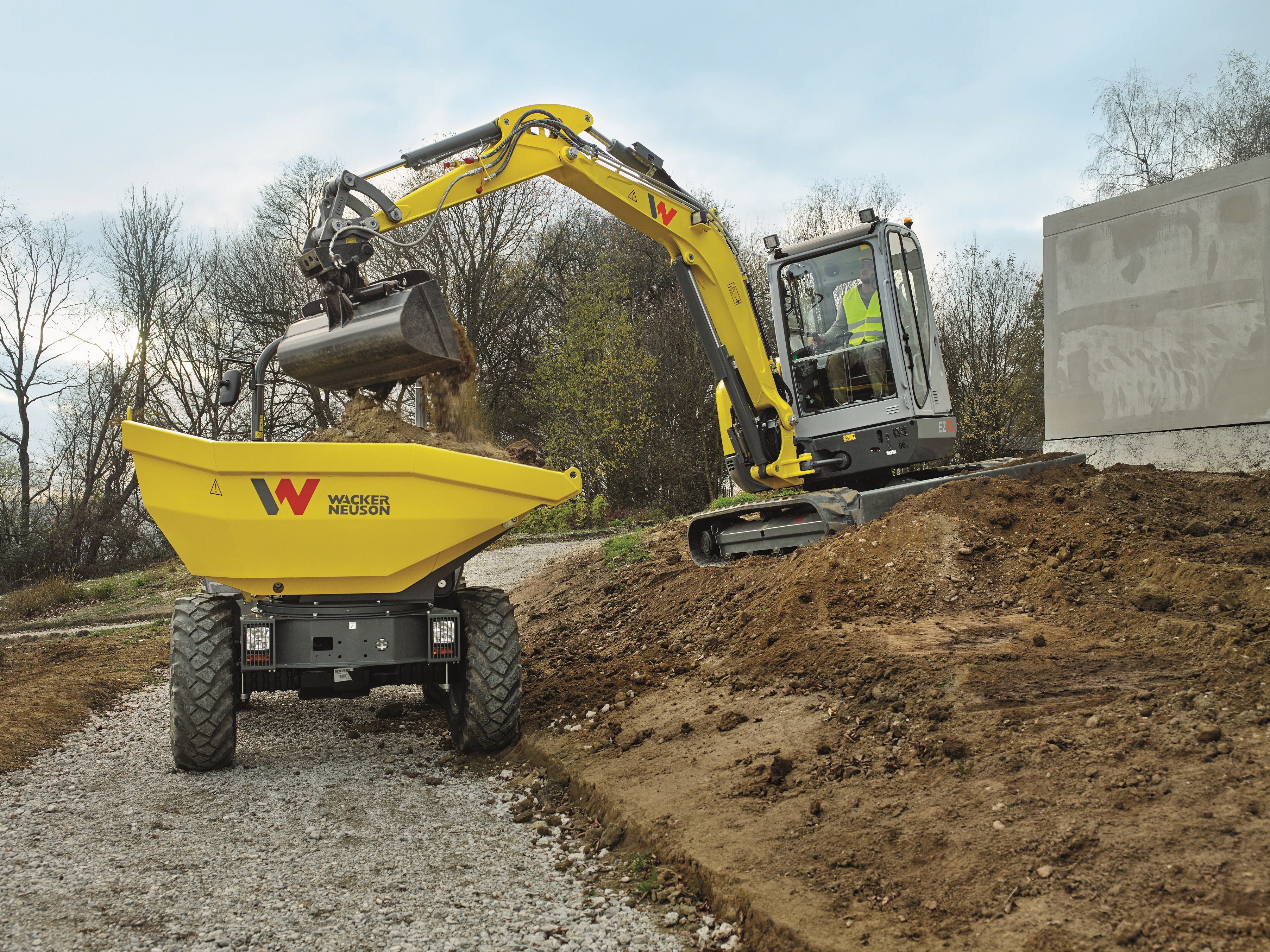

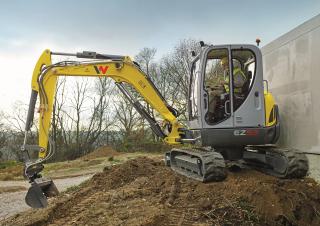

Wacker Neuson EZ53 is a mini excavator manufactured from 2016 to 2019, with a weight of 5.92 tons. It features a track width of 40…

Wacker Neuson EZ53 is a mini excavator manufactured from 2016 to 2019, with a weight of 5.92 tons. It features a track width of 400 mm, a transport length of 5.48 meters, a transport width of 1.99 meters, and a transport height of 2.57 meters. The machine has a tear-out force of 28 kN and a dredging depth of 3.75 meters. It is equipped with a blade and rubber tracks.

Visit Wacker Neuson live at

EZ53

Years of manufacture: 2016—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - EZ53 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.92 t

Transport length: 5.48 m

Transport width: 1.99 m

Transport height: 2.57 m

Track width: 400 mm

Driver protection: Kb

Max. Reach horizontal: 6.1 m

Dredging depth: 3.75 m

Tear-out force: 28 kN

Model series: EZ

Engine manuf.: Perkins

Engine type: 404D-22T

Engine power: 35.9 kW

Displacement: 2.216 l

Revolutions at max torque: 1900 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Wacker Neuson EZ53 FAQ

When was the Wacker Neuson EZ53 manufactured?

The Wacker Neuson EZ53 was manufactured from 2016 to 2019.

How much does the Wacker Neuson EZ53 weigh?

The Wacker Neuson EZ53 weighs 5.92 tons.

What are the transport dimensions of the Wacker Neuson EZ53 mini excavator?

The Wacker Neuson EZ53 has a transport length of 5.48 meters, a transport width of 1.99 meters, and a transport height of 2.57 meters.

What is the track width of the Wacker Neuson EZ53 mini excavator's undercarriage?

The Wacker Neuson EZ53 mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Wacker Neuson EZ53?

The Wacker Neuson EZ53 has a dredging depth of 3.75 meters and a maximum horizontal reach of 6.1 meters.

What is the tear-out force of the Wacker Neuson EZ53?

The Wacker Neuson EZ53 has a tear-out force of 28 kN.

What operator safety features does the Wacker Neuson EZ53 have?

The Wacker Neuson EZ53 has a cabin for driver protection.

How much is a Wacker Neuson EZ53 Mini excavator (2016u20132019) worth?

The residual value of the Wacker Neuson EZ53 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Wacker Neuson EZ53 overview

Wacker Neuson EZ53 features overview

zero tail – compact all around
Zero Tail Excavator for safe operation even in confined spaces. Ideal for digging near walls, roads, buildings or other surrounding boundaries such as inner cities or busy streets. Optional counterweights improve stability. wackerneuson.com compiled on 16.06.2016 Page: 2 / 6

Engine / Driveline and transmission

Best performance of its class
High excavation performance even in hard-to-reach areas. The EZ53 is the perfect equipment for operations close to walls or buildings. The rear of the EZ53 does not reach the undercarriage at all times without an operational position. Minimized space requirements are extremely practical on job sites in busy downtown centers or road construction sites with ongoing traffic. But not only its operating dimensions impress, but also its material handling and digging performances impressively. Remarkably higher engine and hydraulic capacities plus reduced fuel consumption at the same time. Maintenance made easy: tiltable cab and removable chassis lid provide quick and easy access, diagnostic tools offer further support. Perfectly equipped for multi-functional attachment tools: up to five additional control circuits available with unpressurised reflux. Numerous options ex works such as overload valves, idle speed automatics and more are available.
Engine for highest performance
Remarkably higher engine and hydraulic performances as well as reduced fuel consumption. Improved digging performance and more powerful turbo diesel engine provide better material handling results.

Tyres / Tracks

The first smart solution for the highest efficiency of excavation work on sloped terrain. VDS is available as an option for EZ53, VDS makes excavating particularly economical and therefore receives ECO seal. For more information on VDS visit:

Dimensions and weight

	short dipper stick	long dipper stick
A,Height mm,"2,570	2,570"
A,Height VDS mm,"2,570	2,570"
B,Width mm,"1,990	1,990"
C,Transport length mm,"5,499	5,477"
D,Digging depth max. mm,"3,501	3,751"
D	Digging depth VDS mm	3	394"	0
E,Insertion depth max. mm,"2,667	2,906"
E	Insertion depth VDS mm	2	542"	0
F,Insertion height max. mm,"5,299	5,459"
F	Insertion height VDS mm	5	405"	0
G,Dumping height max. mm,"3,679	3,837"
G	Dumping height VDS mm	3	784"	0

H Digging radius Max. mm,"5,987	6,225"
H Digging radius VDS mm	5	994"	0
I Range on the ground mm,"5,860	6,104"
I Range VDS mm	5	823"	0
J Rear swivel radius min. mm	995	995
K Arm displacement max. to middle of bucket right side mm	960	960
K Arm displacement max. to middle of bucket left side mm	853	0
L Lift height max. levelling blade above formation mm	415	415
M Scraping depth max. of levelling blade below formation mm	453	453
N Length of undercarriage mm,"2,524	2,524"
O Turning angle max. arm to the right °	61	61
P Turning angle max. arm to the left °	65	65
Q Width tracks mm	400	400

Other features

Comfortable cabin
Spacious cabin for sufficient room for movement. Sliding windows on both sides. Front windshield is divided into two. The lower screen slides behind the upper, both screens can be moved under the cab ceiling. wackerneuson.com compiled on 16.06.2016 Page: 1 / 6
