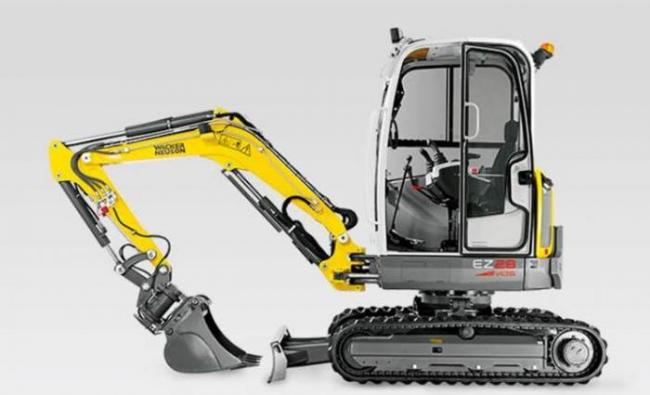

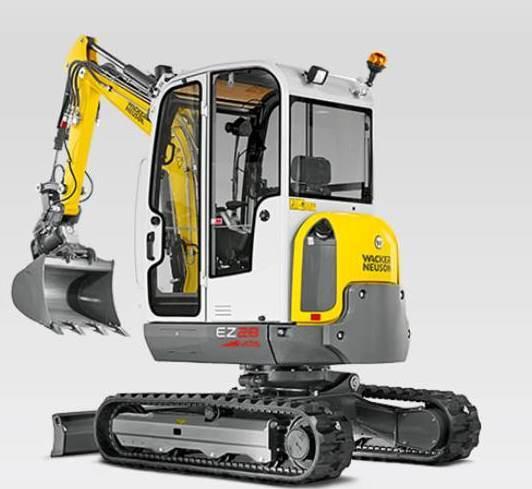

EZ28 Wacker Neuson excavator specs & dimensions (2013 - 2018)

Model rating: 10,00 / 10

Wacker Neuson EZ28 is a mini excavator manufactured from 2013 to 2018. It has a weight of 3.09 tons and a track width of 300 mm. T…

Wacker Neuson EZ28 is a mini excavator manufactured from 2013 to 2018. It has a weight of 3.09 tons and a track width of 300 mm. The transport dimensions are 4.27 meters in length, 1.57 meters in width, and 2.5 meters in height. The bucket width is 0.8 meters. This model comes equipped with a blade and rubber tracks.

Visit Wacker Neuson live at

EZ28

Years of manufacture: 2013—2018

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - EZ28 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.09 t

Transport length: 4.27 m

Transport width: 1.57 m

Transport height: 2.5 m

Bucket width: 0.8 m

Track width: 300 mm

Driver protection: KbR

Max. Reach horizontal: 4.68 m

Dredging depth: 2.74 m

Tear-out force: 16.6 kN

Model series: EZ

Engine manuf.: Yanmar

Engine type: 3TNV76

Engine power: 15.2 kW

Displacement: 1.116 l

Revolutions at max torque: 2500 rpm

No. of cylinders: 3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Wacker Neuson EZ28 FAQ

When was the Wacker Neuson EZ28 manufactured?

The Wacker Neuson EZ28 was manufactured from 2013 to 2018.

How much does the Wacker Neuson EZ28 weigh?

The Wacker Neuson EZ28 weighs 3.09 tons.

What are the transport dimensions of the Wacker Neuson EZ28 mini excavator?

The Wacker Neuson EZ28 has a transport length of 4.27 meters, a transport width of 1.57 meters, and a transport height of 2.5 meters.

What is the track width of the Wacker Neuson EZ28 mini excavator?

The Wacker Neuson EZ28 mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Wacker Neuson EZ28 mini excavator?

The Wacker Neuson EZ28 mini excavator has a dredging depth of 2.74 meters and a maximum horizontal reach of 4.68 meters.

What is the tear-out force of the Wacker Neuson EZ28 mini excavator?

The Wacker Neuson EZ28 mini excavator has a tear-out force of 16.6 kN.

What is the bucket width of the Wacker Neuson EZ28 mini excavator?

The Wacker Neuson EZ28 mini excavator has a bucket width of 0.8 meters.

What operator safety and support features does the Wacker Neuson EZ28 have?

The Wacker Neuson EZ28 is equipped with a cabin that includes ROPS for driver protection.

How much is a Wacker Neuson EZ28 Mini excavator (2013u20132018) worth?

The residual value of the Wacker Neuson EZ28 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Wacker Neuson EZ28 overview

Dimensions and weight

Shipping weight min.	2.575 kg
Operating weight min.	2.735 kg
Biting force max.	16	61 kN"
Breakaway force max.	2.766 daN
Digging depth	2.544 mm
Dumping height max.	2.840 mm
Digging radius	4.613 mm
L x W x H	4	255 x 1	570 x 2	408 mm"

Duty pump	Double variable- & two-gear pump
Flow rate	89	4 l/min"
Operating pressure for working and traction hydraulics	225 bar
Operating pressure Slewing gear	206 bar
Hydraulic oil tank	26	5 l"
Wheel set
Travel speed max.	3	8 km/h"
Gradeability	58 %
Chain width	300 mm
Ground clearance	277 mm

Tables

Engine / Motor manufacturer	Yanmar
Engine / Motor type	3TNV76
Engine / Motor	Water-cooled 3-cylinder diesel engine
Displacement	1.115 cm³
RPM / speed	2.500 rpm
Engine performance output to ISO	15	2 kW"
Battery	44 Ah
Tank capacity	35	2 l"

Width	1.570 mm
Height	290 mm
Stroke max.	above ground"	380 mm
Stroke max.	below ground"	419 mm
