EZ26 Wacker Neuson excavator specs & dimensions (2018 - 2019)

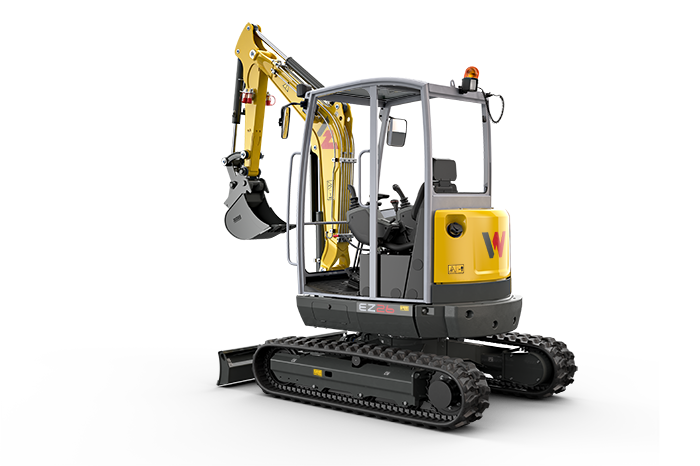

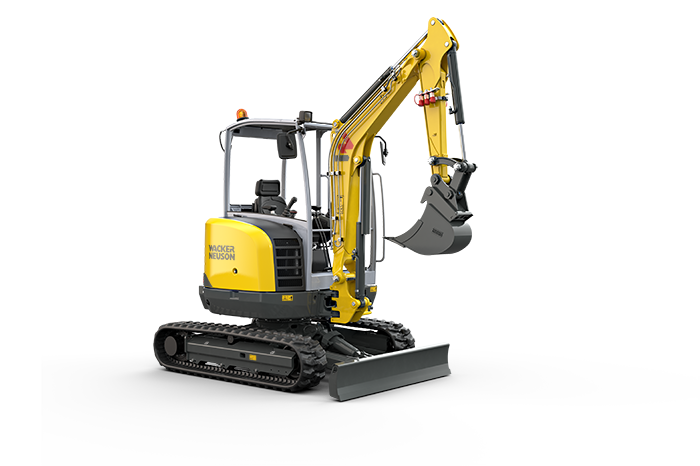

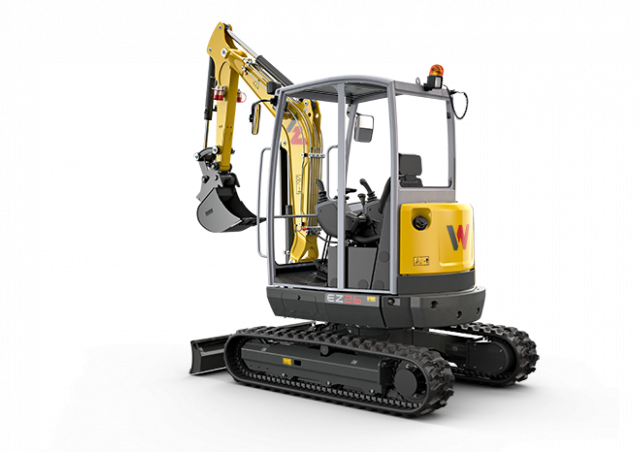

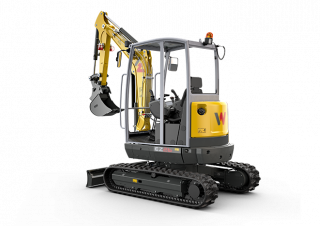

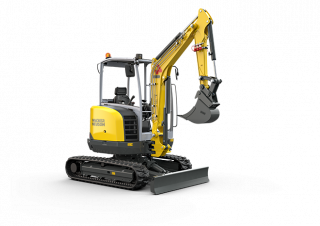

Wacker Neuson EZ26 is a Mini Excavator manufactured from 2018 to 2019. It has a weight of 2.22 tons and a track width of 300 mm. T…

Wacker Neuson EZ26 is a Mini Excavator manufactured from 2018 to 2019. It has a weight of 2.22 tons and a track width of 300 mm. The transport dimensions are 4.266 meters in length, 1.57 meters in width, and 2.14 meters in height. The machine features a tear-out force of 15.3 kN, a dredging depth of 2.744 meters, and a maximum horizontal reach of 4.806 meters. Special equipment includes a blade and rubber tracks.

Visit Wacker Neuson live at

EZ26

Years of manufacture: 2018—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - EZ26 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.22 t

Transport length: 4.266 m

Transport width: 1.57 m

Transport height: 2.14 m

Track width: 300 mm

Driver protection: Kb

Max. Reach horizontal: 4.806 m

Dredging depth: 2.744 m

Tear-out force: 15.3 kN

Model series: EZ

Engine manuf.: Yanmar

Engine type: 3TNV76

Engine power: 15.2 kW

Displacement: 1.116 l

Revolutions at max torque: 2500 rpm

No. of cylinders: 3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Wacker Neuson EZ26 FAQ

When was the Wacker Neuson EZ26 manufactured?

The Wacker Neuson EZ26 was manufactured from 2018 to 2019.

How much does the Wacker Neuson EZ26 weigh?

The Wacker Neuson EZ26 weighs 2.22 tons.

What are the transport dimensions of the Wacker Neuson EZ26 mini excavator?

The Wacker Neuson EZ26 has a transport length of 4.27 meters, a transport width of 1.57 meters, and a transport height of 2.14 meters.

What is the track width of the Wacker Neuson EZ26 mini excavator?

The Wacker Neuson EZ26 mini excavator has a track width of 300 mm.

What are the dredging depth and maximum horizontal reach of the Wacker Neuson EZ26 mini excavator?

The Wacker Neuson EZ26 mini excavator has a dredging depth of 2.744 meters and a maximum horizontal reach of 4.806 meters.

What is the tear-out force of the Wacker Neuson EZ26?

The Wacker Neuson EZ26 has a tear-out force of 15.3 kN.

What operator safety features does the Wacker Neuson EZ26 have?

The Wacker Neuson EZ26 has a cabin for driver protection.

How much is a Wacker Neuson EZ26 Mini excavator (2018u20132019) worth?

The residual value of the Wacker Neuson EZ26 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Wacker Neuson EZ26 overview

Dimensions and weight

Shipping weight	2	469 - 3	161 kg"
Operating weight	2	571 - 3	262 kg"
Biting force max.	15.3 kN
Breakout force max.	22.5 kN
Digging depth max.	2	744 mm"
Dumping height	2	840 - 3	087 mm"
Digging radius max.	4	806 mm"
Superstructure slewing speed	10 1/min
L x W x H	4	266 x 1	570 x 2	414 mm"
Engine / Motor
Engine / Motor manufacturer	Yanmar
Engine / Motor type	3TNV76
Engine / Motor	water-cooled 3-cylinder diesel engine
Displacement	1	116 cm³"
RPM / speed	2	500 rpm"
Engine performance output to ISO	15.2 kW
Battery	44 Ah
Tank capacity	36 l
Hydraulic system
Duty pump	bouble variable- & two-gear pump
Flow rate	30.8 l/min
Operating pressure for working and traction hydraulics	225 bar
Operating pressure slewing gear	206 bar
Hydraulic oil tank	26.5 l
Undercarriage
Travel speed max.	3.8 km/h
Chain width	300 mm
Ground clearance	277 mm
Dozer Blade
Width	1	570 mm"
Height	290 mm
Stroke max. above ground	380 mm
Stroke max. below ground	419 mm
Sound level
Sound level (LwA) acc. to 2000/14/EC	93 dB(A)
Cabin - specified sound pressure level LpA acc. to ISO 6394	79 dB(A)

			with VDS
A,Height,"2,414 mm	2,524 mm"
B	Width of the cabin	970 mm	970 mm
B,Width of the revolving superstructure,"1,340 mm	1,340 mm"
B,Width of the undercarriage,"1,570 mm	1,570 mm"
C,Transport length (short DA),"4,266 mm	4,199 mm"
C,Transport length (long DA),"4,272 mm	4,241 mm"
D,Digging depth max. (short DA),"2,544 mm	2,418 mm"
D,Digging depth max. (long DA),"2,744 mm	2,617 mm"
E,Insertion depth max. vertical (short DA),"1,962 mm	1,845 mm"
E,Insertion depth max. vertical (long DA),"2,152 mm	2,035 mm"
F,Insertion height max. (short DA),"4,169 mm	4,300 mm"
F,Insertion height max. (long DA),"4,299 mm	4,430 mm"
G,Dump height max. (short DA),"2,840 mm	2,960 mm"
G,Dump height max. (long DA),"2,970 mm	3,087 mm"
H,Digging radius max. (short DA),"4,613 mm	4,614 mm"
H,Digging radius max. (long DA),"4,805 mm	4,806 mm"
I,Range max. ground coverage (short DA),"4,481 mm	4,443 mm"
I,Range max. ground coverage (long DA),"4,681 mm	4,644 mm"
J	Rear swivel radius	759 mm	759 mm
K	Arm displacement max. boom offset to center of bucket	right side"	764 mm	765 mm
K	Arm displacement max. boom offset to center of bucket	left side"	533 mm	534 mm
L	Lift height max. of dozer blade above subgrade	380 mm	388 mm
M	Scraping depth max. of the dozer blade below subgrade	419 mm	411 mm
N,Length,"2,006 mm	2,006 mm"
O	Turning angle max. of the arm system to the right	50 °	50 °
P	Turning angle max. of the arm system to the left	75 °	75 °
Q	Chain width	300 mm	300 mm
--	Distance of bucket dozer blade (short DA)	354 mm	326 mm
--	Distance of bucket dozer blade (long DA)	259 mm	218 mm
R,Boom slewing radius center,"2,080 mm	2,054 mm"
--,Boom slewing radius right,"1,960 mm	1,943 mm"

--,Boom slewing radius left,"1,641 mm	1,640 mm"
--,Length total traveling gear,"2,006 mm	2,021 mm"
--,Width dozer blade,"1,570 mm	1,570 mm"
--	Height dozer blade	300 mm	300 mm
DA = dipper arm

Other features

The design for champions: EZ26
The compact excavator EZ26 guarantees modern design, flexibility and ease of use. Transport by car trailer to the next job site? No problem - the low weight allows transport including attachment tool using 3,5t trailers. An innovative windshield mechanism for easy ventilation ensures work comfort and facilitates communication between driver and colleague. Control lever carrier, wide cab entrance and arrangement of operator and indicator elements of the EZ26 are ergonomically perfectly adapted to your workplace needs. The redesigned cabin on the EZ26 is ergonomical and spacious. Large, double sided sliding disc. Magnetic slewing light (LED) can be quickly attached and released at any time. LED light features high luminosity and low power consumption. Zero tail swings designed to work in tightest and narrow spaces. Optional Vertical Digging System (VDS) and EASY LOCK. wackerneuson.com compiled on 07 February 2019 Page 1
