EZ17 Wacker Neuson excavator specs & dimensions (2013 - 2019)

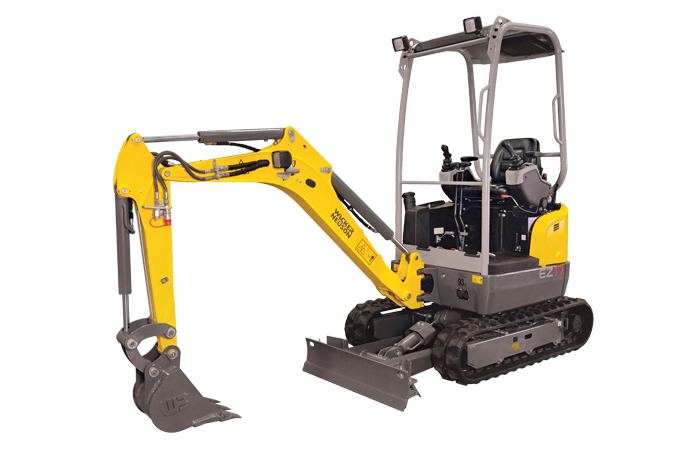

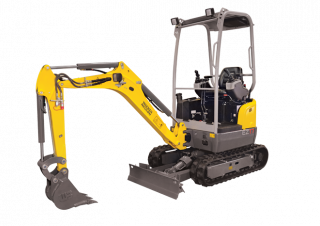

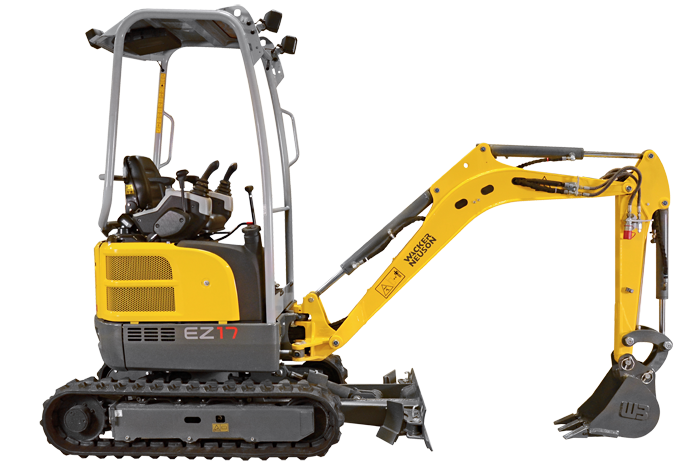

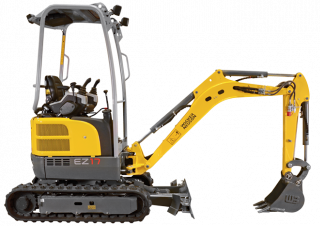

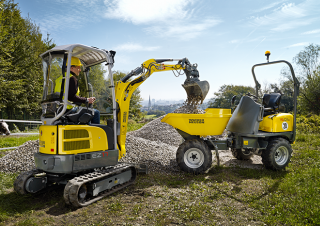

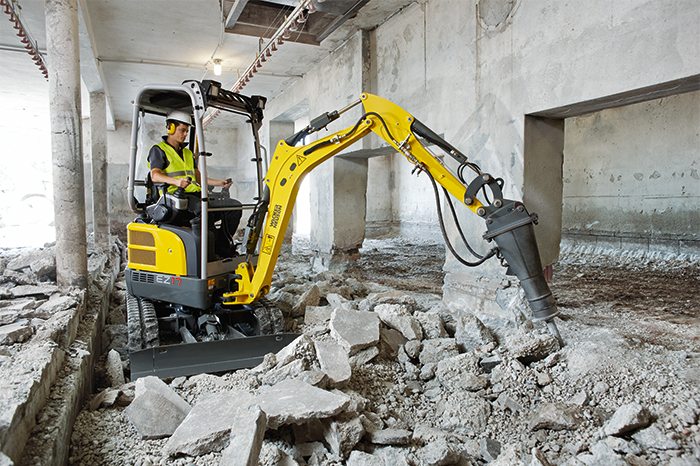

Wacker Neuson EZ17 is a mini excavator manufactured from 2013 to 2019, with a weight of 1.7 t. It features a track width of 230 mm…

Wacker Neuson EZ17 is a mini excavator manufactured from 2013 to 2019, with a weight of 1.7 t. It features a track width of 230 mm, a transport length of 3.58 m, a transport width of 0.99 m, and a transport height of 2.36 m. The bucket width is 0.6 m, and it comes equipped with a blade.

Visit Wacker Neuson live at

EZ17

Years of manufacture: 2013—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - EZ17 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.7 t

Transport length: 3.58 m

Transport width: 0.99 m

Transport height: 2.36 m

Bucket width: 0.6 m

Track width: 230 mm

Max. Reach horizontal: 3.85 m

Dredging depth: 2.33 m

Tear-out force: 8.39 kN

Model series: EZ

Engine manuf.: Yanmar

Engine type: 3TNV76

Engine power: 13.4 kW

Displacement: 1.116 l

Revolutions at max torque: 2200 rpm

No. of cylinders: 3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., standard tyres, driver protection, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: No
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Wacker Neuson EZ17 FAQ

When was the Wacker Neuson EZ17 manufactured?

The Wacker Neuson EZ17 was manufactured from 2013 to 2019.

How much does the Wacker Neuson EZ17 weigh?

The Wacker Neuson EZ17 weighs 1.7 tons.

What are the transport dimensions of the Wacker Neuson EZ17 mini excavator?

The Wacker Neuson EZ17 has a transport length of 3.58 meters, a transport width of 0.99 meters, and a transport height of 2.36 meters.

What is the track width of the Wacker Neuson EZ17 mini excavator?

The Wacker Neuson EZ17 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Wacker Neuson EZ17?

The Wacker Neuson EZ17 has a dredging depth of 2.33 meters and a maximum horizontal reach of 3.85 meters.

What is the tear-out force of the Wacker Neuson EZ17 mini excavator?

The Wacker Neuson EZ17 mini excavator has a tear-out force of 8.39 kN.

What is the bucket width of the Wacker Neuson EZ17 mini excavator?

The bucket width of the Wacker Neuson EZ17 mini excavator is 0.6 meters.

How much is a Wacker Neuson EZ17 Mini excavator (2013u20132019) worth?

The residual value of the Wacker Neuson EZ17 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Wacker Neuson EZ17 overview

Hydraulics

Cab - specifi c sound pressure level lpa acc. iso 6394 79 db, wackerneuson.com created on 29.06.2018 Page: 3

Dimensions and weight

Engine / Motor manufacturer		Yanmar
Engine / Motor type		3TNV76
Engine / Motor	Water-cooled 3-cylinder diesel engine
Displacement	1	116 cm³"
RPM / speed		2	200 rpm"
Engine performance output to ISO		13.4 kW
Battery		30 Ah
Tank capacity		22 l
Hydraulic system
Flow rate		39.6 l/min
Operating pressure for working and traction hydraulics		240 bar
Operating pressure Slewing gear		150 bar
Hydraulic oil tank		21 l
Undercarriage
Travel speed max.		4.8 km/h
Chain width		230 mm
Ground clearance		156 mm
Dozer Blade
Width		1	300 mm"
Height		230 mm
Sound level
Sound level (LwA) acc. to 2000/14/EC		93 dB(A)

A	Height	2	362 mm"
B	Width of canopy	885 mm
B	Width of revolving superstructure	990 mm
B,"Width Undercarriage width, retracted	1,300 mm"
C	Transport length (short dipper arm)	3	584 mm"
C	Transport length (long dipper arm)	3	551 mm"
D	Digging depth max. Max. (short dipper arm)	2	326 mm"
D	Digging depth max. Max. (long dipper arm)	2	486 mm"
E	Insertion depth Max. vertical (short dipper arm)	1	713 mm"
E	Insertion depth Max. vertical (long dipper arm)	1	863 mm"

F	Insertion height Max. (short dipper arm)	3	462 mm"
F	Insertion height Max. (long dipper arm)	3	576 mm"
G	Dump height max. Max. (short dipper arm)	2	436 mm"
G	Dump height max. Max. (long dipper arm)	2	550 mm"
H	Digging radius max. Max. (short dipper arm)	3	899 mm"
H	Digging radius max. Max. (long dipper arm)	4	050 mm"
I	Range Max. span on the ground (short dipper arm)	3	848 mm"
I	Range Max. span on the ground (long dipper arm)	4	002 mm"
J	Rear swivel radius Min.	660 mm
K	Arm displacement Max. boom offset to centre of bucket	right side"	533 mm
K	Arm displacement Max. boom offset to centre of bucket	left side"	418 mm
L	Lift height Max. dozer blade above ground	271 mm
M	Scraping depth Max. dozer blade below ground	390 mm
N	Length Total crawler	1	607 mm"
O	Turning angle Max. right	57 °
P	Turning angle Max. left	65 °
Q	Chain width	230 mm
--	Distance bucket and depth dozer blade (short dipper arm)	332 mm
--	Distance bucket and depth dozer blade (long dipper arm)	260 mm
R	Boom slewing radius center	1	627 mm"
--	Boom slewing radius right	1	519 mm"
--	Boom slewing radius left	1	372 mm"
--	Height Dozer blade	230 mm
