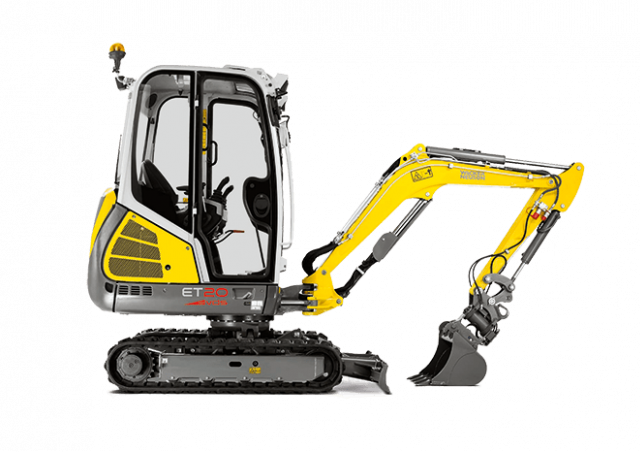

ET20 Wacker Neuson excavator specs & dimensions (2012 - 2019)

Wacker Neuson ET20 is a mini excavator manufactured from 2012 to 2019, with a weight of 2.08 tons. It features a track width of 23…

Wacker Neuson ET20 is a mini excavator manufactured from 2012 to 2019, with a weight of 2.08 tons. It features a track width of 230 mm, a transport length of 4.049 meters, a transport width of 0.99 meters, and a transport height of 2.295 meters. The machine has a dredging depth of 2.483 meters and a maximum horizontal reach of 4.031 meters. The bucket width is 0.6 meters. Special equipment includes air conditioning, rubber tracks, and track adjustment.

Mini Excavators Wacker Neuson ET20
Mini Excavators Wacker Neuson ET20
Mini Excavators Wacker Neuson ET20
Mini Excavators Wacker Neuson ET20
Mini Excavators Wacker Neuson ET20
Mini Excavators Wacker Neuson ET20
Mini Excavators Wacker Neuson ET20
Mini Excavators Wacker Neuson ET20

Visit Wacker Neuson live at

Technical specs - ET20 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.08 t
Transport length
4.049 m
Transport width
0.99 m
Transport height
2.295 m
Bucket width
0.6 m
Track width
230 mm
Driver protection
KbR
Max. Reach horizontal
4.031 m
Dredging depth
2.483 m
Tear-out force
18.8 kN
Model series
ET
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
13.2 kW
Displacement
1.116 l
Revolutions at max torque
2200 rpm
No. of cylinders
3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Wacker Neuson ET20 FAQ

When was the Wacker Neuson ET20 manufactured?

The Wacker Neuson ET20 was manufactured from 2012 to 2019.

How much does the Wacker Neuson ET20 weigh?

The Wacker Neuson ET20 weighs 2.08 tons.

What are the transport dimensions of the Wacker Neuson ET20 mini excavator?

The Wacker Neuson ET20 has a transport length of 4.05 meters, a transport width of 0.99 meters, and a transport height of 2.3 meters.

What is the track width of the Wacker Neuson ET20's undercarriage?

The Wacker Neuson ET20 has a track width of 230 mm on its undercarriage.

What are the excavation performance specifications of the Wacker Neuson ET20?

The Wacker Neuson ET20 has a dredging depth of 2.483 meters and a maximum horizontal reach of 4.031 meters.

What is the tear-out force of the Wacker Neuson ET20 mini excavator?

The Wacker Neuson ET20 has a tear-out force of 18.8 kN.

What is the bucket width of the Wacker Neuson ET20 mini excavator?

The bucket width of the Wacker Neuson ET20 mini excavator is 0.6 meters.

What operator safety and support features does the Wacker Neuson ET20 have?

The Wacker Neuson ET20 is equipped with a cabin that includes ROPS for driver protection.

How much is a Wacker Neuson ET20 Mini excavator (2012u20132019) worth?

The residual value of the Wacker Neuson ET20 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Wacker Neuson ET20 overview

Dimensions and weight

Duty pumpDouble variable pump with 2 gear pumps
Flow rate max.73 l/min
Operating pressure for working and traction hydraulics200 bar
Operating pressure Slewing gear150 bar
RPM / speed Superstructure10 rpm
Hydraulic oil tank Contents19 l

Tables

Engine / Motor manufacturerYanmar
Engine / Motor type3TNV76
Engine / MotorWater-cooled 3-cylinder diesel engine
Displacement1.116 cm³
RPM / speed2.200 rpm
Engine performance acc. to ISO134 kW"
Battery Voltage44 Ah
Tank capacity24 l
Sound level (LwA) acc. to 2000/14/EC93 dB(A)
Cabin - specified sound pressure level LpA acc. to ISO 639477 dB(A)
Width990 mm
Height220 mm
Stroke Standard dozer blade above ground220 mm
Stroke Standard dozer blade below ground300 mm
Travel speed max.41 km/h"
Gradeability max.58 %
Chain width250 mm
Ground clearance170 mm
