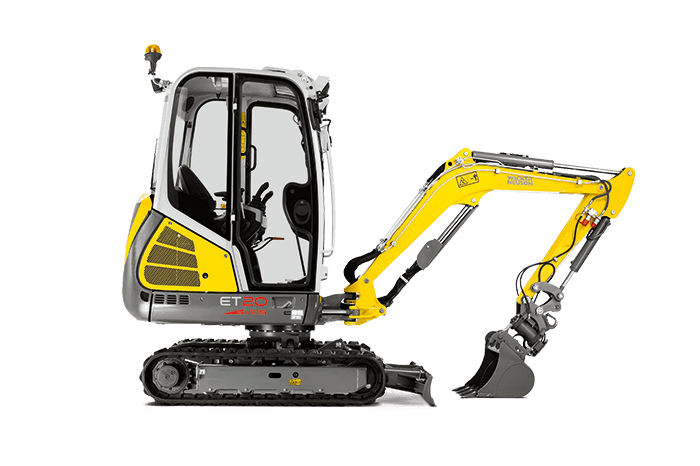

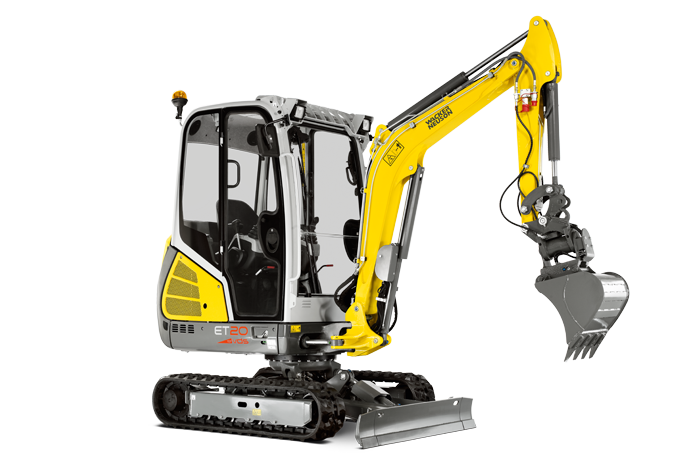

ET20 Wacker Neuson excavator specs & dimensions (2014 - 2019)

Wacker Neuson ET20 is a mini excavator manufactured from 2014 to 2019, with a weight of 2.08 tons. It features a track width of 23…

Wacker Neuson ET20 is a mini excavator manufactured from 2014 to 2019, with a weight of 2.08 tons. It features a track width of 230 mm, a transport length of 4.09 meters, a transport width of 0.99 meters, and a transport height of 2.29 meters. The bucket width is 0.6 meters.

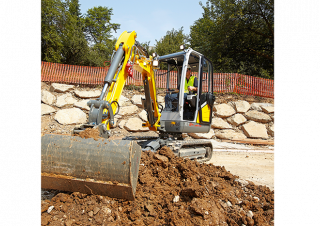

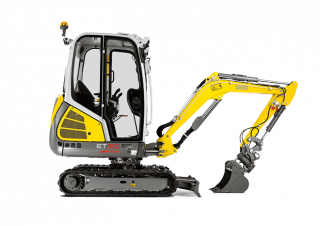

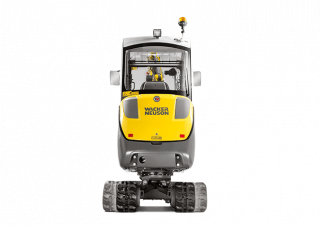

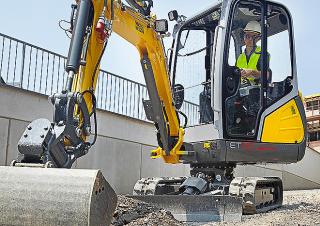

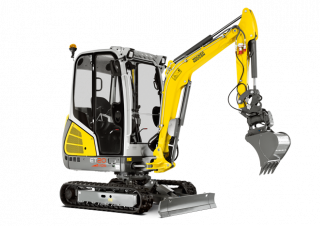

Mini Excavators Wacker Neuson ET20
Mini Excavators Wacker Neuson ET20
Mini Excavators Wacker Neuson ET20
Mini Excavators Wacker Neuson ET20
Mini Excavators Wacker Neuson ET20
Mini Excavators Wacker Neuson ET20
Mini Excavators Wacker Neuson ET20
Mini Excavators Wacker Neuson ET20
Mini Excavators Wacker Neuson ET20
Mini Excavators Wacker Neuson ET20
Mini Excavators Wacker Neuson ET20
Mini Excavators Wacker Neuson ET20
Mini Excavators Wacker Neuson ET20
Mini Excavators Wacker Neuson ET20

Visit Wacker Neuson live at

Technical specs - ET20 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.08 t
Transport length
4.09 m
Transport width
0.99 m
Transport height
2.29 m
Bucket width
0.6 m
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
4.22 m
Dredging depth
2.68 m
Tear-out force
18.8 kN
Model series
ET
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
13.2 kW
Displacement
1.116 l
Revolutions at max torque
2200 rpm
No. of cylinders
3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Wacker Neuson ET20 FAQ

When was the Wacker Neuson ET20 manufactured?

The Wacker Neuson ET20 was manufactured from 2014 to 2019.

How much does the Wacker Neuson ET20 weigh?

The Wacker Neuson ET20 weighs 2.08 tons.

What are the transport dimensions of the Wacker Neuson ET20 mini excavator?

The Wacker Neuson ET20 has a transport length of 4.09 meters, a transport width of 0.99 meters, and a transport height of 2.29 meters.

What is the track width of the Wacker Neuson ET20 mini excavator?

The Wacker Neuson ET20 mini excavator has a track width of 230 mm.

What are the dredging depth and maximum horizontal reach of the Wacker Neuson ET20?

The Wacker Neuson ET20 has a dredging depth of 2.68 meters and a maximum horizontal reach of 4.22 meters.

What is the tear-out force of the Wacker Neuson ET20, given that no power ratings are provided?

The Wacker Neuson ET20 has a tear-out force of 18.8 kN. No power ratings are provided in the available data.

What is the bucket width of the Wacker Neuson ET20 mini excavator?

The bucket width of the Wacker Neuson ET20 mini excavator is 0.6 meters.

What operator safety and support features does the Wacker Neuson ET20 have?

The Wacker Neuson ET20 is equipped with a canopy for driver protection.

How much is a Wacker Neuson ET20 Mini excavator (2014u20132019) worth?

The residual value of the Wacker Neuson ET20 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Wacker Neuson ET20 overview

Dimensions and weight

Shipping weight min.1862 kg"
Operating weight2005 - 2324 kg"
Biting force max.12.5 kN
Breakout force max.18.8 kN
Digging depth max.2683 mm"
Dumping height2713 - 2836 mm
Digging radius max.4317 mm"
L x W x H min.4049 x 990 x 2295 mm
Engine / Motor
Engine / Motor manufacturerYanmar
Engine / Motor type3TNV76
Engine / MotorWater-cooled 3-cylinder diesel engine
Displacement1116 cm³"
RPM / speed2200 rpm"
Engine performance acc. to ISO13.4 kW
Battery Voltage44 Ah
Fuel tank capacity24 l
Hydraulic system
Duty pumpDouble variable pump with 2 gear pumps
Flow rate max.23.8 l/min
Operating pressure for working and traction hydraulics200 bar
Operating pressure Slewing gear150 bar
RPM / speed Superstructure10 rpm
Hydraulic oil tank Contents19 l
Undercarriage
Travel speed max.4.1 km/h
Chain width250 mm
Ground clearance170 mm
Dozer Blade
Width990 mm
Height220 mm
Stroke Standard dozer blade above ground220 mm
Stroke Standard dozer blade below ground300 mm
VDS
A,Height,"2,295 mm2,388 mm"
BWidth Superstructure990 mm990 mm
BWidth undercarriage retracted990 mm990 mm
B,Width undercarriage extended (telescopic undercarriage only),"1,300 mm1,300 mm"
BWidth Dozer blade990 mm990 mm
B,Width Dozer blade width with extension (telescopic undercarriage only),"1,300 mm1,300 mm"
C,Transport length,"4,049 mm4,024 mm"
D,Digging depth max. Max. (short dipper stick),"2,483 mm2,391 mm"
D,Digging depth max. Max. (long dipper stick),"2,683 mm2,590 mm"
E,"Insertion depth Max. , vertikal (short dipper stick)1,660 mm1,567 mm"
E,"Insertion depth Max., vertikal (long dipper stick)1,845 mm1,752 mm"
F,Insertion height Max. (short dipper stick),"3,836 mm3,929 mm"
F,Insertion height Max. (long dipper stick),"3,959 mm4,052 mm"
G,Dump height max. Max. (short dipper stick),"2,713 mm2,805 mm"
G,Dump height max. Max. (long dipper stick),"2,836 mm2,928 mm"
H,Digging radius max. Max. (short dipper stick),"4,129 mm4,129 mm"
H,Digging radius max. Max. (long dipper stick),"4,317 mm4,317 mm"
I,"Range Max.,on the ground (short dipper stick)4,031 mm4,005 mm"
I,"Range Max. ,on the ground (long dipper stick)4,225 mm4,201 mm"
J,Rear swivel radius Min.,"1,169 mm1,169 mm"
KArm displacement Max. to centre of bucket right side"516 mm516 mm
KArm displacement Max. to centre of bucket left side"359 mm359 mm
LLift height Max. of dozer blade above ground (short)"216 mm264 mm
LLift height Max. of dozer blade above ground (long)"299 mm353 mm
MScraping depth Max. of dozer blade below ground (short)"297 mm255 mm
MScraping depth Max. of dozer blade below ground (long)"362 mm312 mm
N,Length Total crawler length (standard undercarriage),"1,708 mm1,709 mm"
--,Length Crawler length Sprocket wheel (standard undercarriage),"1,325 mm1,326 mm"
OTurning angle Max. of boom system to the right48 °48 °
PTurning angle Max. of boom system to the left77 °77 °
R,Boom slewing radius centre,"1,666 mm1,666 mm"
--,Boom slewing radius right,"1,582 mm1,582 mm"
--,Boom slewing radius left max.,"1,356 mm1,356 mm"
--,Boom slewing radius left lock,"1,449 mm1,450 mm"
ZHeight Dozer blade230 mm230 mm

Tables

Sound level (LwA) acc. to 2000/14/EC93 dB(A)
Cabin - specified sound pressure level LpA acc. to ISO 639475.8 dB(A)
