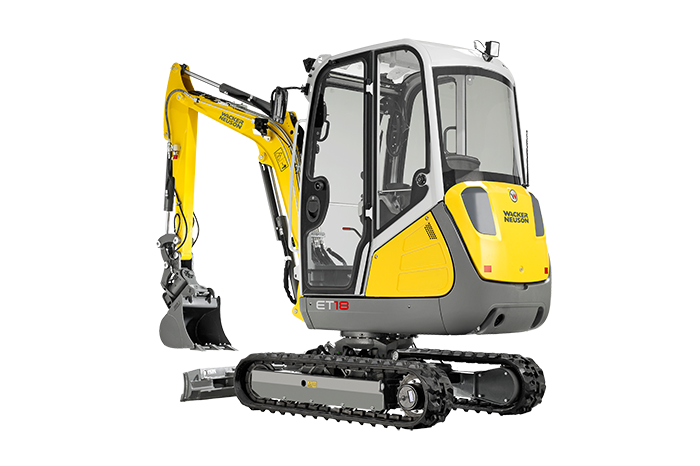

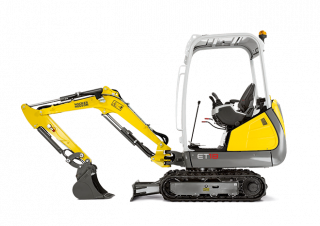

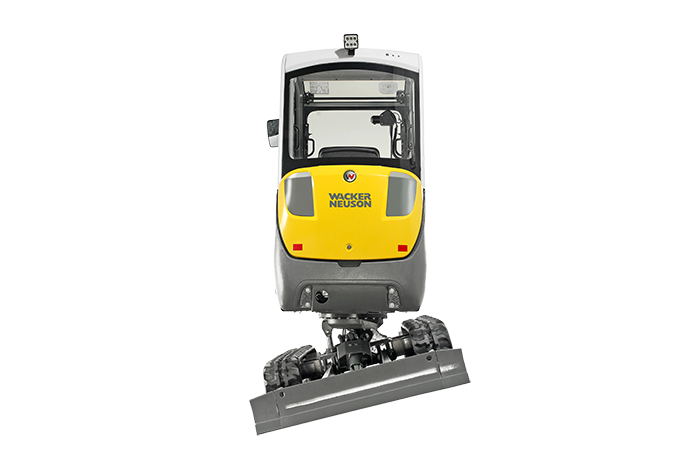

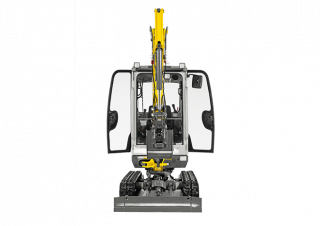

ET18 Wacker Neuson excavator specs & dimensions (2017 - 2019)

Wacker Neuson ET18 is a mini excavator manufactured from 2017 to 2019, with a weight of 1.84 tons. It features a track width of 23…

Wacker Neuson ET18 is a mini excavator manufactured from 2017 to 2019, with a weight of 1.84 tons. It features a track width of 230 mm and has transport dimensions of 3.85 meters in length, 0.99 meters in width, and 2.29 meters in height. The excavator is equipped with a blade.

Visit Wacker Neuson live at

ET18

Years of manufacture: 2017—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - ET18 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.84 t

Transport length: 3.85 m

Transport width: 0.99 m

Transport height: 2.29 m

Track width: 230 mm

Driver protection: Kb

Max. Reach horizontal: 3.89 m

Dredging depth: 2.2 m

Tear-out force: 11.2 kN

Model series: ET

Engine manuf.: Yanmar

Engine type: 3TNV76

Engine power: 13.2 kW

Displacement: 1.116 l

Revolutions at max torque: 2200 rpm

No. of cylinders: 3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: No
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Wacker Neuson ET18 FAQ

When was the Wacker Neuson ET18 manufactured?

The Wacker Neuson ET18 was manufactured from 2017 to 2019.

How much does the Wacker Neuson ET18 weigh?

The Wacker Neuson ET18 weighs 1.84 tons.

What are the transport dimensions of the Wacker Neuson ET18 mini excavator?

The Wacker Neuson ET18 has a transport length of 3.85 meters, a transport width of 0.99 meters, and a transport height of 2.29 meters.

What is the track width of the Wacker Neuson ET18 mini excavator?

The Wacker Neuson ET18 has a track width of 230 mm.

What are the excavation performance specifications of the Wacker Neuson ET18?

The Wacker Neuson ET18 has a dredging depth of 2.2 meters and a maximum horizontal reach of 3.89 meters.

What is the tear-out force of the Wacker Neuson ET18 mini excavator?

The Wacker Neuson ET18 has a tear-out force of 11.2 kN. No power ratings are provided in the available data.

What driver protection feature does the Wacker Neuson ET18 have?

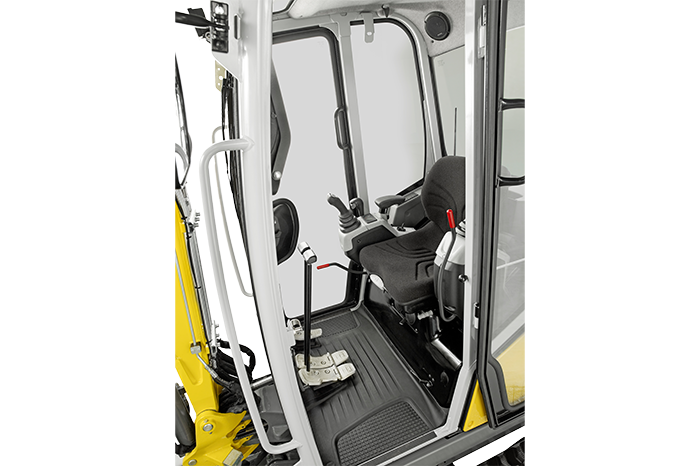

The Wacker Neuson ET18 has a cabin for driver protection.

How much is a Wacker Neuson ET18 Mini excavator (2017u20132019) worth?

The residual value of the Wacker Neuson ET18 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Wacker Neuson ET18 overview

Dimensions and weight

Hydraulic system
Duty pump	Double variable pump with 2 gear pumps
Flow rate max.	23.8 l/min
Operating pressure for working and traction hydraulics	200 bar
Operating pressure Slewing gear	125 bar
RPM / speed Superstructure	10 rpm
Hydraulic oil tank Contents	19 l
Undercarriage
Travel speed max.	5.3 km/h
Chain width	230 mm
Ground clearance Standard undercarriage	210 mm

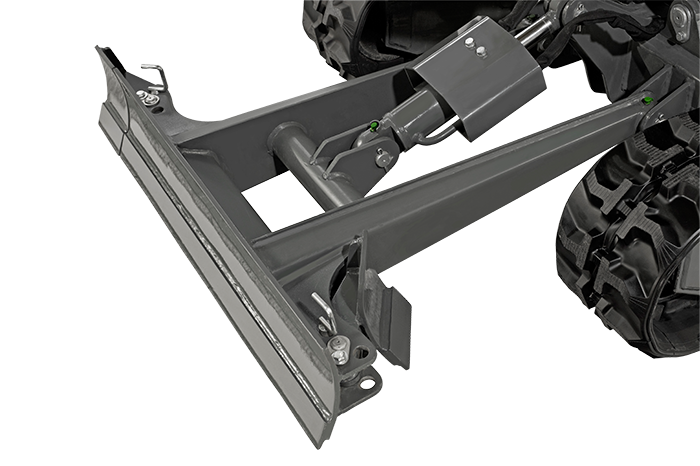

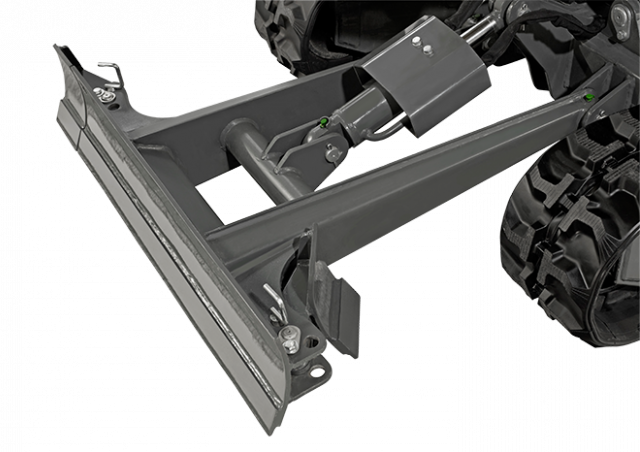

Dozer Blade
Width	990 mm
Height	230 mm
Stroke Standard dozer blade above ground	200 mm

			VDS
A,Height,"2,285 mm	2,392 mm"
B	Width Superstructure	990 mm	990 mm
B	Width undercarriage retracted	990 mm	990 mm
B,Width undercarriage extended (telescopic undercarriage only),"1,300 mm	1,300 mm"
B	Width Dozer blade	990 mm	990 mm
B,Width Dozer blade width with extension (telescopic undercarriage only),"1,300 mm	1,300 mm"
C,Transport length,"3,854 mm	3,801 mm"
D,Digging depth max. Max. (short dipper stick),"2,202 mm	2,095 mm"

D,Digging depth max. Max. (long dipper stick),"2,402 mm	2,295 mm"
E,"Insertion depth Max., vertikal (short dipper stick)	1,415 mm	1,309 mm"
E,"Insertion depth Max., vertikal (long dipper stick)	1,600 mm	1,493 mm"
F,Insertion height Max. (short dipper stick),"3,447 mm	3,553 mm"
F,Insertion height Max. (long dipper stick),"3,558 mm	3,663 mm"
G,Dump height max. Max. (short dipper stick),"2,510 mm	2,611 mm"
G,Dump height max. Max. (long dipper stick),"2,621 mm	2,722 mm"
H,Digging radius max. Max. (short dipper stick),"3,802 mm	3,802 mm"
H,Digging radius max. Max. (long dipper stick),"3,989 mm	3,989 mm"
I,"Range Max. ,on the ground (short dipper stick)	3,700 mm	3,668 mm"
I,"Range Max. ,on the ground (long dipper stick)	3,894 mm	3,864 mm"
J,Rear swivel radius Min.,"1,169 mm	1,169 mm"
K	Arm displacement Max.	to centre of bucket	right side"	516 mm	516 mm
K	Arm displacement Max.	to centre of bucket	left side"	359 mm	359 mm
L	Lift height Max.	of dozer blade above ground (short)"	198 mm	268 mm
L	Lift height Max.	of dozer blade above ground (long)"	281 mm	357 mm
M	Scraping depth Max.	of dozer blade below ground (short)"	316 mm	251 mm
M	Scraping depth Max.	of dozer blade below ground (long)"	381 mm	308 mm
N,Length Total crawler length (standard undercarriage),"1,462 mm	1,465 mm"
N,Length Total crawler length (telescopic undercarriage),"1,607 mm	1,607 mm"
--,Length Crawler length Sprocket wheel (standard undercarriage),"1,080 mm	1,079 mm"
--,Length Crawler length Sprocket wheel (telescopic undercarriage),"1,225 mm	1,224 mm"
O	Turning angle Max. of boom system to the right	48 °	48 °

P	Turning angle Max. of boom system to the left	77 °	77 °
Q	Chain width	230 mm	230 mm
R,Boom slewing radius centre,"1,584 mm	1,584 mm"
--,Boom slewing radius right,"1,503 mm	1,503 mm"
--,Boom slewing radius left max.,"1,283 mm	1,283 mm"
--,Boom slewing radius left lock,"1,374 mm	1,374 mm"
Z	Height Dozer blade	230 mm	230 mm

Tables

Stroke Standard dozer blade below ground	320 mm
Sound level
Sound level (LwA) acc. to 2000/14/EC	93 dB(A)
Cabin - specified sound pressure level LpA acc. to ISO 6394	75.8 dB(A)
