ECR58 Volvo excavator specs & dimensions (2009 - 2014)

Model rating
8,50 / 10

Volvo ECR58 is a mini excavator manufactured from 2009 to 2014, with a weight of 5.4 tons. It features a track width of 400 mm, a …

Volvo ECR58 is a mini excavator manufactured from 2009 to 2014, with a weight of 5.4 tons. It features a track width of 400 mm, a transport length of 5.6 meters, a transport width of 2 meters, and a transport height of 2.58 meters. The machine has a tear-out force of 39 kN and supports a bucket width of 0.6 meters, with a bucket capacity ranging from 0.07 m³ to 0.265 m³. Special equipment includes air conditioning, a blade, and rubber tracks.

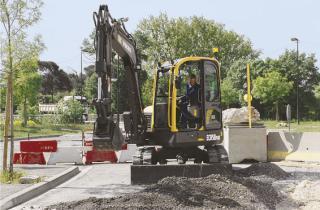

Mini Excavators Volvo ECR58

Visit Volvo live at

Technical specs - ECR58 Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.4 t
Transport length
5.6 m
Transport width
2 m
Transport height
2.58 m
Bucket capacity min.
0.070 m³
Bucket capacity max.
0.265 m³
Bucket width
0.6 m
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
6.46 m
Dredging depth
4.24 m
Tear-out force
39 kN
Model series
ECR
Engine manuf.
Volvo
Engine type
D 3.1
Engine power
38.2 kW
Displacement
3.1 l
Revolutions at max torque
1400 rpm

More technical details, like: bucket capacity, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo ECR58 FAQ

When was the Volvo ECR58 manufactured?

The Volvo ECR58 was manufactured from 2009 to 2014.

How much does the Volvo ECR58 weigh?

The Volvo ECR58 weighs 5.4 tons.

What are the transport dimensions of the Volvo ECR58 mini excavator?

The Volvo ECR58 has a transport length of 5.6 meters, a transport width of 2 meters, and a transport height of 2.58 meters.

What is the track width of the Volvo ECR58 mini excavator?

The Volvo ECR58 mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Volvo ECR58 mini excavator?

The Volvo ECR58 mini excavator has a dredging depth of 4.24 meters and a maximum horizontal reach of 6.46 meters.

What is the tear-out force of the Volvo ECR58 mini excavator?

The Volvo ECR58 mini excavator has a tear-out force of 39 kN.

What are the specifications of the primary work tool bucket on the Volvo ECR58 mini excavator?

The Volvo ECR58 mini excavator's primary work tool bucket has a maximum capacity of 0.27 cubic meters, a minimum capacity of 0.07 cubic meters, and a width of 0.6 meters.

What driver protection feature does the Volvo ECR58 have?

The Volvo ECR58 has driver protection in the form of a cabin.

How much is a Volvo ECR58 Mini excavator (2009u20132014) worth?

The residual value of the Volvo ECR58 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Reviews

Model rating
8,50 / 10
Quotation mark

Volvo ECR58 user from Norway

It's a good macine

Volvo ECR58 overview

Volvo ECR58 features overview

STANDARD EQUIPMENTSTATECTTION Engine Emission armer Volvo diesel engine. Dry type, dual-elementing air filter with indicator). (indicr), gas splitted. Electric air input unit taps the cold start aid. Fuel filter w/transpalare dumping valve for diesel fuel tank. Oil sum sheet sheet metal sheetplate plate screen protection. Automatic rear-to-idl system. Turning wheel control for engine speed. Long maintenance intervals Electrical system Electrical System Electronical Switch Circuit Breakbreak breakers. Water resistant electrical connectors (IP67) undercarri ECCR58: 15.8" (400 mm) wide rubber tracks. [CL 1888: 1787: 17,7" (450 mm) wide rubber tracks. Square number 1888: 17,7" (450 mm) wide rubber tracks. Coll (1888: 17,7" (450 mm) wide rubber tracks. R° 1888: 17,7"(17.7" (45 mm) wide rubber tracks. Dozer track gauge blade. hydraulic system Locked Center, LodSenssensing System. Loadable filtering system (30 μm); Multifiltial filti age F fl fl flection systems (30μ m): Pilot operated joystick hydraulic controls hydraulic controls. Joystick hydraulic controls. Joystick pattern pattern pattern selector clator Clating valve valve valve valve valves. Control picture viewometer Hydraulic system Closed dozer blade closed center, LOD steering blade of load Sensing system and LodSensing Systems. Loadable filter system (30 microma; multifiltiage timeter Age Floke capable filter system HR58:15.8" (400 mm) Undercarwagon ECR58: 35.88" (11.8" (400 mm) wide rubber tracks width rubber tracks.ER1888: 15/8" (140" (400 mm) inch5". 6'33.8" (400 mm) wide Rubber sprox08" (400 mm) sc length. Compar / oil summm) expand anti-length Protective Track guard rail tracks. 17.7" (450 mm) or 23.6" (600 mm) wide. Deluxe vinyl-covered superior comfort seat with high back. Earthwork equipment ECR58: 114" (2900 mm) long monobloc boom. 60.6" (1540 mm) dipper arm. ECR88: 130.8" (35550 mm) long monoblock boom. 66,9" (1700 mm) dipper arm. Safety Level 1 FOPS (Falling Objects Protective Structure). TOPS (Tip-Over Protection Structure), ROPS (Roll Over the Schutzaufbau). Interlock for joystick lever and drive controls - Raise left console unit / Braking System 2-5

Hydraulics

ovement, we r eserve the r ight to change
Ref. Nr. 22 2 432 1188 Printed in PDF 09/09 Volvo, Asheville English

Tables

OutreachStandard counterweightOptional counterweight
5 ft10 ft15 ftMax5 ft10 ft15 ft
1 360'5'1"""Z2--1320 lbf1180 lbf1430 lbf1190 lbf
Z12240 lbf1180 lbf990 lbf2380 lbf1260 lbf1010 lbf
Z37540 lbf2260 lbf1340 lbf6760 lbf2370 lbf-1310 lbf
6'4"""Z2--1320 lbf980 lbf1430 lbf1000 lbf
Z1-2190 lbf1130 lbf820 lbf2330 lbf1220 lbf840 lbf
Z35950 lbf2160 lbf1120 lbf1060 lbf5380 lbf2280 lbf1190 lbf1050 lbf
25'1"""Z2--2230 lbf2190 lbf2230 lbf2190 lbf
Z1-5390 lbf2950 lbf2400 lbf5390 lbf2950 lbf2400 lbf
Z36760 lbf4620 lbf-2470 lbf6760 lbf4620 lbf2470 lbf
6'4"""Z218901660 lbf1890 lbf1650 lbf
Z15200 lbf28302040 lbf5200 lbf2830 lbf2040 lbf
Z35380 lbf4910 lbf26402230 lbf5380 lbf4910 lbf2640 lbf2230 lbf
Fuel tank17.2 US gal (65 ltr)
Hydraulic tank13.2 US gal (50 ltr)
Hydraulic system total"23.8 US gal (90 ltr)
Engine oil3 US gal (11.5 ltr)
Cooling system1.7 US gal (6.5 ltr)
OutreachStandard counterweightOptional counterweight
5 ft10ft15ft20ftMax5 ft10ft15ft20ftMax
1 360'5'1"""Z23020 lbf2400 lbf3020 lbf2580 lbf
Z14990 lbf2670 lbf1630 lbf1560 lbf5370 lbf2890 lbf1780 lbf1710 lbf
Z37860 lbf4720 lbf2450 lbf1940 lbf7850 lbf5090 lbf2660 lbf2110 lbf
6'4"""Z22520 lbf2030 lbf2520 lbf2200 lbf
Z15140 lbf2680 lbf1600 lbf1360 lbf5510 lbf2890 lbf1760 lbf1500 lbf
Z36470 lbf4570 lbf2360 lbf1630 lbf6470 lbf4950 lbf2580 lbf1790 lbf
25'1"""Z23020 lbf3140 lbf3020 lbf3140 lbf
Z17910 lbf4390 lbf3270 lbf3220 lbf7910 lbf4390 lbf3270 lbf3220 lbf
Z37850 lbf7880 lbf4640 lbf3480 lbf7850 lbf7880 lbf4640 lbf3480 lbf
6'4"""Z22520 lbf2520 lbf2520 lbf2520 lbf
Z17220 lbf4020 lbf3050 lbf2540 lbf7220 lbf4020 lbf3050 lbf2540 lbf
Z36470 lbf8300 lbf4740 lbf3150 lbf6470 lbf8300 lbf4740 lbf3150 lbf
Fuel tank29.1 US gal (110 ltr)
Hydraulic tank21.1 US gal (80 ltr)
Hydraulic system total"37 US gal (140 ltr)
Engine oil3 US gal (11.5 ltr)
Cooling system1.9 US gal (7.0 ltr)
Buckets ECR58Capacity
WidthWeight
Standard14"" (350 mm)"187 lbs (85 kg)2.5 ft3 (70 l)
18"" (450 mm)"213 lbs (97 kg)3.5 ft3 (98 l)
24"" (600 mm)"260 lbs (118 kg)5.0 ft3 (142 l)
30"""304 lbs6.6 ft3
(750 mm)(138 kg)(187 l)
35"""359 lbs8.2 ft3
(900 mm)(163 kg)(231 l)
Ditch51"""275 lbs6.2 ft3
(1300 mm)(125 kg)(175 l)
59"" (1500 mm)"407 lbs (185 kg)9.4 ft3 (265 l)
Buckets ECR88
WidthWeightCapacity
15"""282 lbs3.6 ft3
(380 mm)(128 kg)(103 l)
18"" (450 mm)"330 lbs (150 kg)4.6 ft3 (130 l)
Standard24"" (600 mm)"403 lbs (183 kg)6.6 ft3 (188 l)
30"""480 lbs8.7 ft3 (246 l)
(750 mm)(218 kg)
35"""519 lbs10.8 ft3
(900 mm)(236 kg)(306 l)
Ditch59"" (1500 mm)"550 lbs (250 kg)9.4 ft3 (265 l)
GHIJKLMNO
16.5""18.9""76.8""98.4""71.7""78.7""220.5""65.7""14.6"""
(420)(480)(1950)(2500)(1820)(2000)(5600)(1670)(370)
PQRST1UVWX
39.4"""
14.6""15.7""26.4""97.2""77.2""101.6""170.5""78.7""",(1000)
(370)(400)(670)(2470)(1960)(2580)(4330)(2000)41.2"""
(1045)
DipperABCDEF
60.6""220.9""156.3""141.7""114.6""233.9""239.4"""
(1540)(5610)(3970)(3600)(2910)(5940)(6080)
76.4""230.3""165.7""157.5""",128.3”,"248.8""254.3"""
(1940)(5850)(4210)(4000)(3260)(6320)(6460)
DipperABCDEF
66.9""265.4""191.3""164.2""113.8""270.1""276"""
(1700)(6740)(4860)(4170)(2890)(6860)(7010)
82.7""275.6""201.6""179.9""128.3""285""290.9"""
(2100)(7000)(5120)(4570)(3260)(7240)(7390)
PQRST1UVWX
47.6"""
18.5""17.7""29.7""101.2""80.3""105.5""207.1""89.2""",(1210)
(470)(450)(755)(2570)(2040)(2680)(5260)(2265)50.6"""
(1285)
GHIJKLMNO
19.3""15.7""86.6""112.2""76.4""90.6""252.4""70.1""15.4"""
(490)(400)(2200)(2850)(1940)(2300)(6410)(1780)(390)
