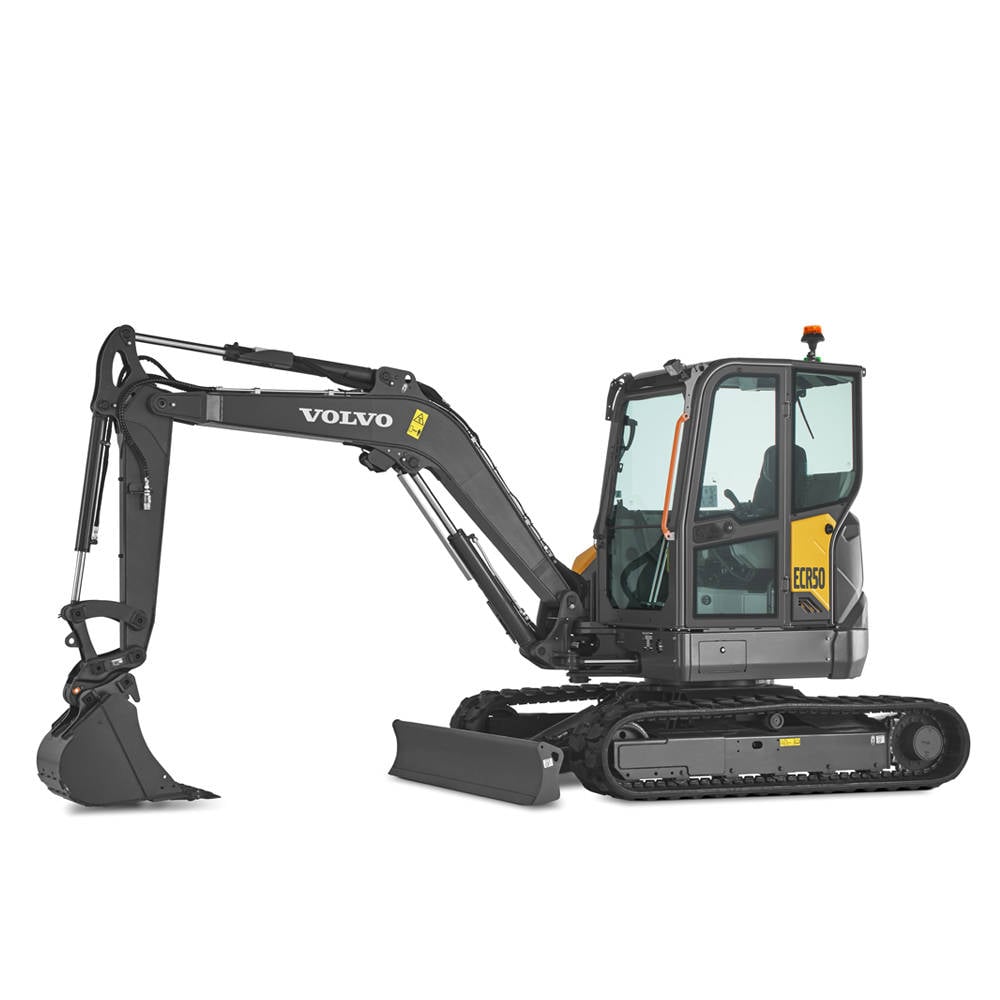

ECR50 Volvo excavator specs & dimensions (2021 - 2026)

True 5 t performer
Take tough work with confidence and control. With the best lift capacity in class, the F-generation ECR50 is a genuine 5 t machine. Excellent stability and hydraulic performance contribute to unrivalled digging power, lifting force and tractive effort.
Switch it up
Changing between hydraulic attachments is as easy as a child's play. In the new ECR50, you can pre-programme the hydraulic settings that are best suited to all your attachments in just a few steps. Afterwards, you can choose whether operators select only predetermined settings or leave it free for operators to make a final hydraulic adjustment from the cab.
Versatile performer
True 5 tonne machine, stability and hydraulic performance, pre-set hydraulic modes and multiple auxiliary line options, Compatible with a variety of attachments.
STANDARD EQUIPMENT Engine Drivetrain Electric / Electronic control system Swing system Undercarriage Hydraulic system
In Volvo 4-cylinder, vertical, inline, electronically controlled, diesel engine; meets EU Stage V or EPA Tier 4f environmental regulations. Diesel oxidation catalyst and diesel particulate filter exhaust system according to treatment system with 6000 hours service interval. Engine restart pre-bugging system: Starter motor is protected against ignition when the engine is already running. Safe engine starting function: The left console must be raised to operate the starter. Time adjustable autoidling system. Eco mode. Dry type dual element air filter. Plastic fuel tank with drain plug. Protective screen on power supply tube. Fuel filter with water separator. Axial piston hydraulic motors equipped with an epicyclic reduction gear. Automatic twospeed. Multidisc track brakes, spring bolted and hydraulic released. 5 ground flange rollers lubricated for life. Lubricating wheel lockout lubricated for lifetime. Maintenance free battery. IP67 Protected electrical system and high quality connectors. Battery cut switch in key area. In-cabable linkage 12V seat belt mounted retractable armrest (integrated) Anti-locking valve oil sealers are available as well as follows all types of automatic anti-skidged front side brake control valves
STANDARD EQUIPMENT Digging equipment Instrumentation and monitoring Machine control system Official approval
FOPS meets top level 1 (Falling Object Protect the structure). TOPS (Tip-Over Protective Structure), ROPS (Roll Override Guard) up to RoPS (Roll Wearover Protective Structure); Cusioned Operator Station. Height Adjustable Seat, Consoles and Joysticks; all suspended together. Retractable 50mm orange seat belt with warning indicator. High Visibility Visible Orange Handrail and Cab Entry Step Up. Large Door Access. Large and spacious uncluttered floor with easy cleaning floor mat easily clean. Gas strut assisted front window opening. Fully opened front gear with in-cab storage for forward lower window. Predisc wiper stripping and washer system. Right side sliding window. Heater System. Several customizable air ventilation systems. Filtered air intake with large size and easy to replace element. Driver interior lighting inside light at inner light. LCD lockout bearing. Large capacity enclosed key keys closed out of the tool box closes a large number of locks on the front control panel: Monostagram is completed by means of full powershift changes.

Maximum uptime
Spend less time performing maintenance work. A 50 hour greasing interval, easy-to-reach service points and wide opening bonnet help keep uptime to a maximum. Unworked hours are not recorded with auto engine shutdown, keeping your machine longer efficient while lowering maintenance costs. The patented multifunction hydraulic oil filter provides outstanding protection for the hydraulic system.
Maximum uptime
50 hour greasing intervals, Patented multifunction hydraulic filter, Hydraulic system protection, Easy-to-reach service points, wide opening bonnet, auto engine shutdown, Genuine Volvo Parts

Durable by design
The F-generation ECR50 zero tail swing radius allows easy access and work in confined spaces, while reducing the risk of machine damage. The in-track boom oscillation ensures that swing posts and cylinders remain within track width when digging in offset alongside obstacles. Rugged dig attachments, undercarriage and hoods add to outstanding durability.
Durable by design
Zero tail swing, in-track boom swing, New digging equipment, undercarriage and hoods of larger machine.

Small machines, big results
With decades of experience in the design and manufacture of compact excavators and wheel loaders, our range of compact machines with customer success is designed. Built from the same DNA as large Volvo machines, our compact range sets the standard for efficiency performance and uptime complemented by an extensive range of Volvo attachments for maximum versatility. Building on our proud history, The Volvo Concept Lab continues to create state-of-the-art ideas and innovative concepts such as our award winning electric compact excavators ensuring that we provide our customers with machines that deliver great results long into the future.
Solutions for you
Our industry leading machines are just the beginning of your relationship with Volvo. As your partner, we have developed an extensive range of additional solutions to help you improve uptime, increase productivity and lower costs.
Designed for your business
Our nine-block portfolio of products and services has been designed to complement the performance of your machine and boost your profitability. Simply put, we offer some of the best warranties, warranties and technological solutions in today's industry.

Intuitively efficient
Quick and easy to handle with the new ECR50. With the intuitive jogwheel and 5 colour display, operators benefit from easy-to-navigate menus. Thanks to proportional fingertip controls, large and simple travel pedals as well as automatic two-speed travel operation, you can achieve precise and efficient working.
Intuitively efficient
Simple operator arrangement, Intuitive jogwheel and 5 colour display, Proportional fingertip controls, Large travel pedals, Automatic two-speed travel.
