ECR48C Volvo excavator specs & dimensions (2007 - 2016)

Volvo ECR48C is a mini excavator manufactured from 2007 to 2016, with a weight of 4.85 tons. It features a track width of 400 mm a…

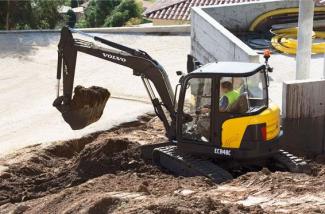

Volvo ECR48C is a mini excavator manufactured from 2007 to 2016, with a weight of 4.85 tons. It features a track width of 400 mm and has transport dimensions of 4.9 meters in length, 1.96 meters in width, and 2.51 meters in height. The excavator has a dredging depth of 4 meters and a bucket width of 0.45 meters, with a bucket capacity ranging from 0.07 to 0.265 cubic meters. It is equipped with a blade and rubber tracks.

Mini Excavators Volvo ECR48C

Visit Volvo live at

Technical specs - ECR48C Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.85 t
Transport length
4.9 m
Transport width
1.96 m
Transport height
2.51 m
Bucket capacity min.
0.070 m³
Bucket capacity max.
0.265 m³
Bucket width
0.45 m
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
6.18 m
Dredging depth
4 m
Tear-out force
34.2 kN
Model series
ECR
Engine manuf.
Volvo
Engine type
D 2.2 D
Engine power
27.1 kW
Displacement
2.2 l
Revolutions at max torque
1400 rpm

More technical details, like: bucket capacity, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo ECR48C FAQ

When was the Volvo ECR48C manufactured?

The Volvo ECR48C was manufactured from 2007 to 2016.

How much does the Volvo ECR48C weigh?

The Volvo ECR48C weighs 4.85 tons.

What are the transport dimensions of the Volvo ECR48C mini excavator?

The Volvo ECR48C has a transport length of 4.9 meters, a width of 1.96 meters, and a height of 2.51 meters.

What is the track width of the Volvo ECR48C mini excavator's undercarriage?

The Volvo ECR48C mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Volvo ECR48C mini excavator?

The Volvo ECR48C mini excavator has a dredging depth of 4 meters and a maximum horizontal reach of 6.18 meters.

What are the power ratings of the Volvo ECR48C mini excavator?

There are no power rating specifications available for the Volvo ECR48C mini excavator in the provided data.

What are the bucket specifications of the Volvo ECR48C mini excavator?

The Volvo ECR48C mini excavator has a bucket with a maximum capacity of 0.27 cubic meters, a minimum capacity of 0.07 cubic meters, and a width of 0.45 meters.

What operator safety features does the Volvo ECR48C have?

The Volvo ECR48C has a cabin for driver protection.

How much is a Volvo ECR48C Mini excavator (2007u20132016) worth?

The residual value of the Volvo ECR48C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
