    Volvo ECR40D excavator specs (2016 - 2018)

    Rate this machine now!

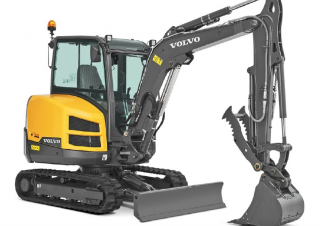

    Manufactured by Volvo, this is the ECR 40 D mini excavator. Find and download detailed specs and data sheets for this machine here... Read more

    Manufactured by Volvo, this is the ECR 40 D mini excavator. Find and download detailed specs and data sheets for this machine here.

    Equipped with a powerful Volvo engine, this ECR 40 D 3.4t machine can provide 22.8kW or 30 horse power for the mini excavator. This Volvo mini excavator belongs to the biggest machine segment in the mini excavators category. The model's dimensions are 4.64m x 1.78m x 2.44m. The bucket of ECR 40 D has a capacity of 0.09m³ which is average for this type of machine.

    The ECR 40 D is manufactured and distributed with Rubber track and Blade. It does not include Track adaption, Aircondition and Quick hitch hydr.. There are more detailed specifications and machine descriptions available in the original Volvo ECR 40 D specs data sheet. Available in French, Polish, Italian, Spanish, English and German, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

    At present, 10 other mini excavators, which range from 1.6t up to 5.7t are produced by Volvo. Of these, EC 55 C, ECR 25 D and also ECR 50 D are the most frequently visited on LECTURA Specs. Ranked in the LECTURA index at #249, this ECR 40 D mini excavator has models that date from 2016 to 2017. Want more detailed specifications? Download the latest Volvo ECR 40 D specs data sheet on LECTURA Specs today!

    Technical specs - ECR40D Volvo

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Weight 3.4 t
    Transport length 4.64 m
    Transport width 1.78 m
    Transport height 2.44 m
    Bucket capacity 0.09 m³
    Bucket width 0.5 m
    Track width 300 mm
    Driver protection Kb
    Max. Reach horizontal 5,8 m
    Dredging depth 3,431 m
    Tear-out force 28,75 kN
    Engine manuf. Volvo
    Engine type D 1.8 A
    Engine power 22.8 kW
    Displacement 1.83 l
    Revolutions at max torque 2200 rpm
    No. of cylinders 3
    Cylinder bore x stroke 87/102.4 mm
    Bucket capacity min. ###
    Bucket capacity max. ###
    Standard tyres ###
    Engine power ###
    Dimension lxwxh ###
    Max. torque ###
    Weight ###
    Emission level ###

    Basic model with standard bucket

    ECR40D Volvo - Special equipment

    • Track adjustment
    • Rubber track
    • Blade
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.
